MAX491 RS485/RS422 Transceiver | MAX491CSD/MAX491ESD SOIC-14

The MAX491/MAX491CSD/MAX491ESD is a low-power, high-speed RS485/RS422 transceiver designed for robust differential data communication. Featuring one driver and one receiver, this IC provides reliable bidirectional data transfer over long distances and noisy environments—ideal for industrial automation, networking, security systems, and multi-drop communication buses.

Housed in a SOIC-14 package, the MAX491 supports half-duplex operation with low power consumption, high ESD protection, and excellent noise immunity. It fully complies with RS485 and RS422 electrical specifications, enabling long-line communication up to 250 kbps+ depending on bus configuration.

Features / Specifications

• Model: MAX491 / MAX491CSD / MAX491ESD

• Package: SOIC-14

• Communication Standard: RS485 / RS422

• Transceiver Type: 1 Driver + 1 Receiver

• Operating Voltage: 5V

• Low-Power Operation

• Allows up to 32 Transceivers on the Bus

• Thermal Shutdown & Short-Circuit Protection

• Fail-Safe Receiver Input

• High ESD Protection (device-dependent)

• Typical Data Rate: ~250 kbps+ (depending on bus & cable)

• Compatible with MAX489 / MAX490 series

• Applications:

  • Industrial RS485 Networks

  • RS422 Communication Links

  • Security & Access Control Systems

  • Automation & Motor Control

  • Long-distance data communication

  • Multi-drop bus systems

Package Includes:
1 x MAX491 / MAX491CSD / MAX491ESD – SOIC-14 RS485/RS422 Transceiver

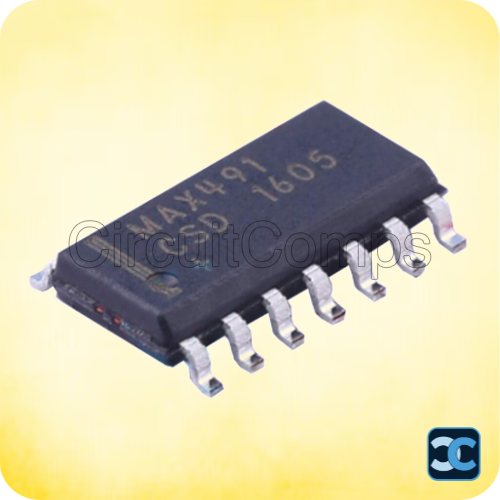

Note: Product image is for representation purposes only.
