MBR20100CT TO-220 Dual 10A 100V Schottky Rectifier – 20A Common Cathode

Product Description:

The MBR20100CT Schottky Rectifier in the TO-220 package is a high-current, high-efficiency dual diode module designed for power supplies, inverters, chargers, and high-performance DC–DC converters. The device integrates two 10A Schottky diodes in a common-cathode configuration, delivering a combined capability of 20A with a 100V reverse voltage rating.

Schottky barrier technology ensures ultra-low forward voltage drop, reduced heat generation, and excellent switching efficiency—making the MBR20100CT ideal for high-current, low-voltage rectification. The TO-220 package provides superior heat dissipation for continuous heavy-load operation.

Key Specifications:

• Diode Type: Dual Schottky Rectifier (Common Cathode)

• Model: MBR20100CT

• Package: TO-220

• Forward Current: 2 × 10A (20A total capability)

• Reverse Voltage (VRRM): 100V

• Forward Voltage Drop: Ultra-low

• Configuration: Dual diode, common cathode

• Switching Speed: Very fast

• Mounting Type: Through-hole

• Thermal Performance: Excellent for power applications

Features:

• Dual 10A Schottky diodes in a single TO-220 package

• Ultra-low forward voltage for maximum efficiency

• Fast switching for high-frequency supplies

• High current capability ideal for power electronics

• Strong heat dissipation with TO-220 casing

• Reliable long-term performance in demanding circuits

Applications:

• High-current DC–DC converters

• Switch mode power supplies (SMPS)

• Battery chargers and power banks

• Solar inverters and charge controllers

• Automotive and industrial power systems

• Low-voltage, high-efficiency rectification

Package Includes:

1 × MBR20100CT TO-220 Dual 10A 100V Schottky Rectifier

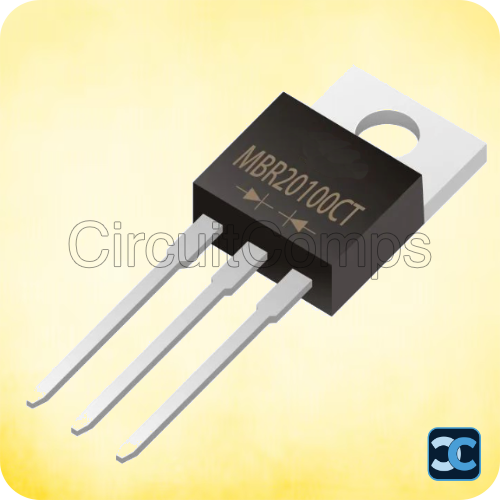

Note: Image is for representation purpose only.
