RV4056 Standalone Lithium-Ion Battery Charger IC – SOP-8 – TP4056 Alternate

The RV4056 Standalone Lithium-Ion Battery Charger IC is a complete constant-current/constant-voltage linear charger designed for single-cell Li-ion batteries. Packaged in a compact SOP-8, it requires minimal external components, making it ideal for portable and USB-powered charging applications. This IC supports USB or wall adapter input, enabling flexible integration across various battery-powered devices.

With a programmable charge current up to 1A, preset 4.2V charge voltage, and a 2.9V trickle charge threshold, the RV4056 ensures safe and efficient charging. Its internal PMOSFET architecture eliminates the need for blocking diodes, preventing reverse current flow. The built-in thermal regulation loop moderates charge current to maintain safe operating temperatures during high-power or high-temperature conditions.

The RV4056 also features automatic recharge, under-voltage lockout, current monitoring, and status indication pins for input presence and charge termination. It is widely used as a reliable alternative to the TP4056 in Li-ion charging circuits.

Key Specifications:

• Part Number: RV4056

• Package: SOP-8

• Battery Type: Single-cell Li-ion

• Max Charge Current: 1A

• Charge Voltage: 4.2V

• Programmable Charge Current

• Trickle Charge Threshold: 2.9V

• Input Voltage: 0.3V to 8V (≥5V for charging)

• Constant-Current/Constant-Voltage Charging

• Automatic Recharge & UVLO Protection

• BAT Short-Circuit Protection

Package Includes:
1 x RV4056 Standalone Lithium-Ion Battery Charger IC

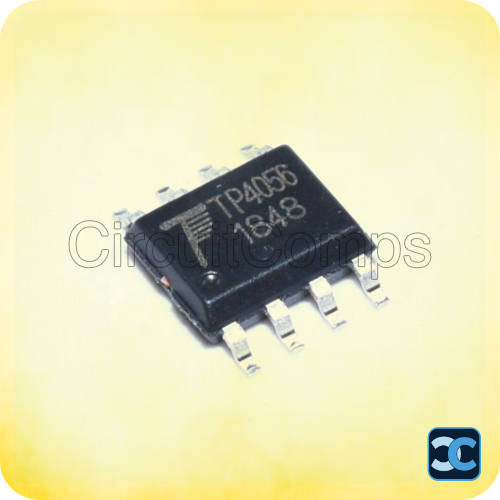

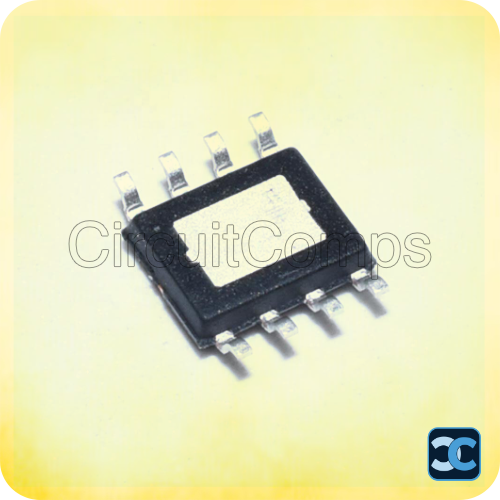

Note: Image is for representation purpose only.
