- SI2305 (A5SHB) – 8V P-Channel MOSFET – SOT-23 – ±3.5A – Low Voltage Load Switch Transistor SI2305 (A5SHB) – 8V P-Channel MOSFET – SOT-23 – ±3.5A – Low Voltage Load Switch Transistor
SI2305 (A5SHB) – 8V P-Channel MOSFET – SOT-23 – ±3.5A – Low Voltage Load Switch Transistor
- Description
- Reviews
The SI2305 (A5SHB) is a low-voltage P-channel MOSFET designed for efficient power control and load switching in compact electronic circuits. Housed in a space-saving SOT-23 SMD package, it supports a drain-source voltage of 8V and a continuous drain current of up to ±3.5A, making it well suited for battery-powered and low-voltage applications.
This MOSFET features a ±8V gate-source voltage rating and low RDS(on), ensuring minimal conduction losses and improved efficiency. With a maximum power dissipation of 1.25W at 25°C, it delivers reliable thermal performance in high-density PCB layouts. The SI2305 is commonly used in load switches, DC-DC converters, portable electronics, power management circuits, and general-purpose low-voltage switching applications where size, efficiency, and reliability are critical.
Package Includes:
1 x SI2305 (A5SHB) P-Channel MOSFET 8V ±3.5A SOT-23

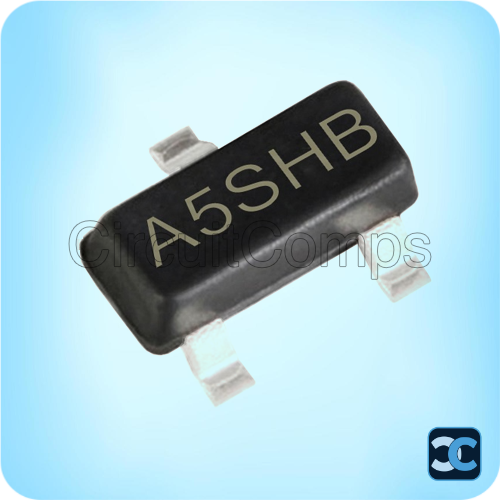

Note: Image is for representation purpose only.
