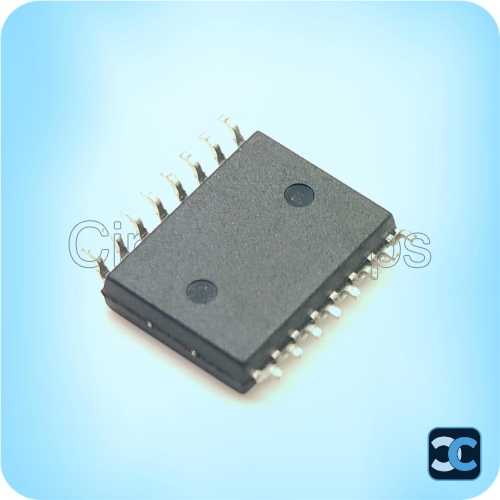

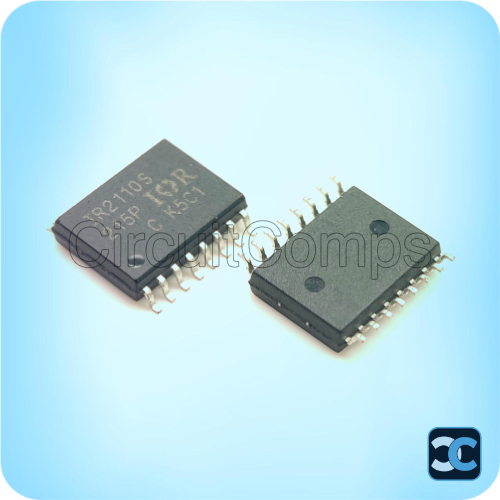

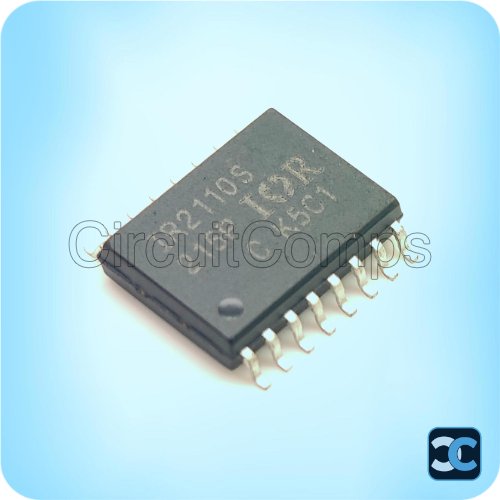

IR2110 High Low Side Driver IC SMD-16 MOSFET IGBT Driver

The IR2110 is a high-voltage, high-speed gate driver IC designed for driving both high-side and low-side MOSFETs and IGBTs in half-bridge configurations. Housed in an SMD-16 package, it supports output voltages up to 500V, making it suitable for motor control, inverters, and SMPS applications.

This IC features independent high and low-side output channels with bootstrap operation for efficient high-side driving. It operates with a gate drive supply voltage range of 10V to 20V and supports logic-level inputs down to 3.3V, ensuring compatibility with modern microcontrollers.

With built-in undervoltage lockout (UVLO) protection for both channels, the IR2110 ensures safe and reliable operation in high-power applications. It is widely used in power electronics, industrial systems, and energy conversion circuits.

Package Includes:
1 x IR2110 High Low Side Driver IC SMD-16 MOSFET IGBT Driver

Note: Image is for representation purpose only.
