SMF05.TCT TVS Diode Array – 5V Unidirectional ESD Protection (SC70-5L)

Product Description:
The SMF05.TCT TVS Diode Array is a compact, high-performance protection device designed to safeguard sensitive electronic components against electrostatic discharge (ESD), electrical fast transients (EFT), lightning-induced surges, and latch-up events. With a unidirectional configuration, this diode array ensures reliable protection for circuits operating at 5V.

Housed in the ultra-small SC70-5L SMD package, the SMF05.TCT offers low clamping voltage, fast response time, and excellent transient handling capability. It clamps surge voltages to safe levels, preventing damage to downstream components in portable electronics, communication devices, IoT modules, and consumer electronics.

Designed for high-speed interfaces and low-power circuitry, this TVS diode array provides robust transient protection while maintaining minimal capacitance, making it suitable for protecting data lines, signal interfaces, and power rails in compact circuit designs.

Key Specifications:

• Diode Configuration: Unidirectional

• Stand-off Voltage (V_RWM): 5V

• Clamping Voltage: ~9.5V @ 1A

• Peak Pulse Current (I_PP): 12A (8/20 μs waveform)

• Capacitance: 150pF

• Package: SC70-5L (SMD/SMT)

• Mounting Type: Surface Mount

• Weight: 0.07g

Features:

• Unidirectional ESD and transient voltage protection

• Fast response time for sensitive electronics

• Low clamping voltage to reduce voltage overshoot

• Compact SC70-5L package for space-saving designs

• Ideal for protecting high-speed data and signal lines

• RoHS compliant and environmentally safe

• Reliable protection against ESD, EFT, and surge pulses

Applications:

• Portable electronics and IoT devices

• Telecommunication equipment

• Consumer electronics

• USB, power rails, and signal line protection

• Microcontroller and sensor interface protection

• Automotive and industrial control systems

Package Includes:
1 × SMF05.TCT TVS Diode Array (SC70-5L)

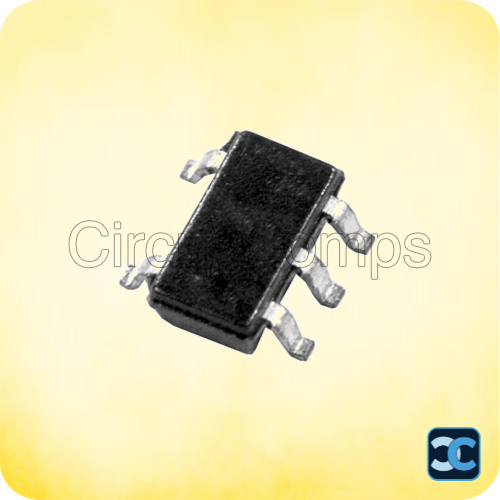

Note: Image is for representation purpose only.
