SN74HC125N – 2V to 6V Quad Buffer with 3-State Outputs – DIP-14 – Texas Instruments

✅ Product Description:
SN74HC125N – 2V to 6V Quad Buffer with 3-State Outputs – DIP-14 – Texas Instruments

The SN74HC125N from Texas Instruments is a quad buffer with 3-state outputs designed for use in a variety of digital logic applications. Operating within a voltage range of 2V to 6V, this buffer IC is suitable for driving signals and improving signal integrity in microcontroller and logic circuits.

Packaged in a robust DIP-14 format with 14 pins, the SN74HC125N offers easy integration into through-hole PCB designs, making it ideal for prototyping and production environments alike.

Key Features:

• Manufacturer: Texas Instruments

• Logic Type: Quad Buffer with 3-State Outputs

• Package: DIP-14 (Through-Hole)

• Pin Count: 14 Pins

• Voltage Range: 2V to 6V

Applications:

• Digital signal buffering

• Logic level shifting

• Microcontroller interface expansion

• Bus driving and isolation

Technical Identifiers:
Part Number: SN74HC125N
Manufacturer: Texas Instruments

Package Includes:
1 x SN74HC125N – Quad Buffer IC (DIP-14 Package)

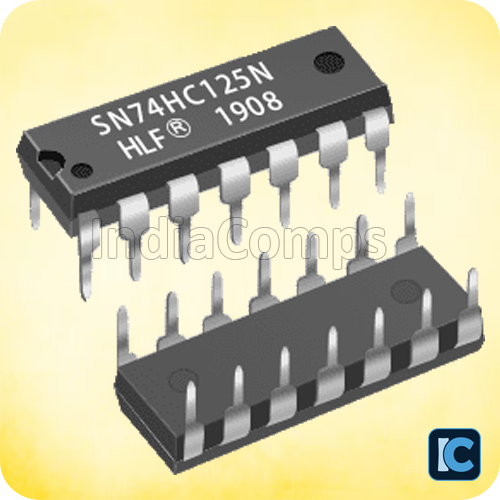

🖼️ Note: Image is for representation purpose only.
