SRV05-4 ESD Protection Array Diode – 4-Line TVS Array – SOT-23-6

Product Description:
The SRV05-4 ESD Protection Array Diode is a compact, multi-line transient protection solution designed for safeguarding high-speed data interfaces. Featuring eight surge-rated low-capacitance steering diodes and an integrated TVS diode, it provides robust ESD and surge protection for up to four I/O lines, making it ideal for USB 2.0, FireWire, DVI, HDMI, Ethernet, and other high-frequency differential lines.

With a 5V reverse stand-off voltage, 6V breakdown voltage, and clamping voltage between 12.5V–17V, the SRV05-4 ensures effective suppression of transient spikes. Its low capacitance rating of 3pF–5pF maintains signal integrity up to 1GHz with minimal insertion loss. The device meets IEC 61000-4-2 ESD immunity standards up to ±15kV (air) and ±8kV (contact), providing industry-standard protection in a compact SOT-23-6L package.

Specifications:

• Reverse Stand-Off Voltage: 5V (max)

• Reverse Breakdown Voltage: 6V

• Clamping Voltage: 12.5V–17V

• Junction Capacitance: 3pF–5pF

• Peak Pulse Current: 12A

• ESD Protection: IEC 61000-4-2 ±15kV (air), ±8kV (contact)

• Package: SOT-23-6L (JEDEC)

• Weight: 0.05 g

Features:

• Protects up to four high-speed data lines

• Integrated surge-rated steering diodes + TVS diode

• Very low capacitance for high-speed signal integrity

• Minimal insertion loss up to 1GHz

• Supports IEC standards: ESD, EFT, and lightning

• Low clamping voltage and fast transient response

• Compact SOT-23-6L package conserves PCB space

Package Includes:
1 × SRV05-4 ESD Protection Array Diode

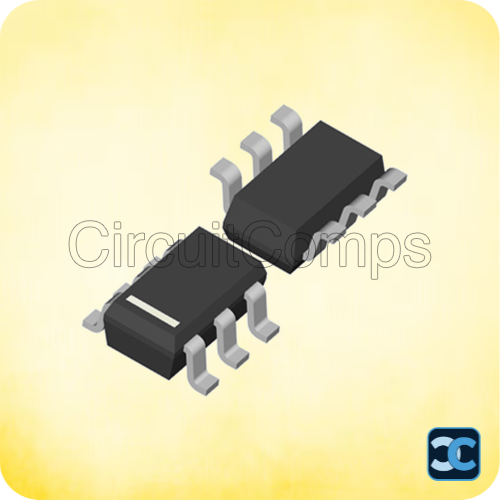

Note: Image is for representation purpose only.
