STMicroelectronics STM8S005K6T6C 8-Bit Microcontroller | 32KB Flash | LQFP-32 | 16MHz

The STMicroelectronics STM8S005K6T6C is a high-performance, cost-efficient 8-bit microcontroller from the STM8S Value Line, designed for reliable operation in a wide range of embedded and industrial applications. It features a powerful 16 MHz STM8 core, 32 KB Flash memory, 2 KB SRAM, and 128 bytes of true EEPROM for long-term data storage.

With an operating voltage range of 2.95V to 5.5V and a temperature range of -40°C to +85°C, this MCU ensures dependable performance in demanding environments. The device integrates 25 programmable I/Os, a 10-bit ADC with 7 channels, and multiple communication interfaces including I²C, SPI, UART/USART, LINbus, and IrDA, enabling flexible system connectivity.

Advanced on-chip peripherals such as independent watchdogs, brown-out reset, and a clock security system enhance system stability. Its integrated 16-bit and 8-bit timers support precise motor control, real-time operations, and sensor interfacing, making it suitable for compact and energy-efficient designs.

Typical applications include consumer appliances, IoT devices, industrial automation, sensor modules, and other cost-effective embedded solutions.

Package Includes: 1 x STMicroelectronics STM8S005K6T6C

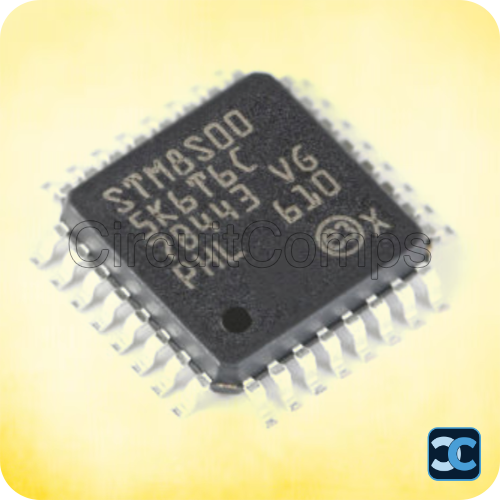

Note: Image is for representation purposes only.
