Green LED 3mm Through Hole Diffused

The Everlight 204-10SYGC/S530-E2 is a yellow-green 3mm through-hole LED for PCB status indicators, control panels, and DIY electronics. Its compact T-1 round package, water-clear convex lens, and standard 2.54mm lead spacing make it easy to integrate into circuit boards and breadboard prototypes.

Designed for low-power indication, this Everlight Electronics component combines efficient illumination with rugged solid-state construction for professional assemblies and hobby projects, including robotics and embedded systems.

Key Specifications

• Manufacturer: Everlight Electronics
• Manufacturer Part No.: 204-10SYGC/S530-E2
• Device Type: Indicator LED
• Package: T-1, 3mm round
• Mounting Type: Through-hole (THT)
• Emitted Color: Yellow-green (Parrot Green)
• Wavelength: Approximately 573nm
• Forward Voltage: 1.7–2.4V DC
• Recommended Forward Current: 20mA
• Maximum Power Dissipation: 60mW
• Lens: Water clear, convex bulb
• Viewing Angle: 30°
• Terminal Pitch: 2.54mm (0.1 inch)
• Compliance: RoHS compliant, lead-free

Polarity & Installation Notes

• Polarity Identification: The longer lead is the anode (+). The shorter lead, next to the flat side of the epoxy base, is the cathode (−).
• Lead Bending: Make bends at least 3mm away from the epoxy bulb base to avoid mechanical stress and damage to the internal die.
• Current Limiting: Always use a correctly rated series resistor to regulate forward current around 20mA. Do not connect the LED directly across a supply without current limiting.
• Power Limit: Keep power dissipation within the 60mW maximum rating. Excessive current or power can damage the LED and shorten its service life.

Applications

• Status Indicators: Power and signal indication in consumer electronics, appliances, and dashboards.
• Custom PCB Assembly: Compact indicator lighting for circuit boards and electronic assemblies.
• Industrial Control Panels: Visual status indication in commercial equipment and control interfaces.
• DIY Electronics & Prototyping: Breadboard experiments, hardware development, robotics, and embedded-system projects.

Package Includes

1 x Everlight 204-10SYGC/S530-E2 Yellow-Green 3mm Through-Hole LED

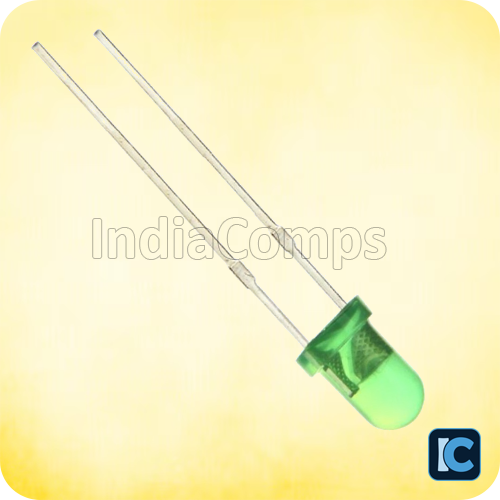

Note: Image is for representation purpose only.
