12%

HYDZ

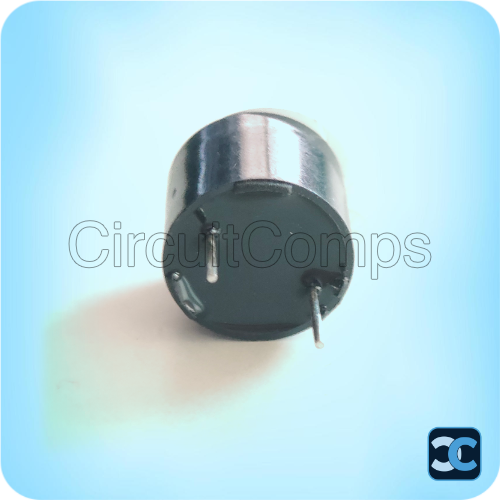

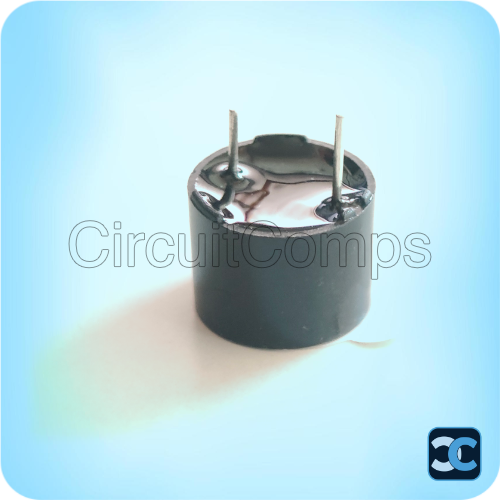

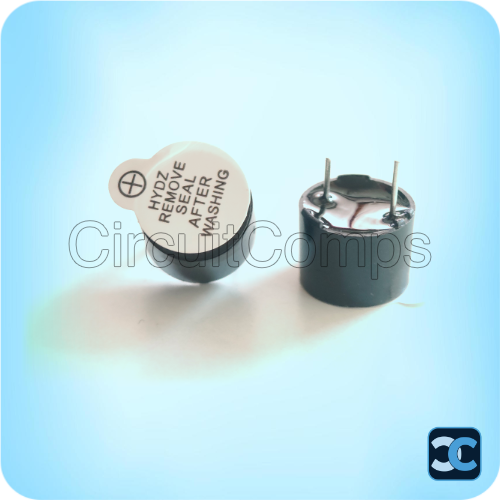

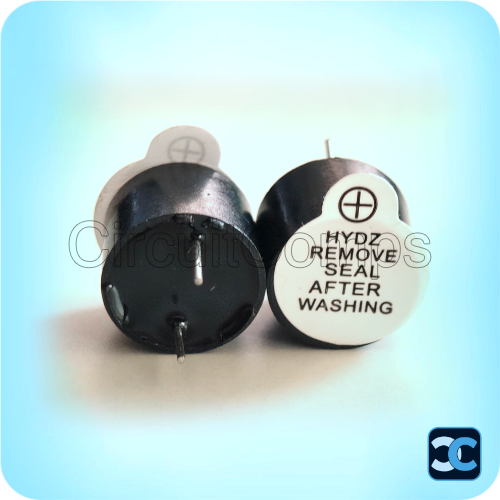

5V Buzzer 12mm HYDZ PCB Mount 85dB

Name: Buy 5V Buzzer 12mm HYDZ PCB Mount 85dB Active Buzzer Online India
Brand: HYDZ
SKU: CC-000617
Price: 8.85 INR
Availability: InStock

Product SKU: CC-000617

Available:

Only 64 items in stock

64 items in stock

In stock

Pre-order

Out of stock

Manufacturer Part No.

CC-000617
Brand

HYDZ
Device Type

Active Buzzer (PCB Mount)
Type

Active Buzzer (internal driver circuit)
Operating Voltage

4.5V – 5V DC
Operating Current

~50 mA
Sound Output

85 dB
Oscillation Frequency

~2.3 kHz
Diameter

12 mm
Mounting Type

Through-Hole (PCB Mount)
Approximate Weight

3 g
Country of Origin

China
Operating Function

Generates audible alert tones when DC voltage is applied, using internal oscillator circuit
Applications

Alarms, timers, notification systems, embedded projects, DIY electronics, Arduino, microcontroller-based alert systems
Suitable For

Breadboards, prototype PCBs, and production PCB designs
Features

Internal driver circuit (no external AC signal required), compact 12mm body, loud 85dB output, through-hole PCB mount
Function

Provides audible indication and alert tones in electronic circuits with simple DC voltage drive
Electrical Characteristics

4.5–5V DC, ~50mA, 85dB, ~2.3kHz oscillation

Rs. 8.85

~~Rs. 10.00~~

Description
Specifications
Reviews

The 5V 12mm HYDZ Buzzer is a compact PCB-mount through-hole active buzzer designed for audible alerts and indication in electronic circuits. Operating at 4.5V to 5V DC with approximately 50mA current consumption, it delivers a loud 85dB sound output at approximately 2.3kHz oscillation frequency.

Featuring an internal driver circuit, this active buzzer requires only a DC voltage to operate — no external AC signal or oscillator is needed. Its compact 12mm form factor makes it easy to integrate into breadboards, DIY projects, and production PCB designs for alarms, timers, notification systems, and embedded applications.

Key Specifications

Brand: HYDZ
Type: Active Buzzer (internal driver)
Operating Voltage: 4.5V – 5V DC
Operating Current: ~50 mA
Sound Output: 85 dB
Oscillation Frequency: ~2.3 kHz
Diameter: 12 mm
Mounting Type: Through-Hole (PCB Mount)
Approximate Weight: 3 g

Package Includes

1 x 5V Buzzer 12mm HYDZ PCB Mount 85dB

Note: Image is for representation purpose only.
