CD4047BM96 CMOS Monostable/Astable Multivibrator IC – SOIC-14 – Texas Instruments

The CD4047BM96 CMOS Monostable/Astable Multivibrator IC from Texas Instruments is a high-stability, low-power timing IC designed for both monostable and astable operations. With a wide operating voltage range of 3V to 15Vand a typical supply current of 1mA, this IC is ideal for pulse generation, oscillator circuits, timing control, and frequency division applications.

This device supports positive and negative edge triggering, providing design flexibility for various digital and analog circuits. Built using CMOS technology, it ensures reliable performance across an extended temperature range of -55°C to +125°C, making it suitable for industrial-grade designs. The compact SOIC-14 package enables easy integration into modern PCBs.

Key Specifications:

• Part Number: CD4047BM96

• Package: SOIC-14

• Operating Modes: Monostable & Astable

• Supply Voltage: 3V to 15V

• Supply Current: 1mA (typical)

• Edge Triggering: Positive & Negative

• Output Drive: 10mA at VDD = 10V

• Temperature Range: –55°C to +125°C

Package Includes:
1 x CD4047BM96 CMOS Monostable/Astable Multivibrator IC

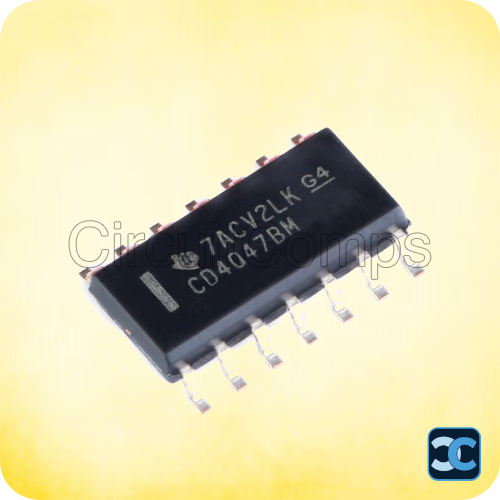

Note: Image is for representation purpose only.
