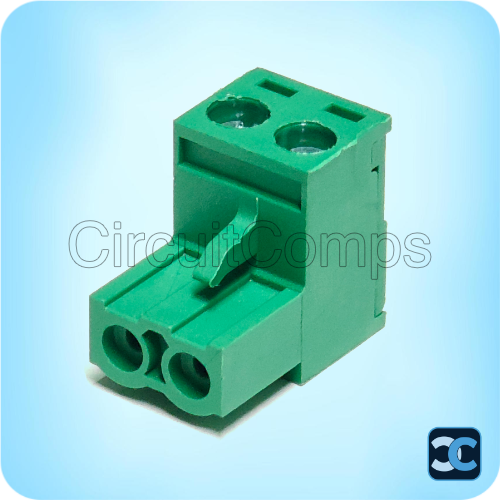

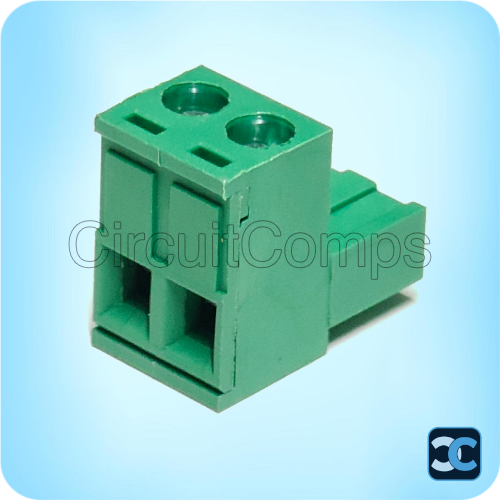

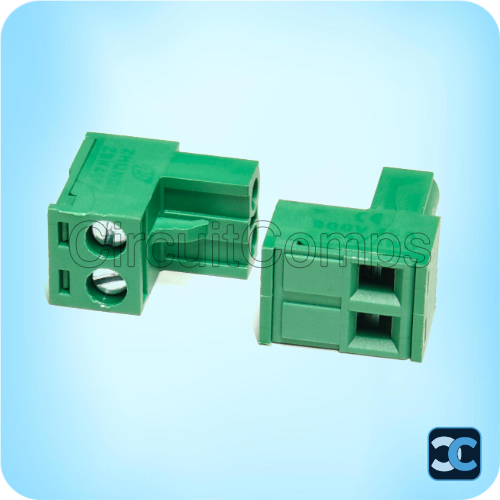

Xinya XY2500 2 Pin 5.08mm Female Right Angle Pluggable Terminal

The Xinya XY2500 2 Pin Female Right Angle Pluggable Terminal is a reliable wire-to-board connector designed for secure and convenient PCB connections. With a standard 5.08mm pitch and a current rating of 12A at 250V AC, it is suitable for industrial electronics, control systems, and power distribution circuits.

This right-angle pluggable terminal features a screw-clamp mechanism that securely holds wires up to 2.5mm², ensuring strong electrical contact and easy installation. Its design allows quick connection and disconnection from compatible XY2500 male terminals, making it ideal for applications where the PCB is mounted inside an enclosure but wiring access is required externally.

Manufactured by Xinya, this connector offers high durability, reliable conductivity, and stable performance in demanding electronic environments.

Key Specifications:
Series: XY2500
Pins: 2
Pitch: 5.08mm
Orientation: Right Angle (R/A)
Type: Female Pluggable Terminal
Current Rating: 12A @ 250V AC
Supported Wire Size: Up to 2.5mm²
Mounting Type: Wire Connector (Mates with PCB Male Terminal)
Manufacturer: Xinya

Package Includes:
1 x Xinya XY2500 2 Pin 5.08mm Female Right Angle Pluggable Terminal

Note: Image is for representation purpose only.
