HY951180A - Hanrun - RJ45 Vertical - Ethernet Transformer

HY951180A - Datasheet

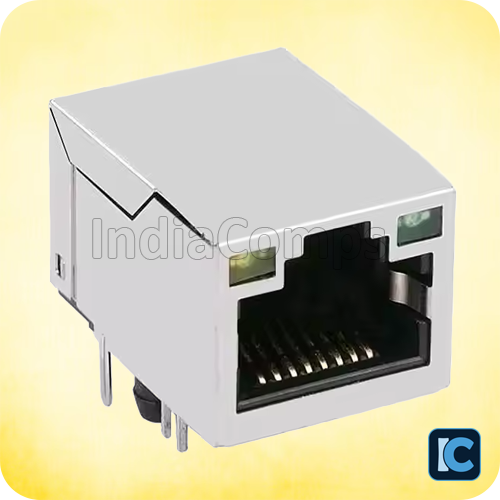

The Hanrun HY951180A RJ45 connector is a high-quality Ethernet jack with integrated magnetics, designed for reliable network communication in embedded systems. It is fully compatible with popular Ethernet modules such as ENC28J60 and W5100, making it ideal for IoT, networking, and microcontroller-based applications.

Compliant with IEEE 802.3 and 802.3ab standards, this connector provides stable data transmission with excellent electrical isolation of up to 1500Vrms. It features high EMI suppression performance, ensuring clean signal integrity in noisy environments. With an inductance of 350µH at 8mA bias current, it delivers consistent performance for Ethernet connectivity.

The durable construction and through-hole mounting make it suitable for both prototyping and production-level PCB designs requiring robust and long-lasting Ethernet connections.

Package Includes:
1 x Hanrun HY951180A RJ45 Ethernet Connector with Magnetics

Note: Image is for representation purpose only.
