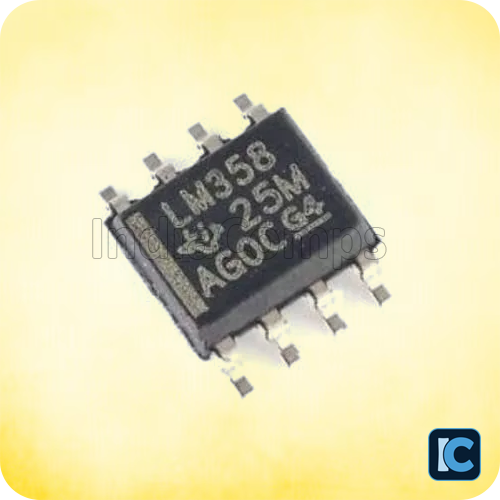

LM358DR Low Power Dual Op-Amp IC – SOIC-8 SMD Package
The LM358DR is a low-power dual operational amplifier (Op-Amp) IC housed in a compact SOIC-8 surface-mount (SMD) package. It integrates two high-gain, internally frequency-compensated op-amps, ideal for single or dual-supply operation across a wide voltage range.
Engineered for low power consumption, the LM358DR is highly reliable for applications like signal conditioning, filtering, sensor amplification, and general analog processing in battery-powered and embedded systems.
🔹 Key Features:
-
Dual independent high-gain op-amps
-
Internally frequency-compensated
-
Operates from single (3V–32V) or dual supplies (±1.5V–±16V)
-
Low power drain: 0.7 mA supply current
-
Wide unity gain bandwidth: 0.7 MHz
-
Slew Rate: 0.3 V/μs
-
Input offset voltage: 3 mV
-
Differential input voltage range: Equal to max rated supply (32V)
-
Space-saving SOIC-8 SMD package
📊 Technical Specifications:
| Parameter | Value |
|---|---|
| Package Type | SOIC-8 (SMD) |
| Number of Channels | 2 (Dual Op-Amp) |
| Supply Voltage (Single) | 3V – 32V |
| Supply Voltage (Dual) | ±1.5V – ±16V |
| Supply Current | 0.7 mA (typical) |
| Unity Gain Bandwidth | 0.7 MHz |
| Slew Rate | 0.3 V/μs |
| Input Offset Voltage | 3 mV (typical) |
| Input Offset Current | 2 nA |
| Input Bias Current | -20 nA |
| Differential Input Voltage | Up to 32V |
| Operating Temperature Range | -40°C to +85°C |
⚙️ Applications:
-
Signal Conditioning
-
Sensor Amplification
-
Active Filters
-
Voltage Followers / Buffers
-
Low Power Analog Processing
-
Battery-Operated Systems
-
Data Acquisition Systems
-
Audio Preamps
📦 Package Includes:
-
1 × LM358DR Dual Op-Amp IC – SOIC-8 Package
🖼️ Note:
Images shown are for illustrative purposes only. Refer to the LM358DR datasheet for complete electrical and mechanical specifications.
