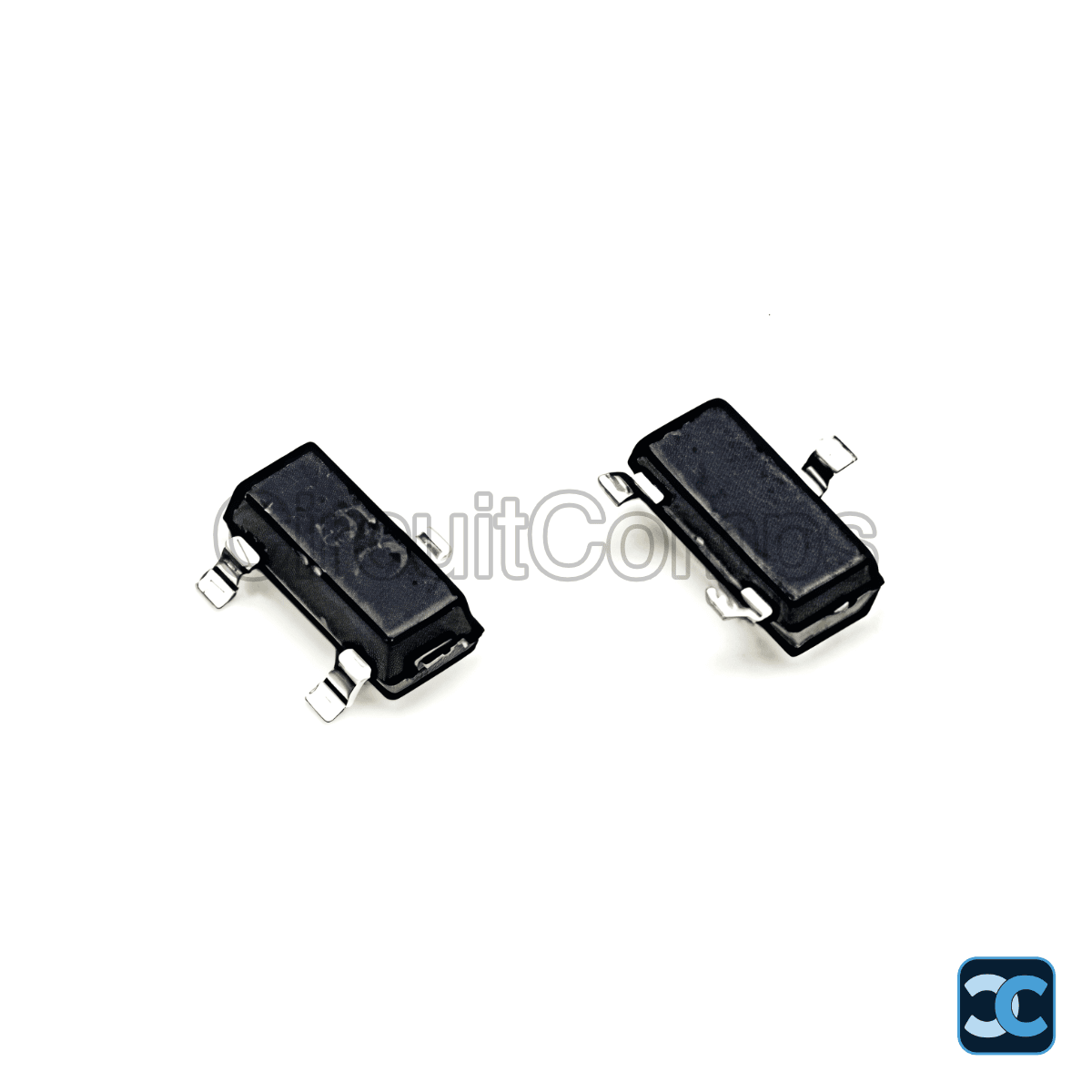

BC807-40 PNP Transistor SOT-23 45V 500mA High Gain SMD

Circuitcomps

BC807-40 PNP Transistor SOT-23 45V 500mA High Gain SMD

Name: BC807-40 PNP Transistor SOT-23 45V 500mA High Gain SMD
Brand: Circuitcomps
SKU: CC-001117
Price: 2.0 INR
Availability: InStock

Product SKU: CC-001117

Available:

Only 100 items in stock

100 items in stock

In stock

Pre-order

Out of stock

Manufacturer Part No.

BC807-40
Device Type

PNP General-Purpose High-Gain Silicon Transistor
Transistor Type

PNP
Package

SOT-23 (TO-236AB)
Mounting Type

Surface Mount (SMD)
Collector-Emitter Voltage (VCEO)

−45V
Maximum Continuous Collector Current (IC)

−500 mA
Peak Collector Current (ICM)

−1 A
DC Current Gain (hFE)

250 – 600 (high-gain “-40” group)
Power Dissipation

250 mW – 345 mW (PCB thermal dependent)
Complementary Transistor

BC817-40 (NPN)
Operating Function

High-gain PNP switching and signal amplification transistor
Applications

General-purpose switching, signal amplification, LED driver circuits, relay drivers, small DC motor control, audio pre-amplifiers, embedded systems, industrial electronics, consumer electronics, automotive electronics
Suitable For

High-density PCB layouts, automated SMT assembly, medium-current load driving
Features

SOT-23 SMD package, high hFE gain group (250–600), 500mA continuous collector current, complementary to BC817-40
Function

Provides PNP high-gain switching and amplification in compact surface-mount form factor
Electrical Characteristics

VCEO −45V, IC −500mA, ICM −1A, hFE 250–600

Rs. 2.00

~~Rs. 3.00~~

Description
Specifications
Reviews

The BC807-40 is a high-performance PNP silicon bipolar junction transistor (BJT) designed for general-purpose switching and amplification applications. Commonly available from Nexperia and other leading semiconductor manufacturers, it is supplied in a compact SOT-23 surface-mount package.

Featuring a collector-emitter voltage (VCEO) of −45V, continuous collector current of −500mA, and a high DC current gain (hFE) of 250 to 600, the BC807-40 is ideal for driving LEDs, relays, small motors, and other medium-current loads. The “-40” suffix indicates the high-gain classification. Complementary NPN transistor: BC817-40.

Key Specifications

Part Number: BC807-40
Transistor Type: PNP
Package: SOT-23 (TO-236AB)
Mounting Type: Surface Mount (SMD)
Collector-Emitter Voltage (VCEO): −45V
Maximum Continuous Collector Current (IC): −500 mA
Peak Collector Current (ICM): −1 A
DC Current Gain (hFE): 250 – 600
Power Dissipation: 250 mW – 345 mW (PCB thermal dependent)

Package Includes

1 x BC807-40 PNP Transistor SOT-23 45V 500mA High Gain SMD

Note: Image is for representation purpose only.
