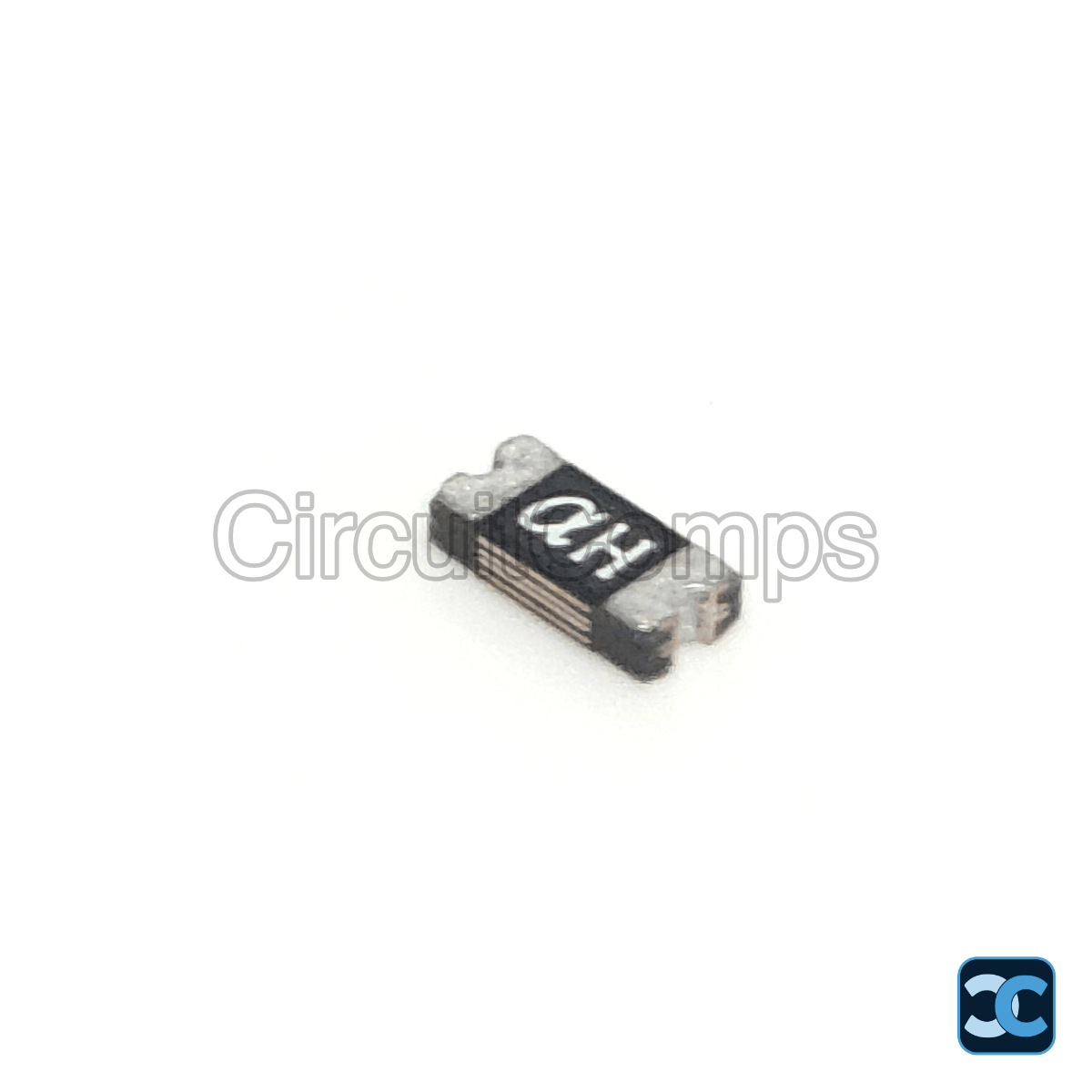

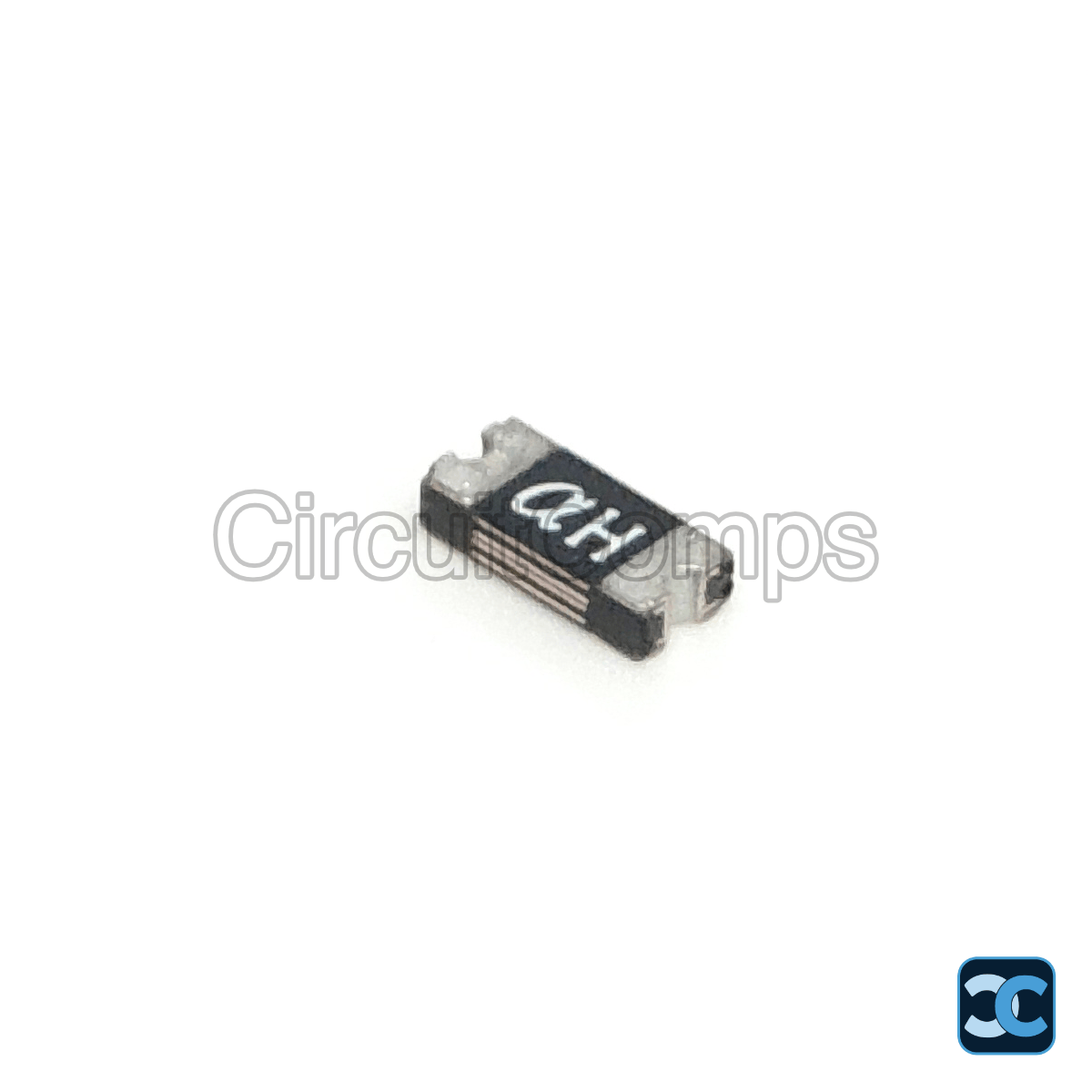

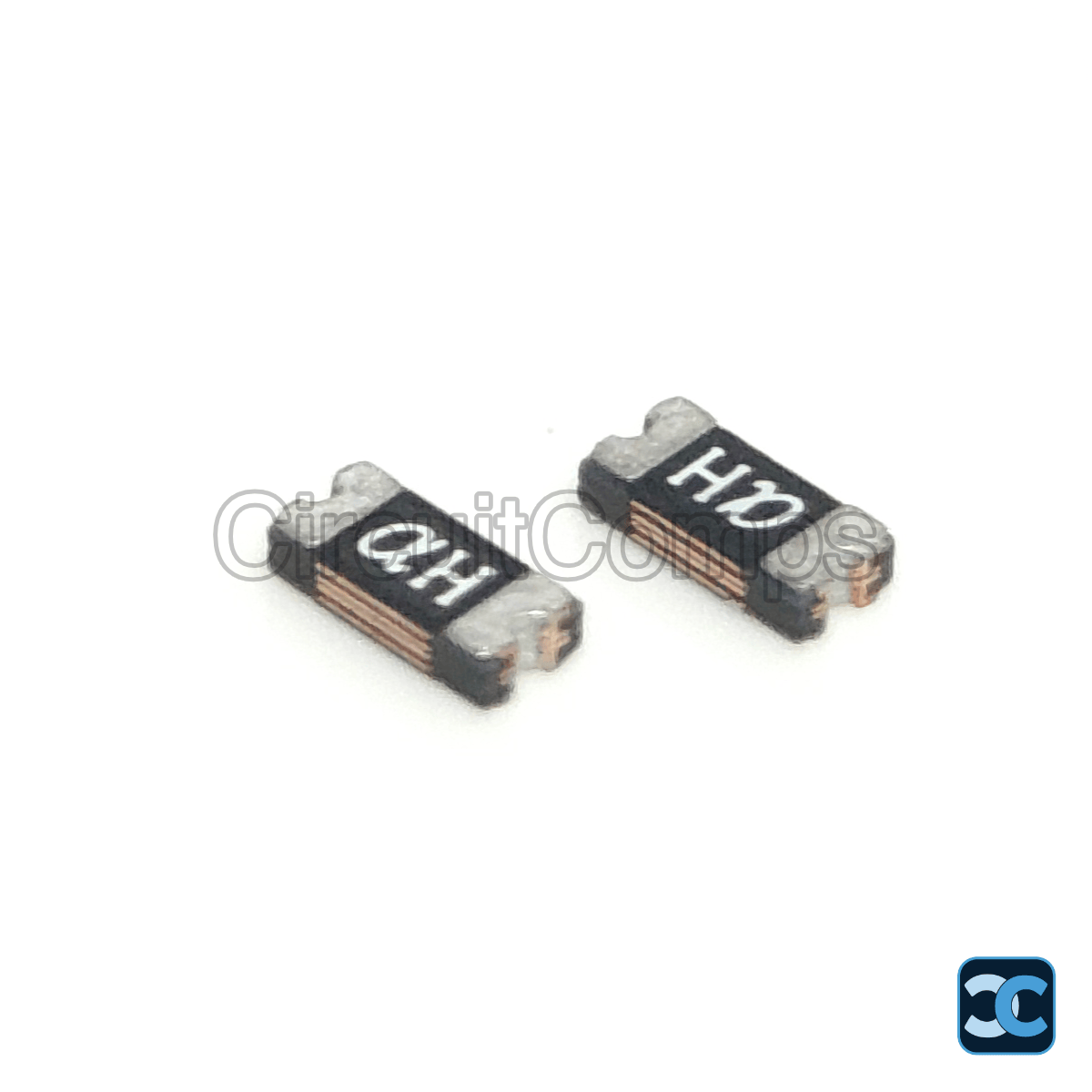

16V 1A PTC Resettable Fuse 1206 SMD TECHFUSE

The TECHFUSE nSMD100-16V is a resettable PTC (Positive Temperature Coefficient) fuse in a 1206 SMD package, rated at 16V with a 1A hold current and 1.8A trip current. It provides reliable overcurrent protection for electronic circuits and automatically resets after the fault condition is removed, eliminating the need for manual fuse replacement in USB ports, battery packs, and power supply circuits.

Key Specifications

• Manufacturer: TECHFUSE
• Manufacturer Part No.: nSMD100-16V
• Package: 1206 (SMD)
• Voltage (Max): 16V
• Hold Current: 1A
• Trip Current: 1.8A
• Current (Max): 100A
• Power Dissipation: 600 mW
• Resistance @ 25°C: 55 mΩ
• Resistance Post Trip (R1 Max): 270 mΩ
• Operating Temperature: -40°C to +85°C
• Termination Style: SMD/SMT
• RoHS Compliant: Yes

Package Includes

• 1 x 16V 1A PTC Resettable Fuse 1206 SMD TECHFUSE

Note: Image is for representation purpose only.
