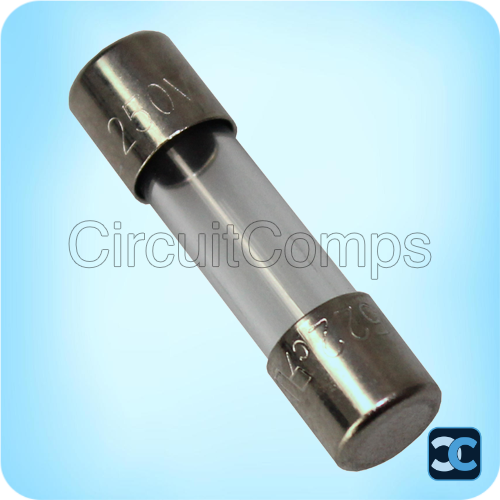

3A Glass Fuse 250V – 5x20mm Fast Blow Type

The 3A 250V Fast-Blow Glass Fuse is a high-quality 5×20mm cartridge fuse designed to provide instantaneous overcurrent protection for sensitive electronic circuits. Its fast-acting design immediately interrupts the circuit upon detecting a current spike, protecting components from damage caused by short circuits and power surges.

The transparent glass body allows for quick visual inspection of the internal filament, making fault diagnosis easy without the need for test equipment. Built with nickel-plated brass end caps for reliable conductivity and corrosion resistance, this fuse fits standard 5×20mm fuse holders used across consumer electronics, household appliances, and industrial equipment.

Key Specifications

• Current Rating: 3 A
• Voltage Rating: 250V AC/DC
• Fuse Type: Fast-Acting / Fast-Blow (F3AL250V)
• Dimensions: 5 mm × 20 mm (0.2" × 0.79")
• Body Material: High-transparency glass tube
• End Caps: Nickel-plated brass

Package Includes

• 1 x 3A 250V Fast-Blow Glass Fuse (5×20mm)

Note: Image is for representation purpose only.
