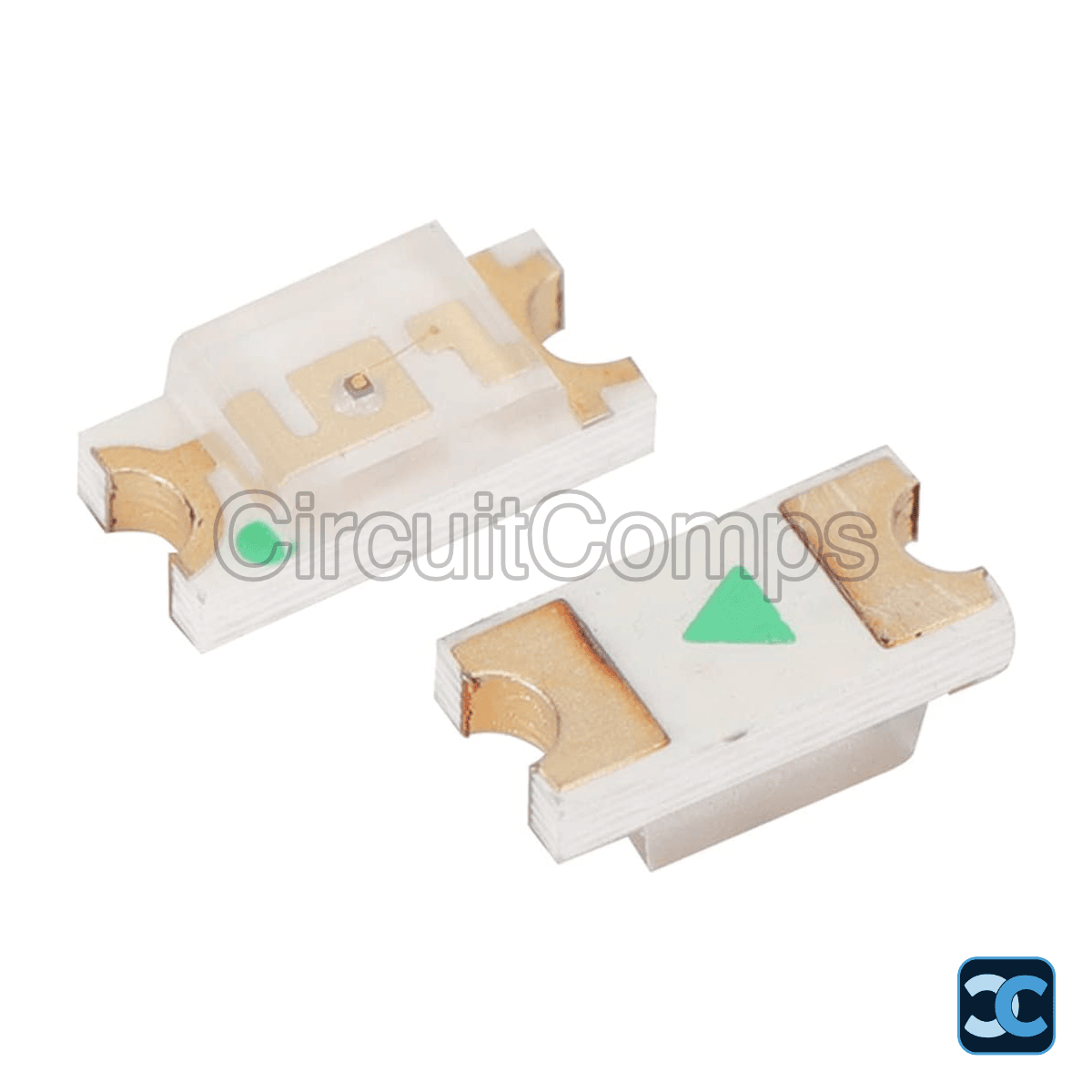

Blue LED 1206 SMD 3.4V 450-495nm Everlight

The Everlight 15-21/BHC-AN1P2/2T is a professional-grade high-efficiency single-colour blue SMD LED optimized for surface-mount applications. Manufactured by Everlight Electronics using InGaN material technology, this high-performance component features an expanded 1206 (3216 Metric) package built for exceptional thermal efficiency and design durability. Its colorless water-clear lens delivers high-contrast, sharp blue light emission across a wide 130° viewing angle, making it ideal for complex instrumentation and modern electronic user interfaces.

Packaged in tape & reel format for automated pick-and-place assembly, the 15-21/BHC-AN1P2/2T is RoHS compliant and lead-free, suitable for automotive backlighting, telecom status indicators, flat panel backlighting, and miniaturized electronic designs across a −40°C to +85°C operating temperature range.

Key Specifications

• Manufacturer: Everlight Electronics
• Part Number: 15-21/BHC-AN1P2/2T
• Emitted Color: Blue
• Dominant Wavelength: 470 nm
• Luminous Intensity: 40 mcd (typical)
• Package: 1206 (3216 Metric)
• Forward Voltage (Vf): 3.3V typical
• Forward Current (If): 20 mA
• Power Rating: 95 mW
• Viewing Angle: 130°
• Lens Type: Rectangular, Colorless, Water Clear
• Operating Temperature: −40°C to +85°C
• Mounting Style: SMD / SMT
• Packaging: Tape & Reel (8mm carrier tape, 7" reel)
• Compliance: RoHS, Lead-Free

Applications

• Automotive interior backlighting for dials, dashboards, central console systems, and control switch arrays
• Status indicators and channel activity lighting in enterprise routers, modems, servers, and telephony devices
• Backlighting for alphanumeric LCD screens, user interface displays, keypads, and control symbol overlays
• Smart utility meters, diagnostic medical panels, gaming hardware, and portable consumer electronics
• Automated SMT PCB assembly

Package Includes

• 1 x Everlight 15-21/BHC-AN1P2/2T Blue SMD LED 1206

Note: Image is for representation purpose only.
