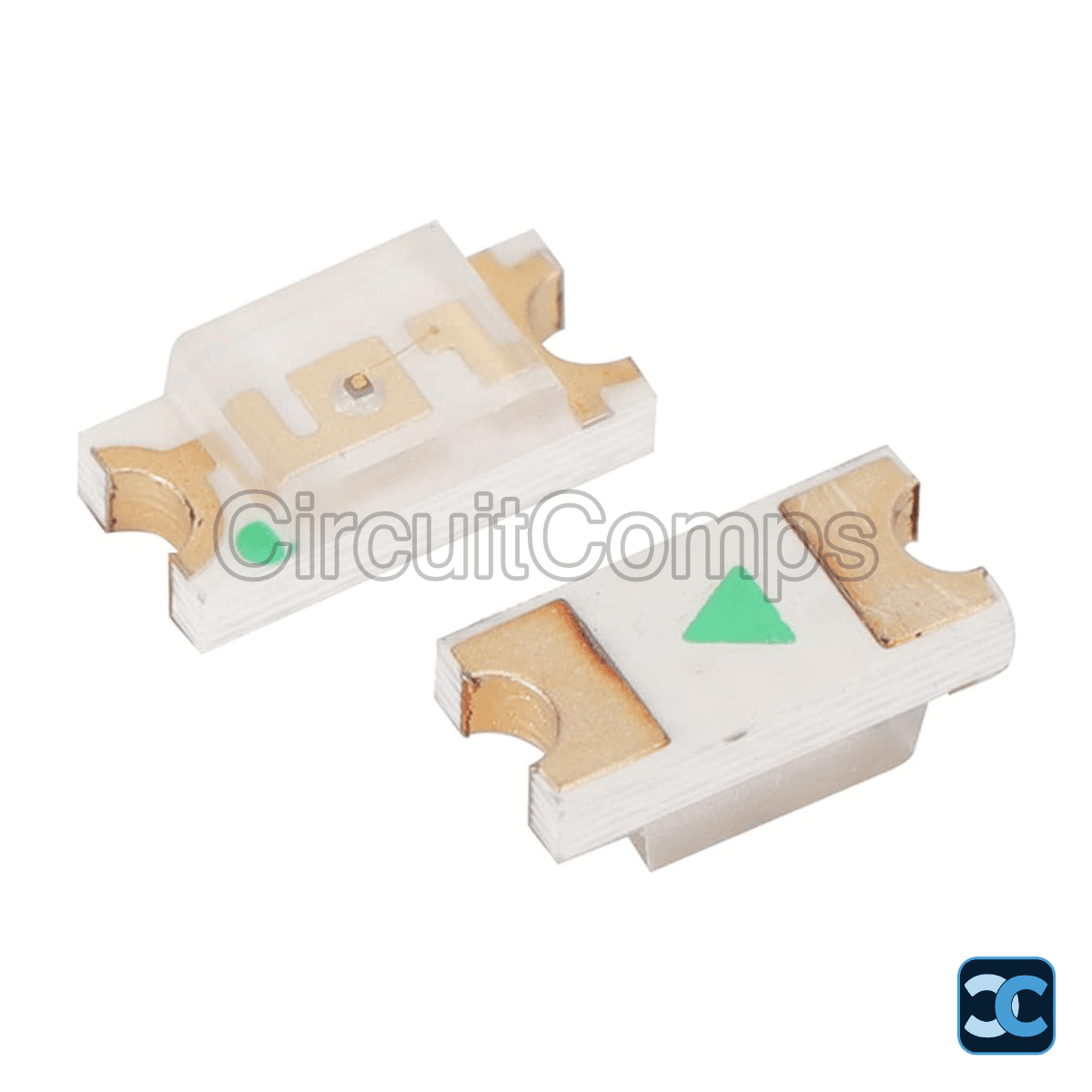

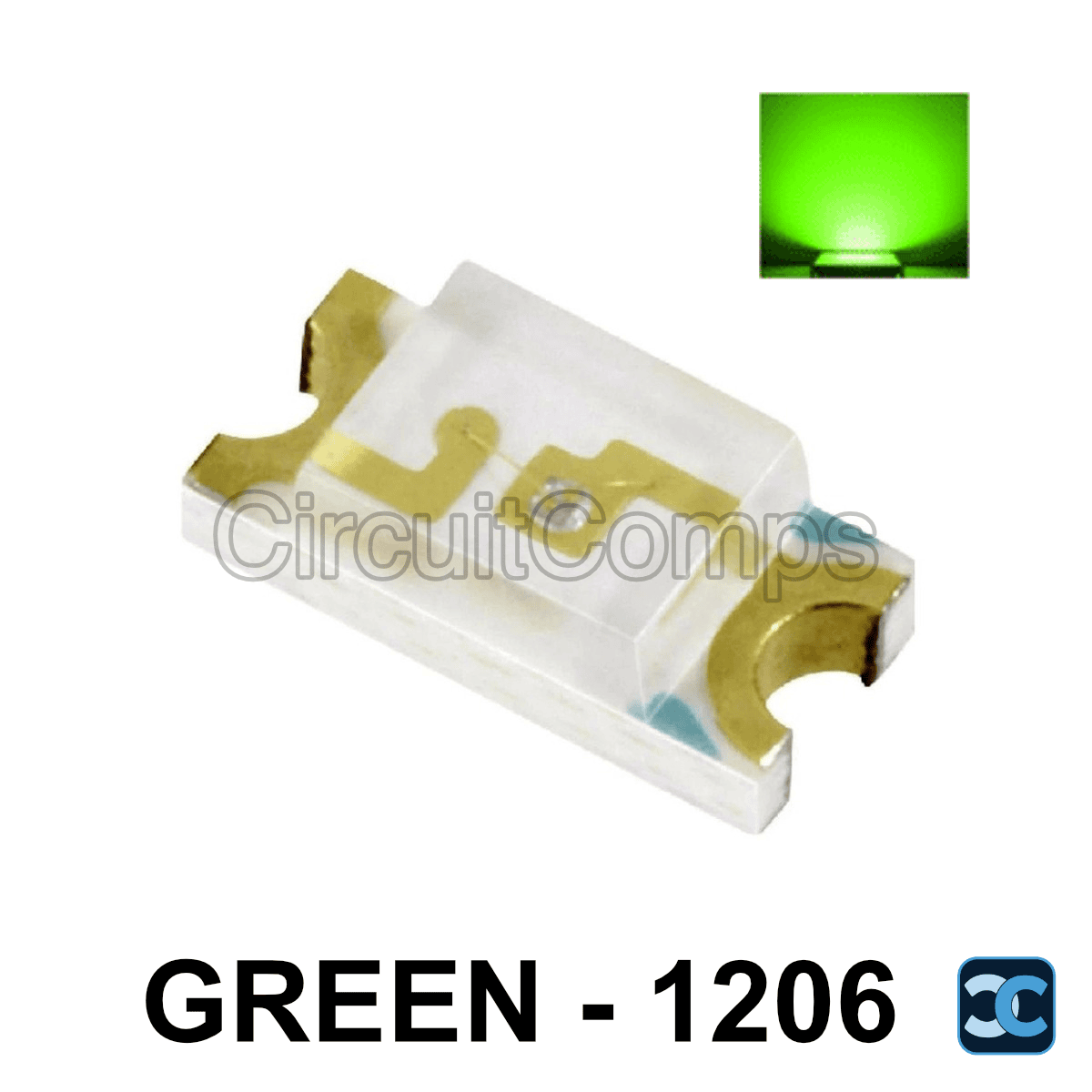

Everlight Green SMD LED 1206 (3216) 2V 20mA – True Green Indicator

The Everlight 1206 Green SMD LED is a high-performance surface-mount light-emitting diode engineered for versatile indicator and illumination applications. Housed in a standard 1206 package footprint (3216 Metric), this compact component delivers reliable brightness, wide-angle viewing, and exceptional thermal efficiency. Suitable for industrial control panels, automotive dashboards, consumer electronics, and custom PCB prototypes.

Packaged on standard 8mm tape and reel for full compatibility with high-speed pick-and-place machinery, this LED is lead-free, halogen-free, and fully RoHS and REACH compliant.

Key Specifications

• Manufacturer: Everlight Electronics
• Package: 1206 (3216 Metric)
• LED Color: True Green / Yellow-Green
• Wavelength: 525 nm – 570 nm
• Forward Voltage (Vf): 2.0V typical / 2.4V max
• Forward Current (If): 20 mA
• Luminous Intensity: 45 – 112 mcd
• Viewing Angle: 140°
• Lens Style: Water Clear / Rectangular
• Operating Temperature: −40°C to +85°C
• Mounting Style: SMD / SMT
• Packaging: Tape & Reel
• Compliance: RoHS, Pb-Free, Halogen-Free, REACH

Installation & Handling Guidelines

• Polarity: Cathode (negative) terminal marked on the underside via a green polarity stripe or notched corner
• Soldering: Compatible with IR reflow, vapor phase reflow, and manual soldering (max 260°C for 10 seconds)
• Moisture Sensitivity: MSL 3 — store in original moisture-barrier packaging until reflow assembly

Applications

• Consumer electronics status indicators for routers, smart home devices, and chargers
• Industrial automation control panel signals, fault indicators, and switch backlighting
• Automotive and transport dashboard instrumentation, climate control clusters, and ambient accent lighting
• Telecommunications network switch and server rack diagnostic lights

Package Includes

• 1 x Everlight 1206 Green SMD LED

Note: Image is for representation purpose only.
