AO3415 – 20V P-Channel MOSFET – SOT-23 – -4A Low RDS(ON) Load Switch Transistor
- Description
- Return & Refund Policy
- Reviews
✅ Product Description:
AO3415 – 20V P-Channel MOSFET – SOT-23 – -4A Low RDS(ON) Load Switch Transistor
The AO3415 is a compact and efficient P-Channel MOSFET designed using advanced trench technology, delivering low on-state resistance and low gate charge for optimal switching performance. Housed in a small SOT-23 surface-mount package, this MOSFET is ideal for space-constrained designs and load switch applications.
With a drain-source voltage rating of -20V, a continuous drain current of -4A, and a gate-source voltage tolerance of ±8V, the AO3415 performs reliably in low-voltage switching tasks. It is optimized for logic-level gate drives as low as 1.8V, making it a perfect fit for battery-powered circuits, power management systems, and mobile devices.
Key Features:
-
Transistor Type: P-Channel MOSFET
-
Drain-Source Voltage (VDS): -20V
-
Gate-Source Voltage (VGS): ±8V
-
Continuous Drain Current (ID): -4A
-
Low RDS(ON): Optimized for power efficiency
-
Gate Drive: Operates with gate voltages down to 1.8V
-
Package: SOT-23 (SMD)
-
Mounting Type: Surface Mount (SMD)
Applications:
-
Load switch circuits
-
Battery-powered devices
-
Power management modules
-
DC switching applications
-
General low-voltage switching
Technical Identifiers:
Manufacturer Part Number: AO3415
TME Symbol: AO3415
Package Includes:
1 x AO3415 – 20V P-Channel MOSFET (SOT-23 Package)

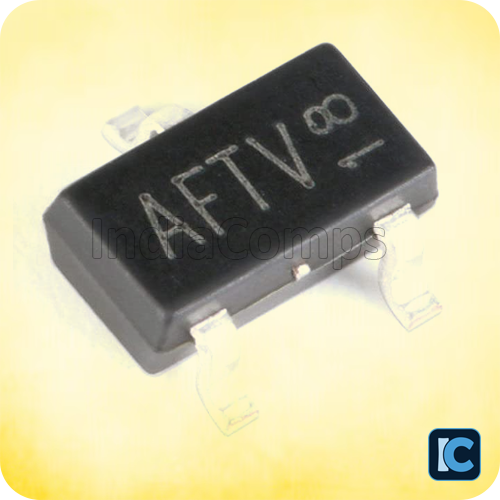

🖼️ Note: Image is for representation purpose only.
