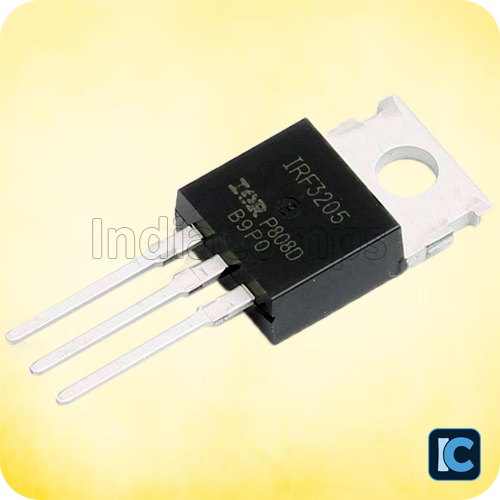

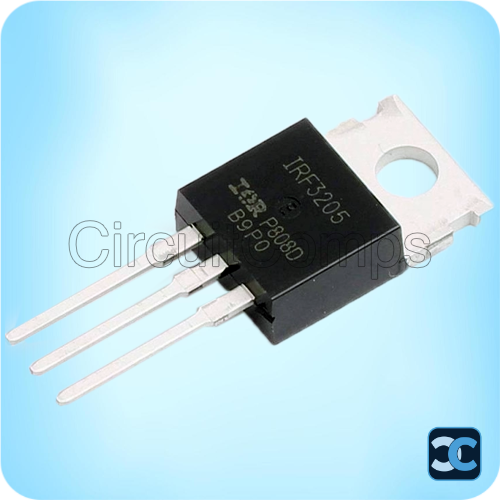

IRF3205 MOSFET - 55V 110A N-Channel HEXFET Power MOSFET – TO-220 Package
The IRF3205 is an advanced N-channel HEXFET® Power MOSFET designed using cutting-edge processing technology to deliver extremely low on-resistance per silicon area. Coupled with fast switching speeds and a rugged device design, the IRF3205 offers highly efficient and reliable performance, suitable for a wide range of power electronics applications.
🔥 Key Features:
-
Advanced process technology for improved efficiency
-
Ultra low on-resistance (Rds(on)) for minimal power loss
-
High dynamic dv/dt rating for switching robustness
-
Fast switching capability
-
Fully avalanche rated for enhanced ruggedness
📊 Detailed Specifications:
| Parameter | Value |
|---|---|
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 55 V |
| Continuous Drain Current (Id) | 110 A |
| Drain-Source On-Resistance (Rds(on)) | 8 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Gate Charge (Qg) | 146 nC |
| Operating Temperature Range | -55°C to 175°C |
| Power Dissipation (Pd) | 200 W |
📁 Related Documents:
-
IRF3205 MOSFET Datasheet (Link to datasheet)
📦 Package Includes:
-
1 × IRF3205 N-Channel Power MOSFET (TO-220 Package)
🖼️ Note:
Product images are for illustrative purposes only and may differ from the actual product.
