IRFZ44N N-Channel Power MOSFET – 55V, 49A – TO-220 Package

✅ Product Description:
IRFZ44N N-Channel Power MOSFET – 55V, 49A – TO-220 Package

The IRFZ44N is a rugged and efficient N-Channel Power MOSFET designed for high-current and low-voltage switching applications. With a Drain-Source voltage rating of 55V and continuous current handling up to 49A, this MOSFET is widely used in automotive, motor control, DC-DC converters, and power supply systems.

Built using advanced HEXFET® technology, it offers extremely low RDS(on), fast switching speed, and reliable thermal performance with a junction temperature rating up to 175°C. Its TO-220 package makes it ideal for through-hole mounting with effective heat dissipation.

Key Features:

• Transistor Type: N-Channel

• Drain-Source Voltage (Vds): 55V

• Continuous Drain Current (Id): 49A

• Package: TO-220 (Through-Hole)

• Operating Junction Temperature: -55°C to +150°C

• Dynamic dV/dt Rating: Enhanced reliability

• Fast Switching & Simple Drive Requirements

• Repetitive Avalanche Rated: Improved durability

• Ease of Paralleling: For higher current loads

Applications:

• Automotive switching and motor control

• Power converters and inverters

• Battery-powered systems

• LED lighting and power management

• Robotics and hobby electronics

Package Includes:
1 x IRFZ44N N-Channel Power MOSFET (TO-220 Package)

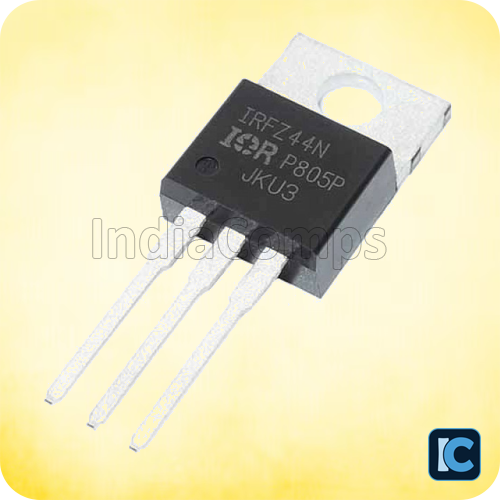

🖼️ Image shown is for reference only.
