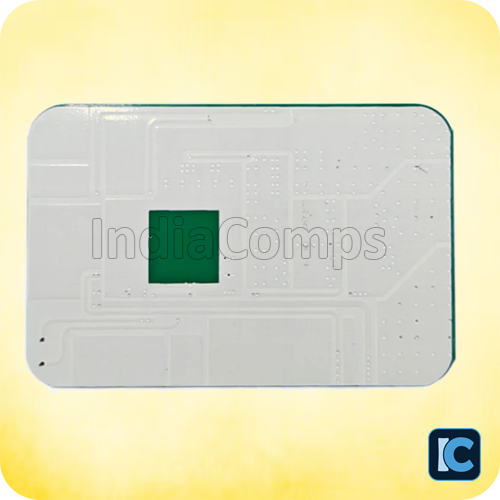

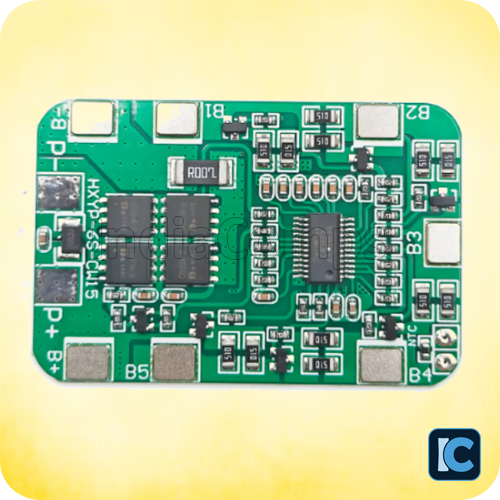

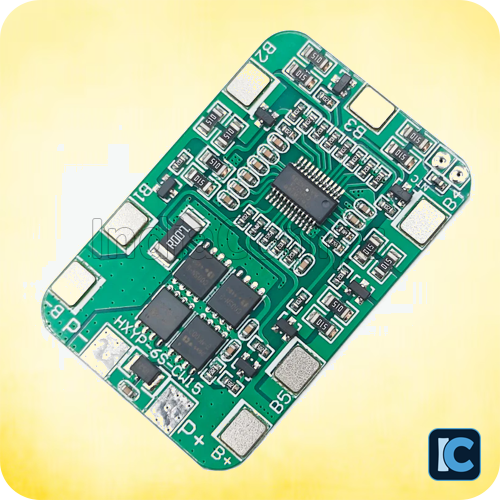

BMS 6S 20A 24V 18650 Lithium Battery Charger Protection Module

✅ Product Description:

BMS 6S 20A 24V 18650 Lithium Battery Charger Protection Module

The 6S 20A 24V BMS (Battery Management System) Module is designed for safely charging and discharging a 6-cell 18650 lithium-ion or lithium-polymer battery pack connected in series. This module provides intelligent protection against overcharge, over-discharge, overcurrent, and short circuit, ensuring longer battery life and safer operation.

Whether you're building battery packs for DIY electronics, e-bikes, power tools, or energy storage systems, this module is a reliable choice. It supports instantaneous discharge currents up to 25A and has a charging current capacity of up to 20A, making it ideal for medium-to-high power applications.

Pair this BMS module with compatible battery holders, and for added safety during storage or transport, consider using fireproof battery guard bags.

Specifications:

• Battery Configuration: 6S (6 cells in series)

• Charging Voltage: 25.5V

• Charging Current: 20A (Max)

• Instantaneous Discharge Current: 25A

• Overcharge Detection Voltage: 4.28 ± 0.05V

• Overcharge Release Voltage: 4.08 ± 0.05V

• Over-discharge Detection Voltage: 2.55 ± 0.08V

• Over-discharge Release Voltage: 2.9 ± 0.1V

• Overcurrent Protection Current: 30 ± 3A

• Overcurrent Detection Delay: 9ms

• Short Circuit Detection Delay: 250μs

• Operating Temperature Range: -30°C to +80°C

• Working Current: ≤30μA

• Sleep Current: ≤10μA

• Internal Resistance: ≤20mΩ

Applications:

• DIY lithium battery packs

• E-bikes and scooters

• Power tools

• Solar energy storage

• Robotics and IoT projects

Package Includes:

• 1 x BMS 6S 20A 24V 18650 Lithium Battery Charger Protection Module

Note: Image shown is for representation only. Actual product may vary in design.
