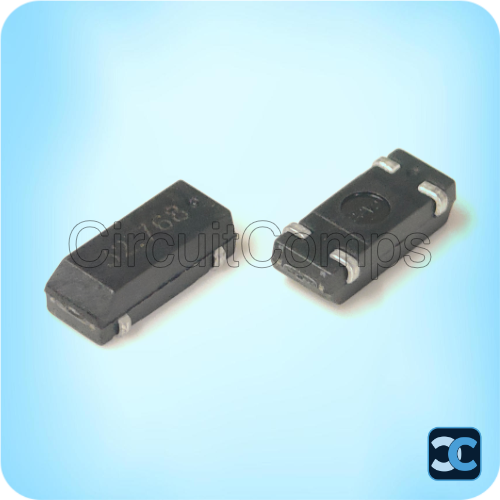

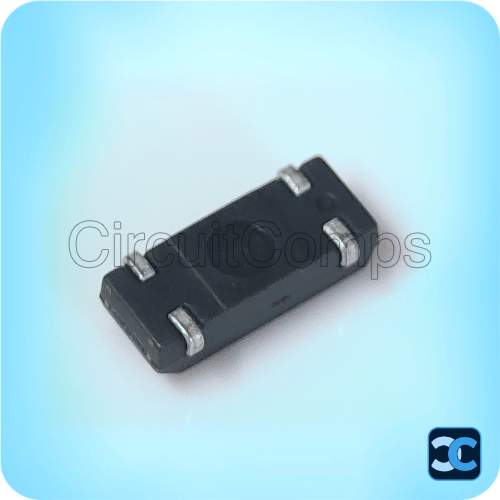

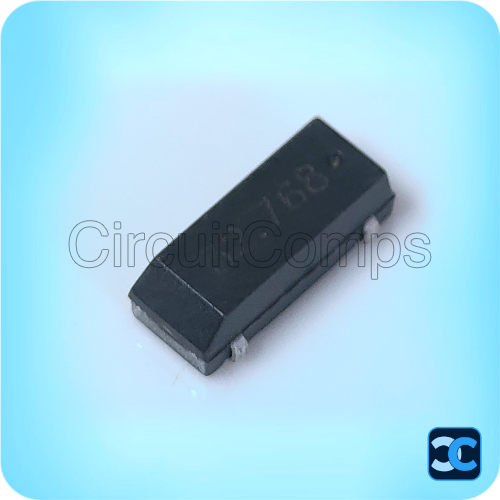

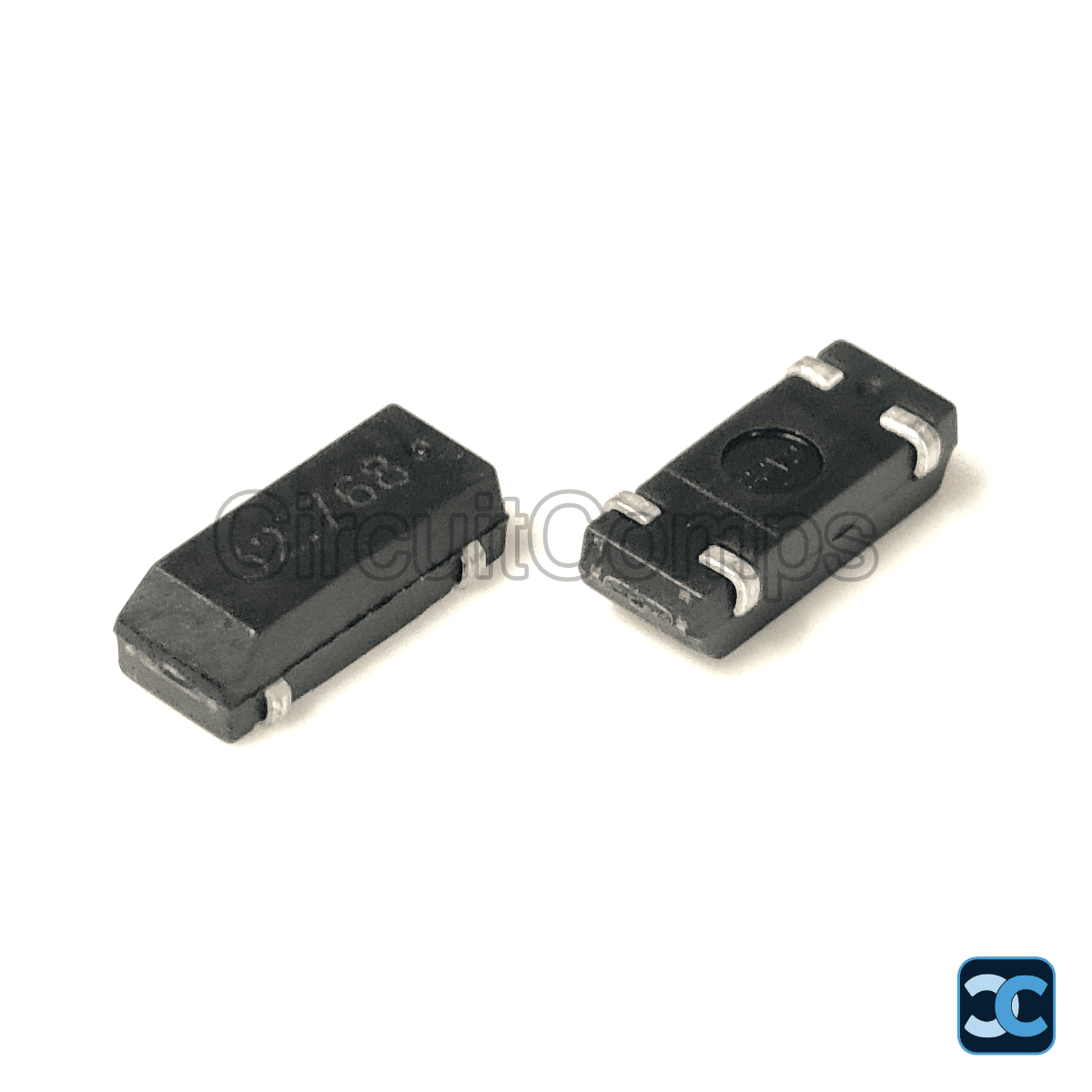

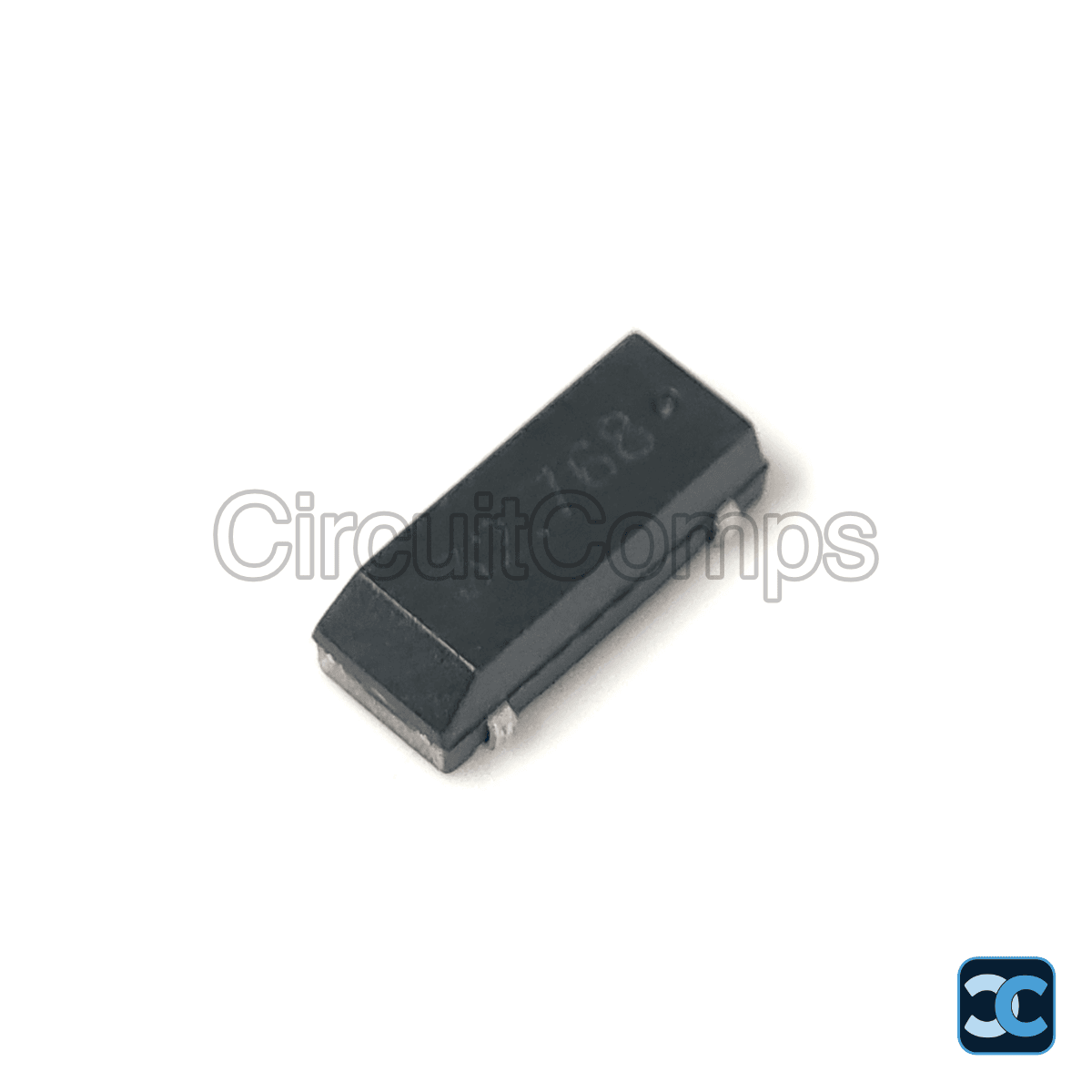

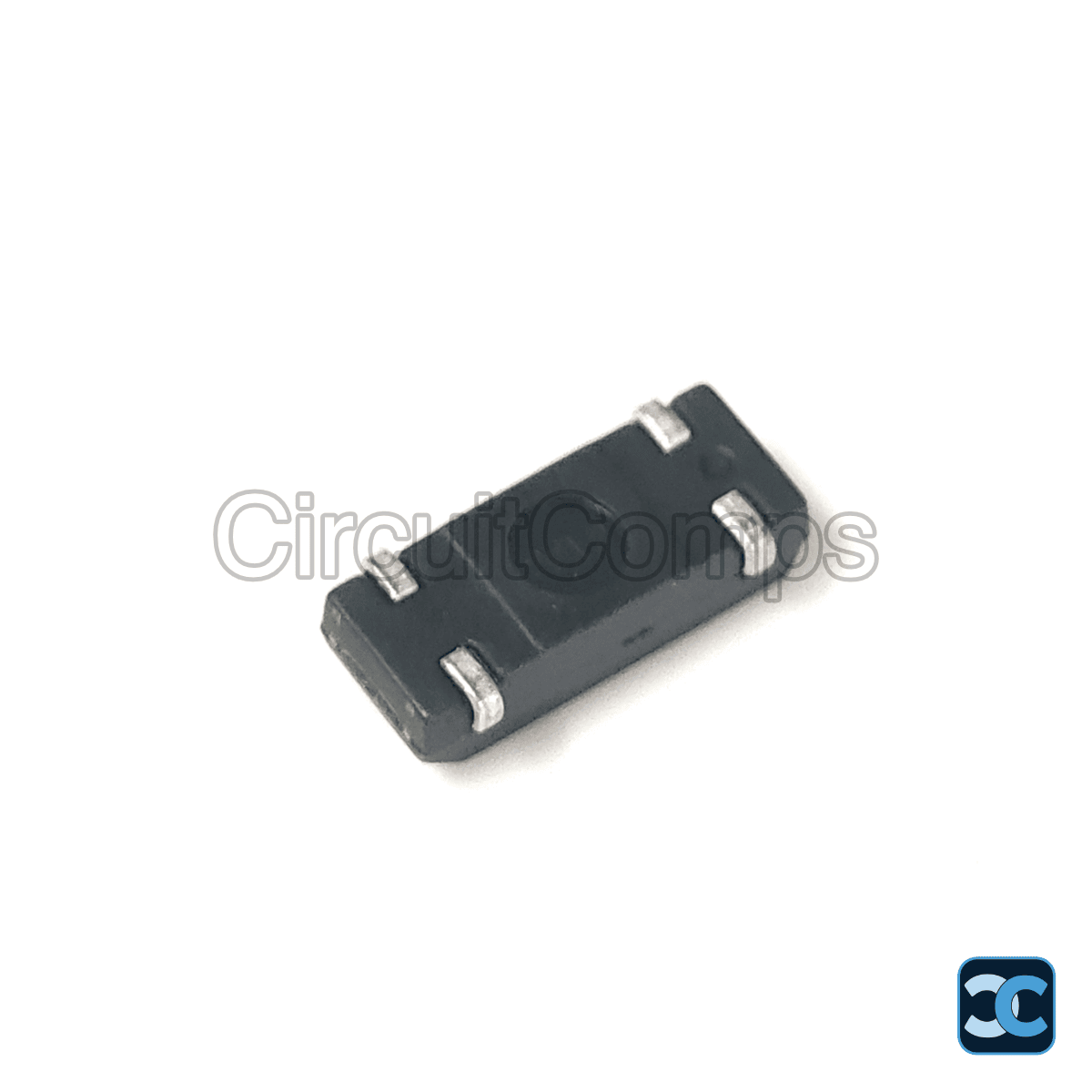

ABS25-32.768KHZ-6-T 32.768kHz SMD Tuning Fork Crystal 6pF ±20ppm 8.0x3.8mm

The ABS25-32.768KHZ-6-T is a high-precision 32.768kHz surface-mount tuning fork crystal designed for real-time clock (RTC) applications and ultra-low-power timing circuits. With a 6pF load capacitance, ±20ppm frequency tolerance, and industrial temperature range of −40°C to +85°C, it delivers reliable and accurate timing for embedded systems, IoT devices, wearables, and battery-powered electronics.

Its compact 8.0 × 3.8 × 2.5mm 4-pad SMD package is compatible with automated pick-and-place assembly, making it suitable for both prototype and high-volume production designs.

Key Specifications

• Part Number: ABS25-32.768KHZ-6-T
• Crystal Type: Tuning Fork Crystal
• Nominal Frequency: 32.768 kHz
• Load Capacitance: 6 pF
• Frequency Tolerance: ±20 ppm
• Equivalent Series Resistance (ESR): 50 kΩ max
• Drive Level: 1.0 µW max
• Operating Temperature: −40°C to +85°C
• Package Type: 4-Pad SMD
• Package Dimensions: 8.0 × 3.8 × 2.5 mm
• Mounting Type: Surface Mount (SMD)

Package Includes

• 1 x ABS25-32.768KHZ-6-T 32.768kHz SMD Tuning Fork Crystal

Note: Image is for representation purpose only.
