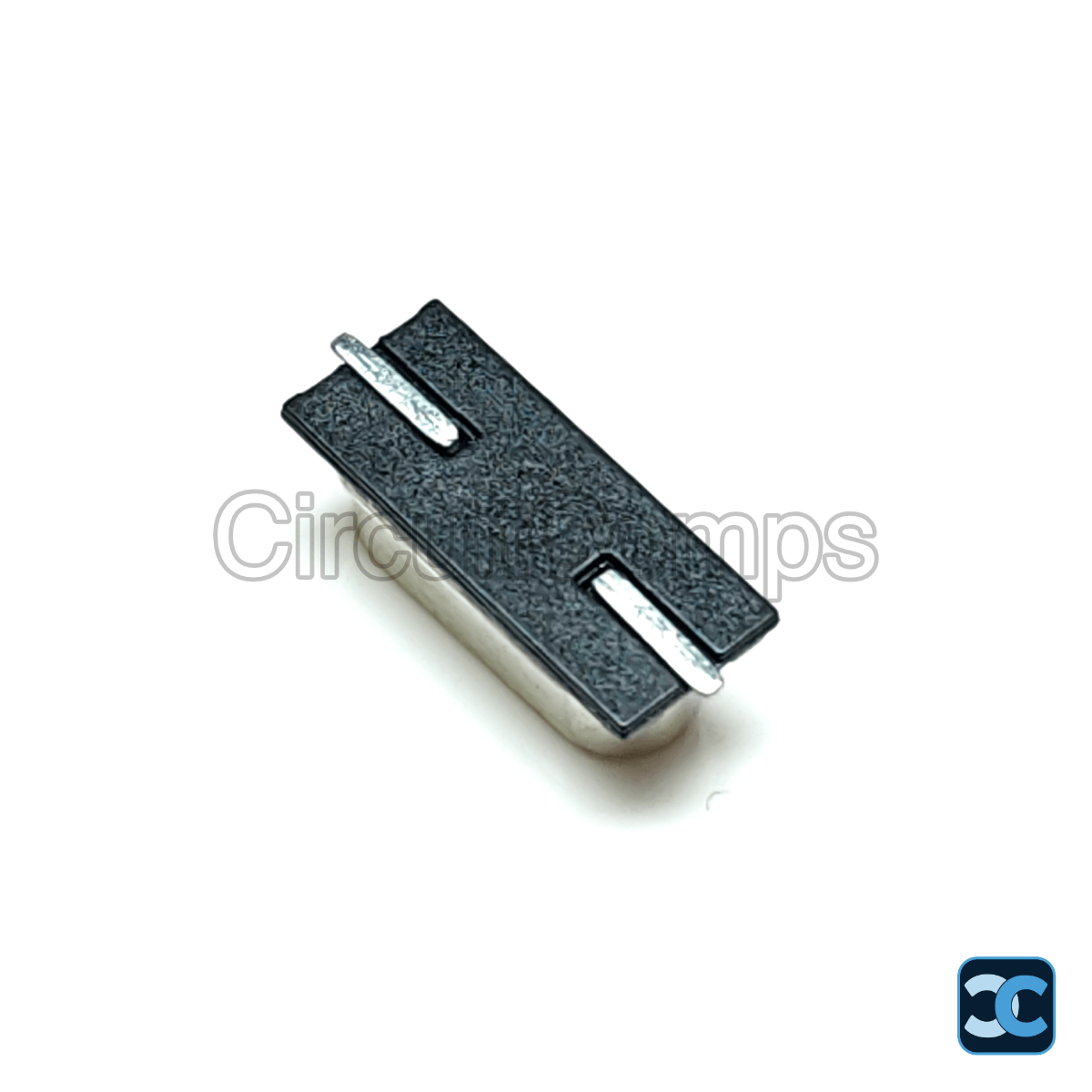

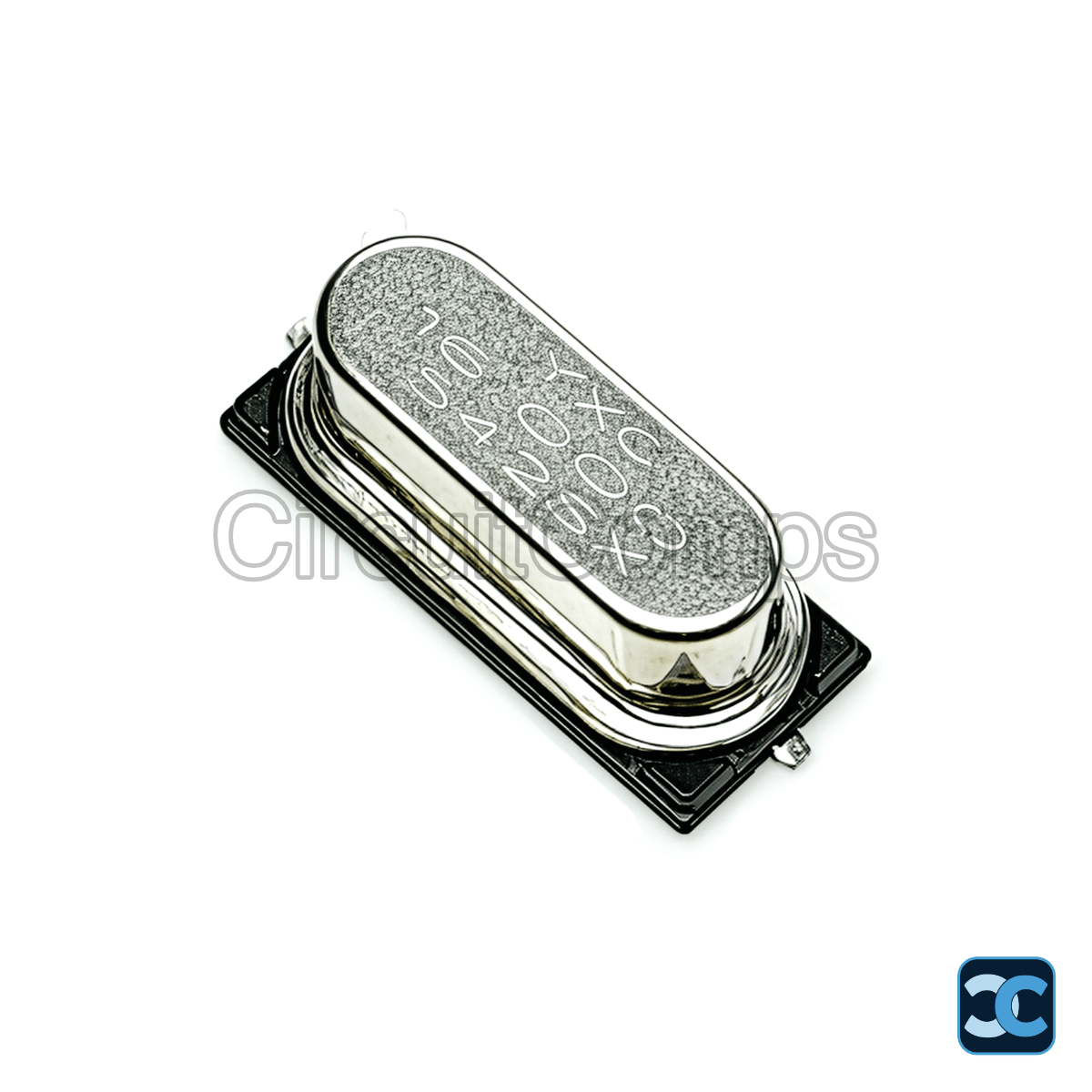

16MHz 20pF Crystal Oscillator HC-49S-SMD YXC

YXC Crystal Oscillators

YXC 16MHz HC49SMD SMD Quartz Crystal Resonator Low ESR

Name: Buy YXC 16MHz HC49SMD SMD Quartz Crystal Resonator Online India
Brand: YXC Crystal Oscillators
SKU: CC-000980
Price: 14.0 INR
Availability: InStock

Product SKU: CC-000980

Available:

Only 26 items in stock

26 items in stock

In stock

Pre-order

Out of stock

Manufacturer Part No.

CC-000980
Manufacturer

YXC (Yangxing Technology)
Device Type

SMD Quartz Crystal Resonator
Crystal Type

Quartz Crystal Resonator
Nominal Frequency

16.000 MHz
Package Type

HC49SMD
Mounting Type

Surface Mount (SMD)
Equivalent Series Resistance (ESR)

40 Ω max
Shunt Capacitance (C₀)

7 pF max
Enclosure Material

Steel
Finish

Silver-White
Weight

0.9 g
Operating Function

Precision 16MHz SMD quartz clock reference for microcontroller and communication timing circuits
Applications

Microcontrollers (ATmega328P, PIC, STM32), embedded systems, UART/USB/CAN bus communication, wireless communication modules, consumer electronics, smart home appliances, industrial automation, digital media players, networking devices, clock generation circuits
Suitable For

Automated PCB assembly, reflow soldering, high-density SMD designs
Features

HC49SMD SMD package, low ESR (40Ω max), low shunt capacitance (7pF max), hermetically sealed steel enclosure, reflow compatible, fast oscillation startup
Function

Provides accurate 16.000MHz clock reference for MCU, USB, communication, and embedded timing applications
Electrical Characteristics

16.000MHz, 40Ω max ESR, 7pF max shunt capacitance

Rs. 14.00

~~Rs. 15.45~~

Description
Specifications
Reviews

The YXC 16MHz HC49SMD Quartz Crystal Resonator is a high-precision surface-mount crystal designed to deliver a stable 16.000MHz clock signal for microcontrollers, communication devices, and embedded systems. With low ESR, compact SMD construction, and excellent frequency stability, it is ideal for automated PCB assembly and high-reliability electronic applications.

Its hermetically sealed steel enclosure and reflow soldering compatibility make it suitable for modern high-density PCB designs in consumer, industrial, and communication electronics.

Key Specifications

Manufacturer: YXC (Yangxing Technology)
Crystal Type: Quartz Crystal Resonator
Nominal Frequency: 16.000 MHz
Package Type: HC49SMD
Mounting Type: Surface Mount (SMD)
Equivalent Series Resistance (ESR): 40 Ω max
Shunt Capacitance (C₀): 7 pF max
Enclosure Material: Steel
Finish: Silver-White
Weight: 0.9 g

Package Includes

1 x YXC 16MHz HC49SMD SMD Quartz Crystal Resonator

Note: Image is for representation purpose only.
