ESP32-S3-WROOM-1 N16R8 Wi-Fi + Bluetooth 5 LE MCU Module - Espressif

The ESP32-S3-WROOM-1 N16R8 is a powerful, general-purpose Wi-Fi + Bluetooth 5 LE MCU module from Espressif, built around the ESP32-S3 SoC with a dual-core Xtensa® LX7 processor. With 16MB Flash, 8MB PSRAM, neural network acceleration, and a rich peripheral set including USB OTG, camera interface, LCD, and up to 36 GPIOs, it is the ideal platform for AIoT applications such as wake word detection, face recognition, smart home devices, and intelligent control panels.

Key Specifications

• Part Number: ESP32-S3-WROOM-1 N16R8
• Manufacturer: Espressif Systems
• SoC: ESP32-S3 (Xtensa® Dual-Core 32-bit LX7)
• Flash: 16MB
• PSRAM: 8MB
• ROM: 384KB
• SRAM: 512KB + 16KB RTC SRAM
• Wi-Fi: 2.4GHz 802.11 b/g/n
• Bluetooth: Bluetooth 5 (LE), Bluetooth Mesh
• GPIOs: Up to 36
• Antenna: On-board PCB Antenna
• Crystal Oscillator: 40MHz
• Operating Voltage: 3.0V – 3.6V
• USB: Full-Speed USB 2.0 OTG
• Peripherals: SPI, I2C, I2S, UART, LCD, Camera, ADC, Touch Sensor, LED PWM, MCPWM, SDIO, TWAI®
• Weight: 4.5g

Package Includes

• 1 x ESP32-S3-WROOM-1 N16R8 Wi-Fi + Bluetooth 5 LE MCU Module

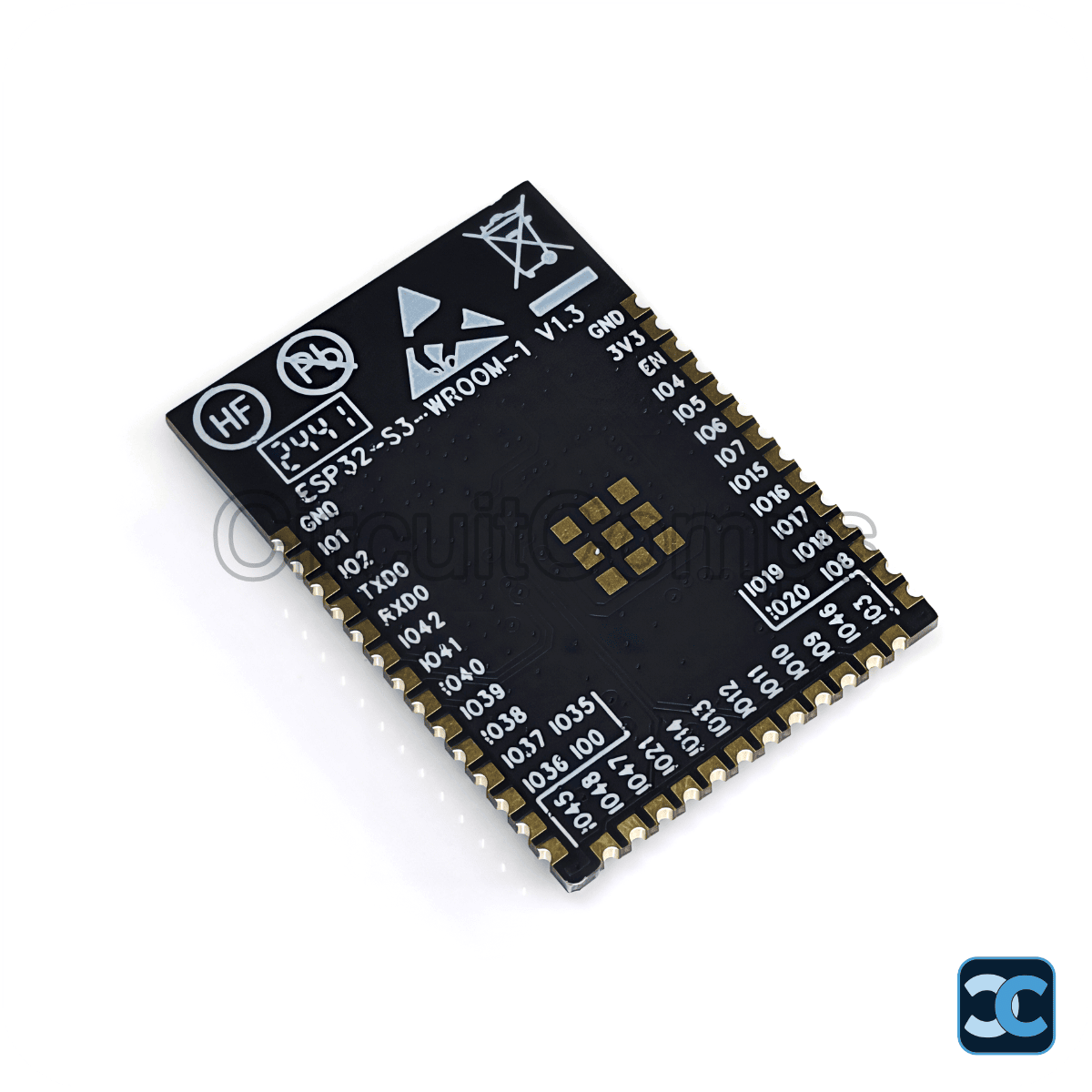

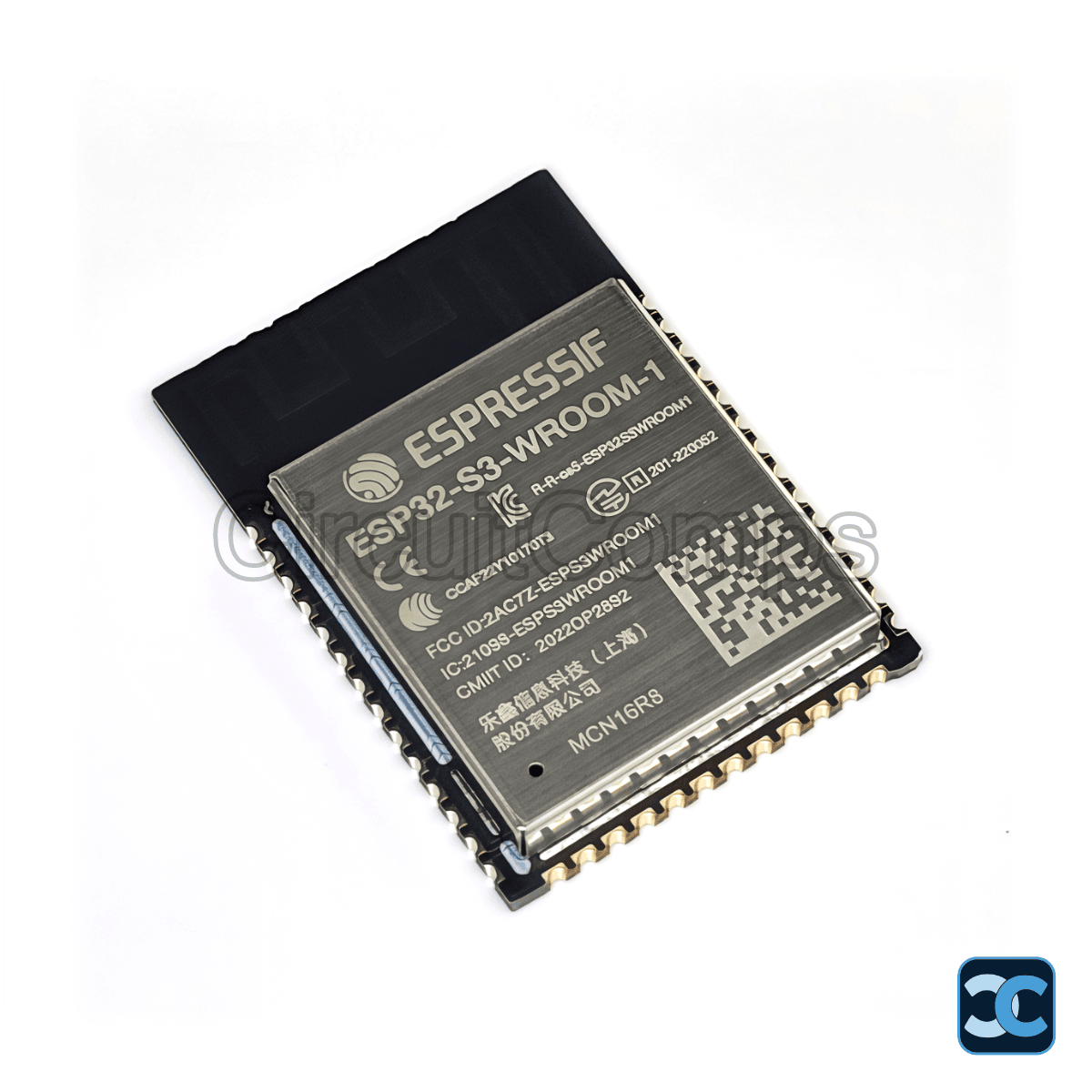

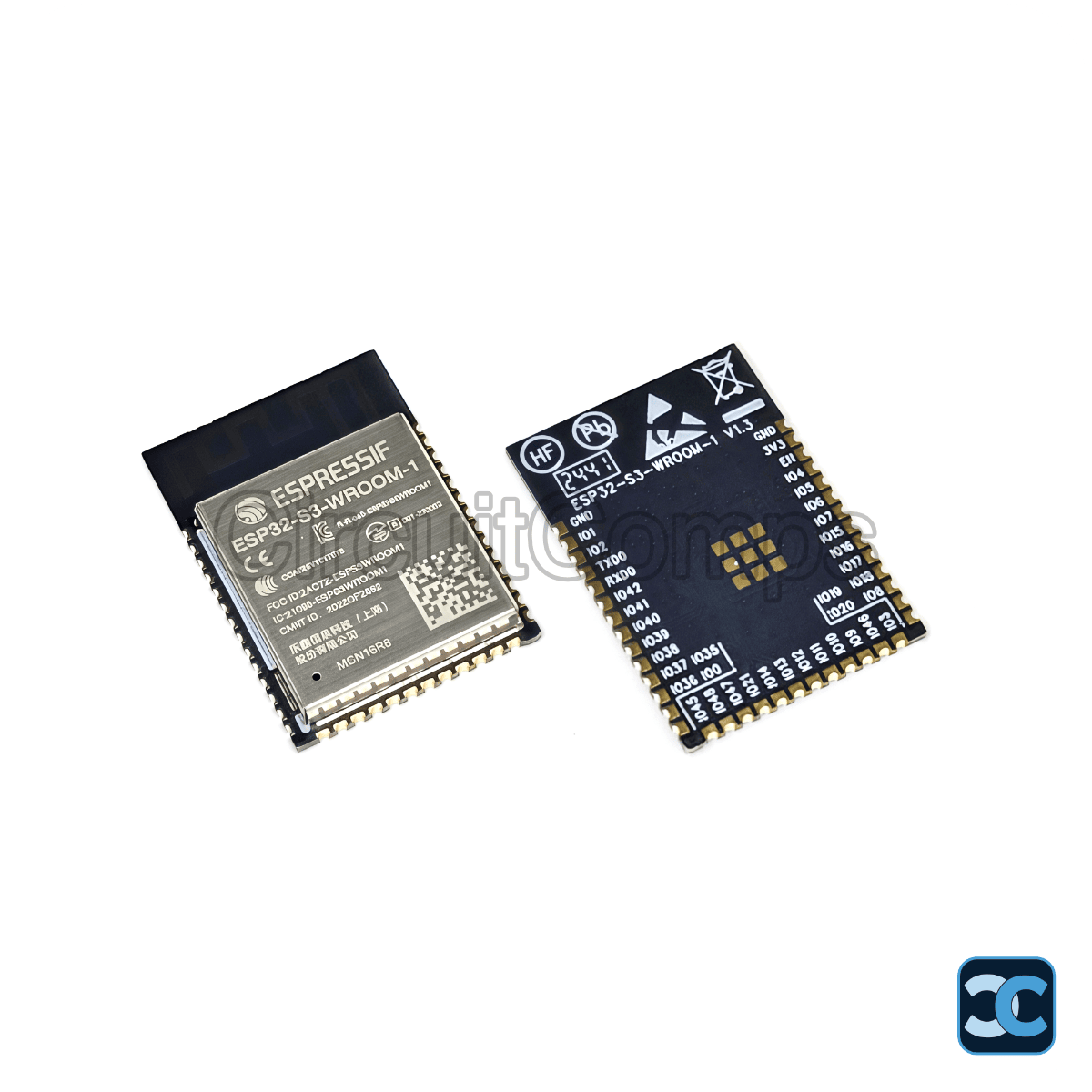

Note: Image is for representation purpose only.
