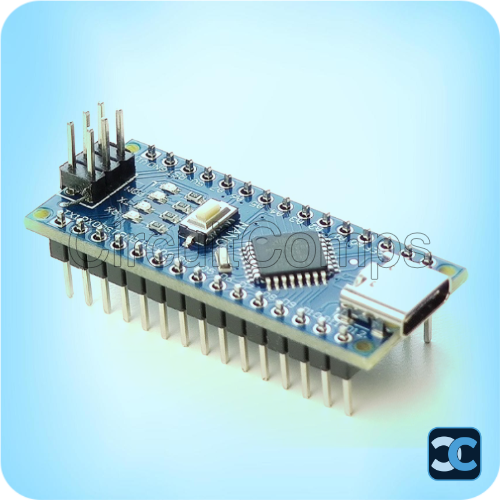

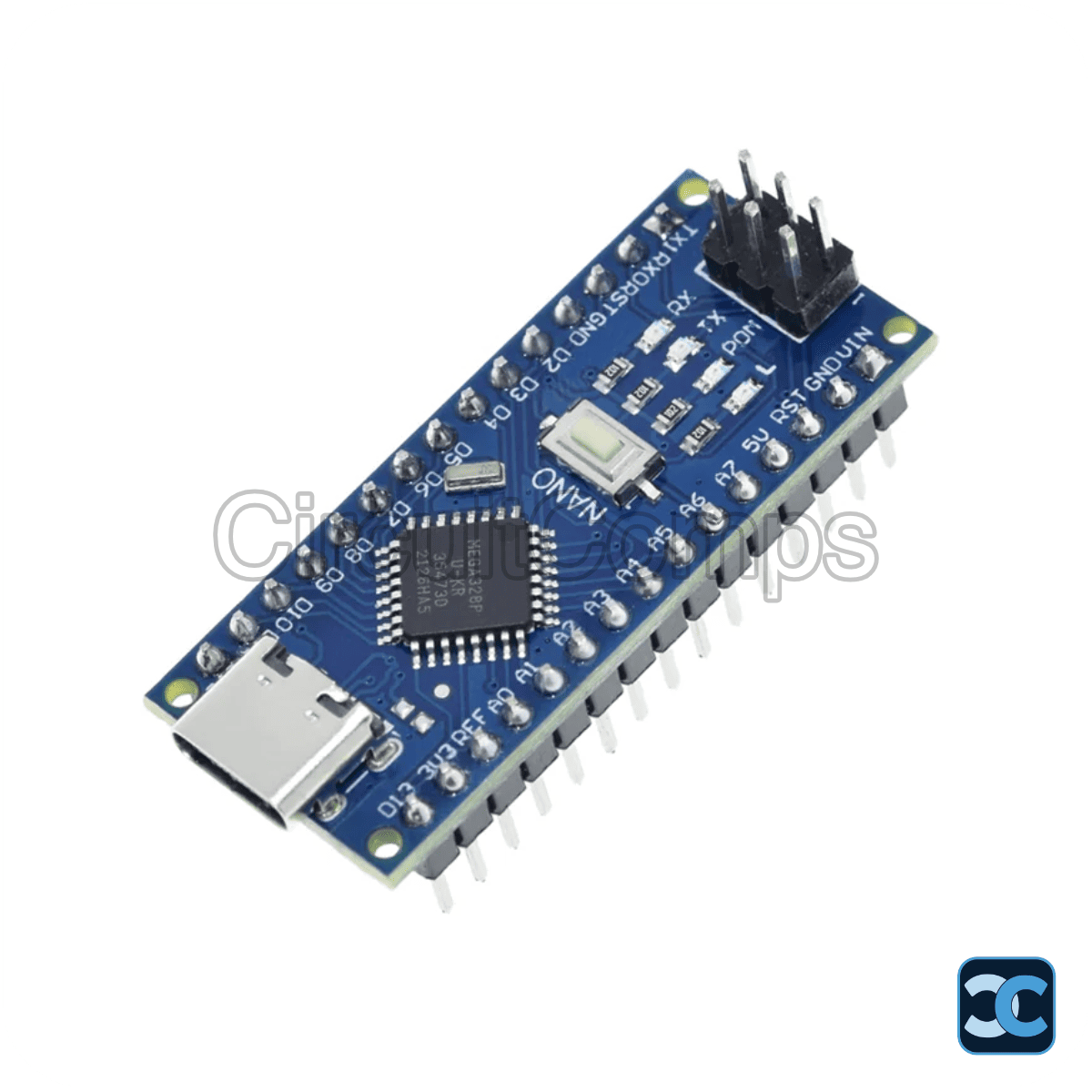

Arduino Nano V3.0 ATmega328P 5V/16MHz Type-C Development Board | CH340G Compatible Mini Microcontroller

The ATmega328P 5V Nano Type-C V3.0 Development Board (CH340G) is a compact and powerful microcontroller board designed for Arduino-compatible projects. Operating at 5V with a 16MHz crystal oscillator, this board offers the same performance as the Arduino Uno but in a smaller, breadboard-friendly form factor — ideal for DIY electronics, robotics, and IoT applications.

Built around the ATmega328P processor, this Nano V3.0 features a Type-C USB interface for modern connectivity and easier cable compatibility. The onboard CH340G USB-to-serial converter ensures smooth and reliable communication with your computer and the Arduino IDE.

It supports ISP programming, auto power selection, and can be powered via USB Type-C, 5V regulated input, or 6–20V unregulated external supply. With its compact size, this board is perfect for space-limited designs without sacrificing performance.

Key Features:

• Microcontroller: ATmega328P

• USB Interface: CH340G (Type-C)

• Operating Voltage: 5V

• Input Voltage (Recommended): 7–12V

• Input Voltage (Limits): 6–20V

• Clock Speed: 16 MHz

• Digital I/O Pins: 22

• Analog Input Pins: 8 (A0–A7)

• Flash Memory: 32 KB (2 KB used by bootloader)

• Breadboard-compatible design

• Supports Arduino IDE & ISP programming

Applications:

• DIY electronics and robotics

• Compact embedded systems

• IoT prototyping and sensor projects

• Educational and hobby electronics

Package Includes:

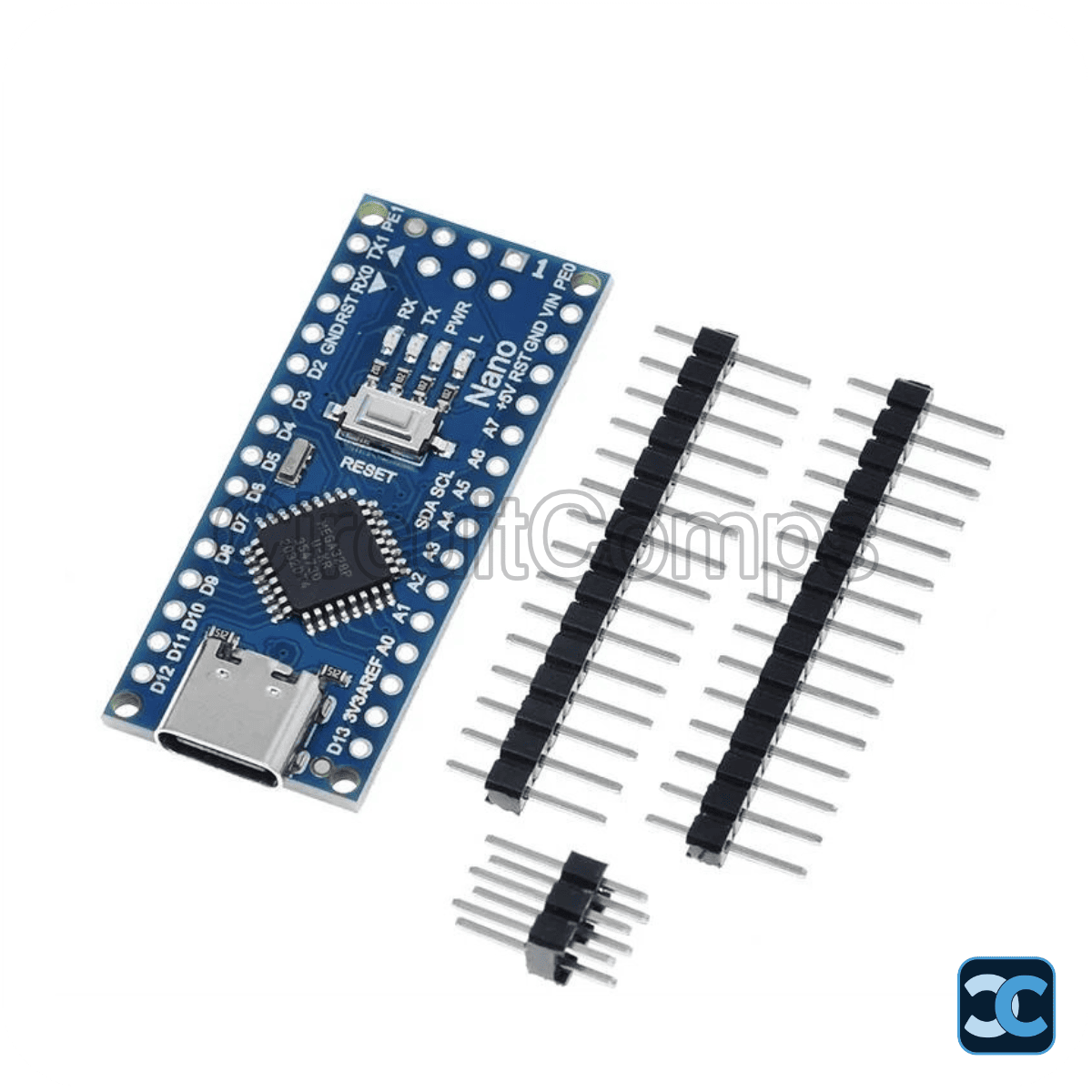

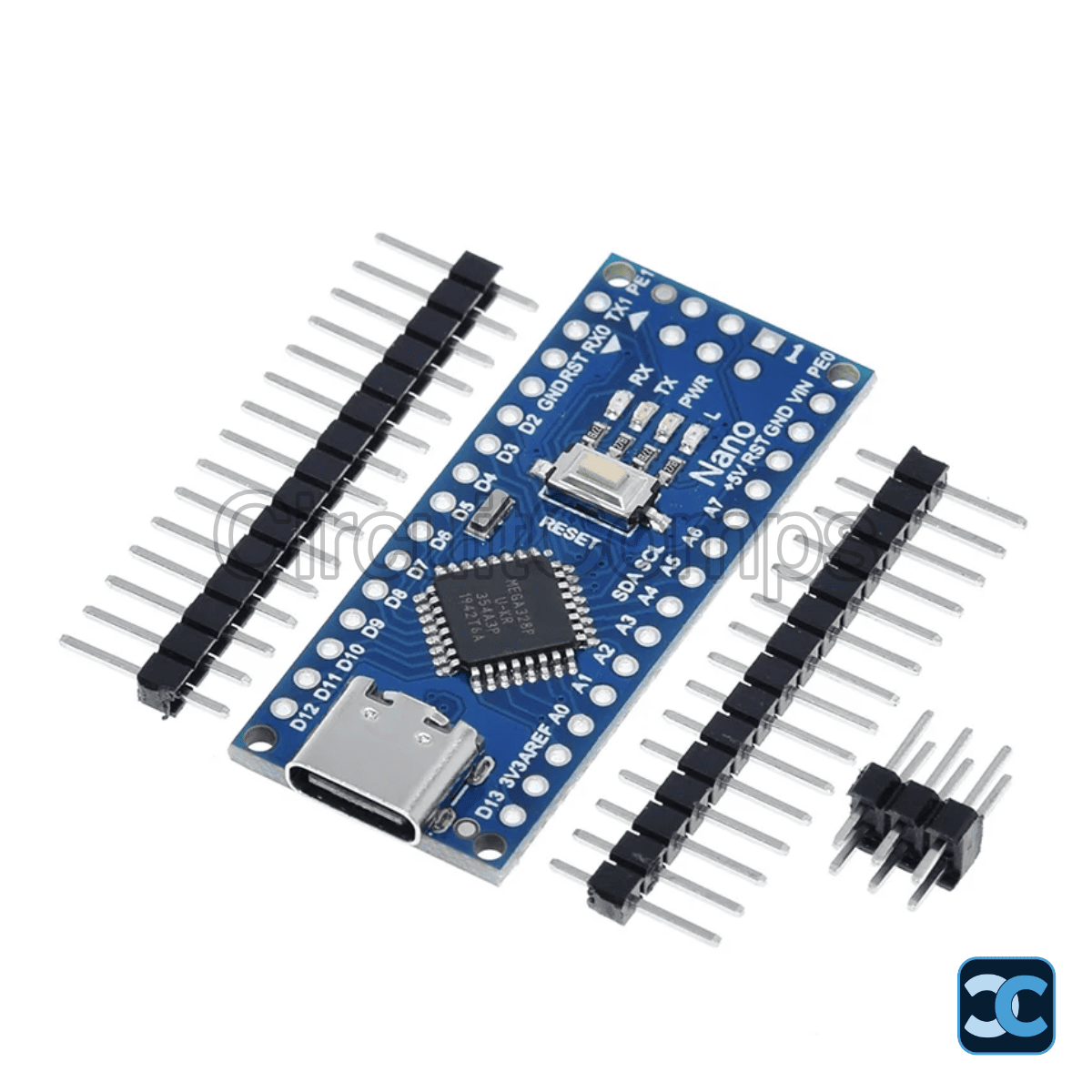

1 x ATmega328P 5V Nano Type-C V3.0 Development Board 16MHz CH340 – Unsoldered/Soldered
