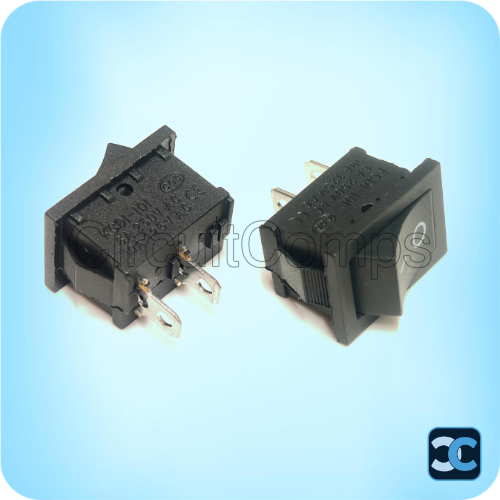

KCD1 Black Rocker Switch SPST ON/OFF Panel Mount 6A 250VAC 10A 125VAC

The KCD1 Black Rocker Switch is a compact, reliable SPST ON/OFF panel-mount switch designed for controlling AC-powered devices. Rated at 6A/250VAC and 10A/125VAC, it covers a wide range of household, automotive, marine, industrial, and DIY electronic applications. The snap-in clip design requires no screws or nuts — it simply clips into place via integrated tabs on the top and bottom of the housing. Positions are clearly marked with I (On) and O (Off) for instant identification during use.

With two large iron solder pins on the backside, installation is straightforward: cut one of the two power wires and solder each end to the pins. The rocker stays in position until physically pressed to the other state, providing reliable tactile ON/OFF control for your circuit or enclosure.

Key Specifications

• Model: KCD1
• Switch Type: SPST (Single Pole Single Throw)
• Function: ON / OFF

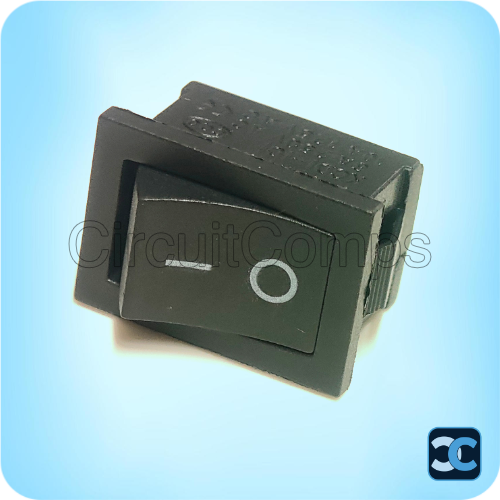

• Positions Marked: I (On) and O (Off)

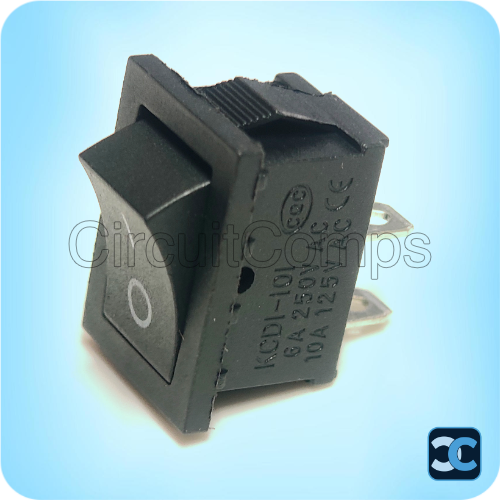

• Rated Current / Voltage: 6A @ 250VAC / 10A @ 125VAC

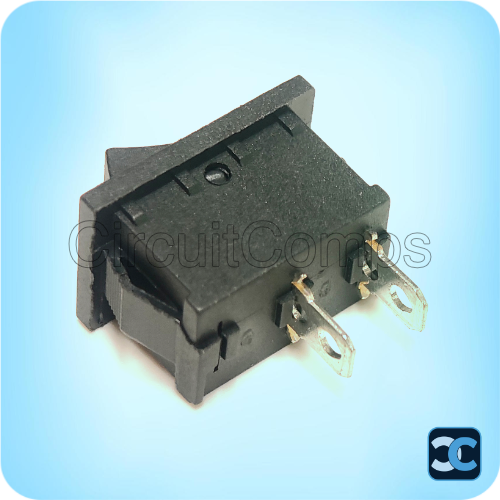

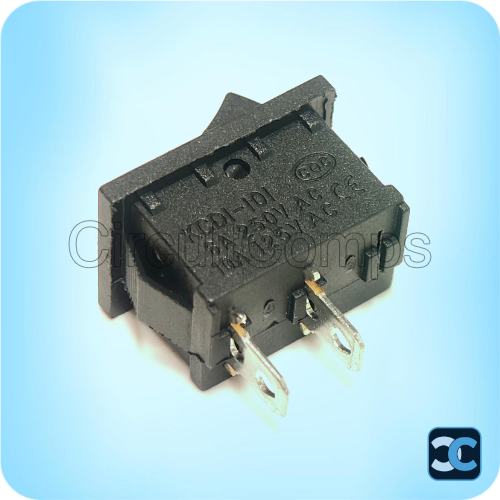

• Contact Pins: 2 x large iron solder pins
• Mounting: Snap-in, no screws or nuts required
• Bezel Size: 21mm × 14.8mm
• Panel Cutout: 11.6mm × 21mm
• Housing Color: Black
• Weight: 4.8g

Applications

• Household appliances and power tools requiring a simple ON/OFF control switch
• Automotive, motorcycle, and marine (boat) power control installations
• Water dispensers, machines, and general-purpose ON/OFF power circuits
• DIY electronics projects, robots, control panels, and custom enclosures
• Power supply units and AC mains switching circuits

Package Includes

• 1 x KCD1 Black Rocker Switch SPST ON/OFF Panel Mount

Note: Image is for representation purpose only.
