Round Rocker Switch KCD1-108 SPST ON/OFF 3A 250VAC 15mm Snap-In Panel Mount

Round Rocker Switch KCD1-108 SPST ON/OFF 3A 250VAC 15mm Snap-In Panel Mount

Name: Round Rocker Switch KCD1-108 SPST ON/OFF 3A 250VAC 15mm Snap-In Panel Mount
Brand: Circuitcomps
SKU: CC-000646
Price: 8.4 INR
Availability: InStock

Product SKU: CC-000646

Available:

Only 8 items in stock

8 items in stock

In stock

Pre-order

Out of stock

₹8.40

~~₹12.60~~

For B2B orders, contact us on sales@circuitcomps.com

Manufacturer Part No.

CC-000646
Model

KCD1-108
Device Type

SPST Round Rocker Switch
Switch Function

ON / OFF
Rated Current / Voltage

3A @ 250VAC
Pole & Throw

Single Pole Single Throw (SPST)
Terminals

2-pin
Mounting

Snap-in panel mount (no screws or nuts required)
Panel Cutout Diameter

ø15mm
Keyway Width

2mm (anti-rotation tab)
Total Keyway Height

15.2mm (from opposite side of circle)
Panel Thickness

1mm – 2.5mm
Bezel Outer Diameter

ö16.5 ± 0.2mm
Rocker Actuator Diameter

15 ± 0.1mm
Body Width (under bezel)

14.9 ± 0.2mm
Total Width (including retaining clips)

17.2 ± 0.2mm
Total Height

19.4 ± 0.2mm (top of rocker to bottom of pins)
Body Depth

12.4 ± 0.2mm (under lip to bottom of plastic body)
Bezel Height

1.6mm
Terminal Pin Spacing

5.0 ± 0.1mm
Terminal Width

3.5 ± 0.1mm
Weight

3g
Operating Function

Single pole single throw round rocker switch for AC mains ON/OFF control in snap-in 15mm panel-mount applications
Applications

Power control for electronic devices and DIY hobby projects, lighting systems and control panels, automotive and marine ON/OFF power installations, small appliances and equipment
Suitable For

Snap-in 15mm panel cutout with 1–2.5mm panel thickness
Features

SPST ON/OFF, 3A/250VAC rating, ø15mm snap-in mount, 2mm keyway anti-rotation tab, no screws required, detailed dimensional tolerances
Function

Provides reliable AC mains ON/OFF switching for appliances, lighting, automotive, and DIY electronic enclosures
Electrical Characteristics

3A @ 250VAC, SPST, 2-pin terminals, 5.0mm pin spacing, 3.5mm terminal width

Description
Specifications
Reviews

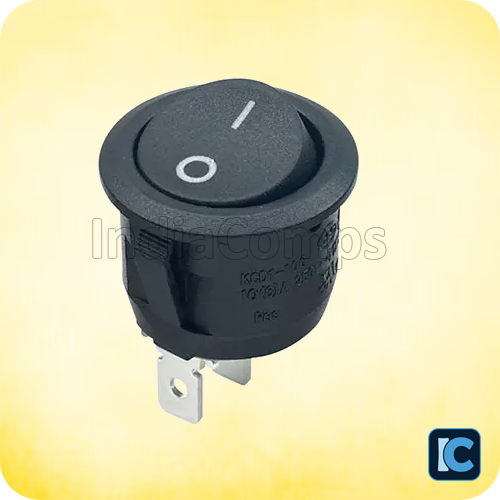

The KCD1-108 Round Rocker Switch is a compact SPST ON/OFF snap-in switch designed for reliable power control in electronic devices and appliances. Rated 3A @ 250VAC, it fits standard ø15mm panel cutouts with a keyway anti-rotation tab for secure, twist-proof mounting — no screws or nuts required. The durable plastic housing and metal contacts deliver dependable switching performance across a long operational life.

Key Specifications

Model: KCD1-108
Switch Type: SPST (Single Pole Single Throw)
Function: ON / OFF
Rated Current / Voltage: 3A @ 250VAC
Terminals: 2-pin
Mounting: Snap-in panel mount (no screws required)

Panel Cutout Dimensions

Main Diameter: ø15mm
Keyway Width: 2mm (anti-rotation tab)
Total Keyway Height: 15.2mm (from opposite side of circle)
Panel Thickness: 1mm – 2.5mm

Switch Body Dimensions

Bezel Outer Diameter: 16.5 ± 0.2mm
Rocker Actuator Diameter: 15 ± 0.1mm
Body Width (under bezel): 14.9 ± 0.2mm
Total Width (including retaining clips): 17.2 ± 0.2mm
Total Height: 19.4 ± 0.2mm (top of rocker to bottom of pins)
Body Depth: 12.4 ± 0.2mm (under lip to bottom of plastic body)
Bezel Height: 1.6mm
Terminal Pin Spacing: 5.0 ± 0.1mm
Terminal Width: 3.5 ± 0.1mm

Applications

Power control for electronic devices and DIY hobby projects
Lighting systems and control panel switching
Automotive and marine ON/OFF power installations
Small appliances and equipment power switching

Package Includes

1 x KCD1-108 Round Rocker Switch SPST ON/OFF

Note: Image is for representation purpose only.
