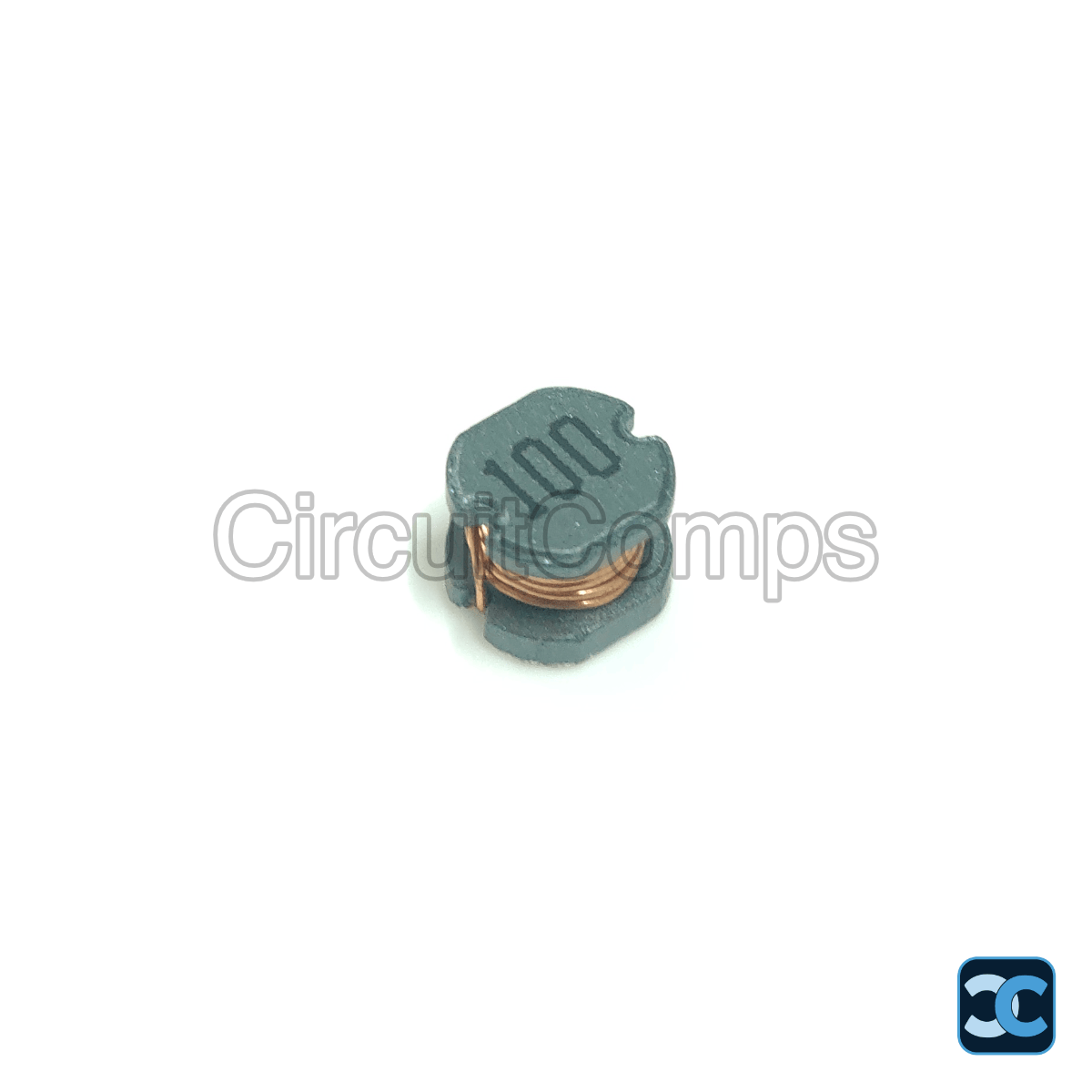

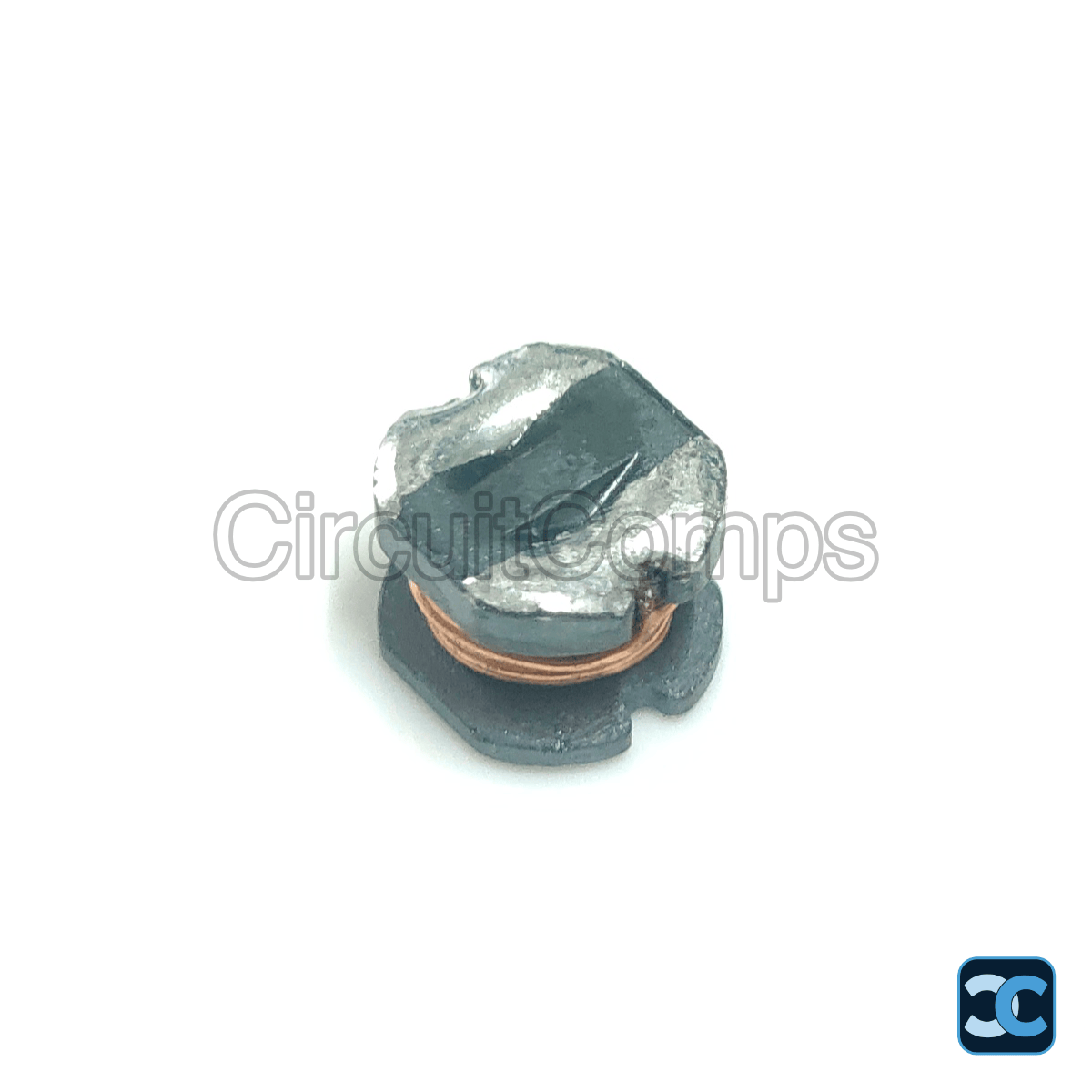

10µH 1.65A Low DCR SMD Power Inductor CD54

The CD54 10µH SMD Power Inductor features a 1.65A current rating and an exceptionally low DC resistance of 0.10Ω, housed in a compact 5.2×5.8×4.5mm package. Designed for high-efficiency power applications, it is ideal for switched-mode power supplies, DC-DC converters, power distribution filtering, LED drivers, and automotive electronics requiring reliable inductance in a compact SMD form factor.

Key Specifications

• Package: CD54 (SMD)
• Inductance: 10 µH
• Tolerance: ±10%
• Current Rating: 1.65A
• DC Resistance (DCR): 0.10 Ω
• Dimensions: 5.2mm × 5.8mm × 4.5mm
• Mounting Type: SMD (Surface Mount)
• Operating Temperature: -10°C to +70°C
• RoHS Compliant: Yes

Package Includes

• 1 x 10µH 1.65A Low DCR SMD Power Inductor CD54

Note: Image is for representation purpose only.
