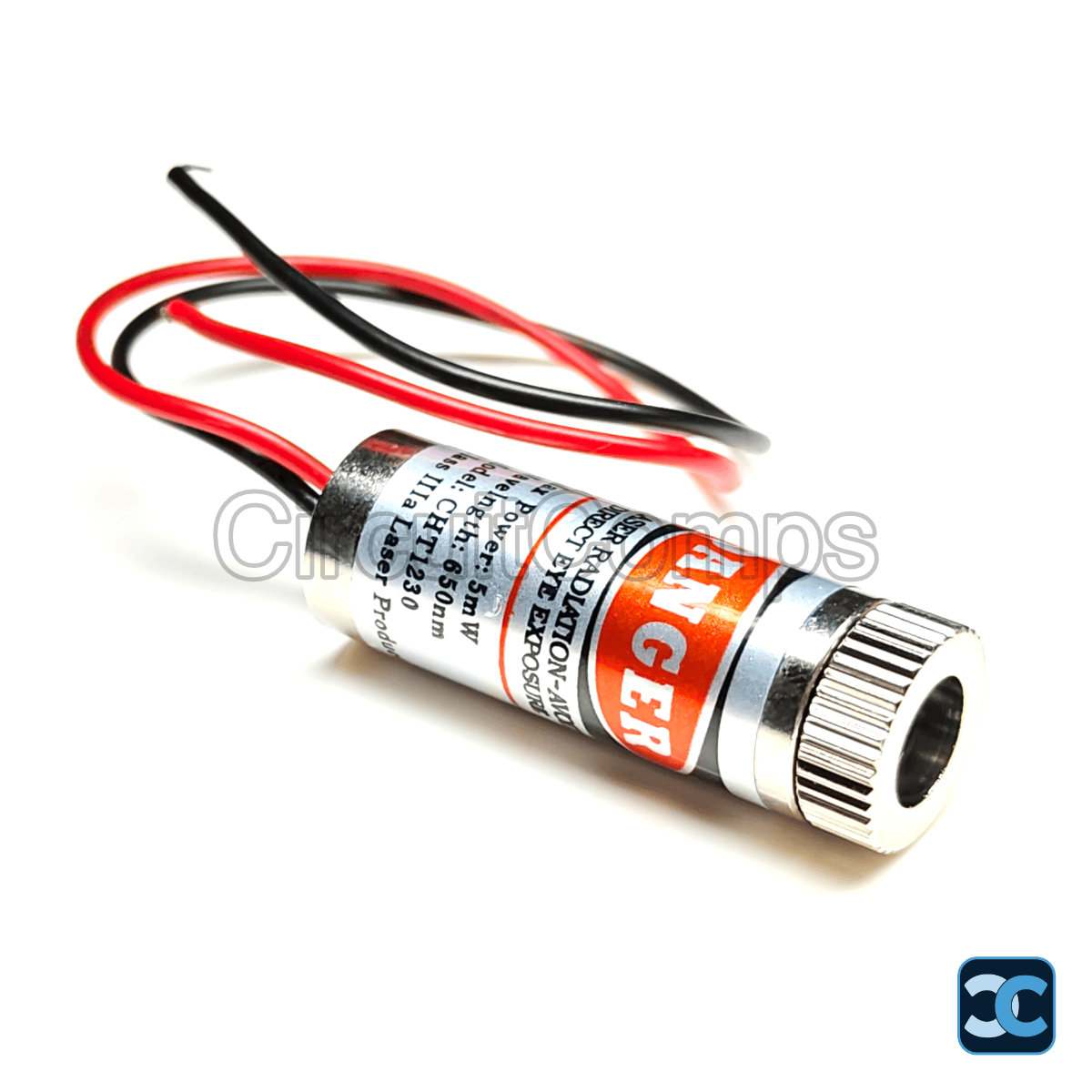

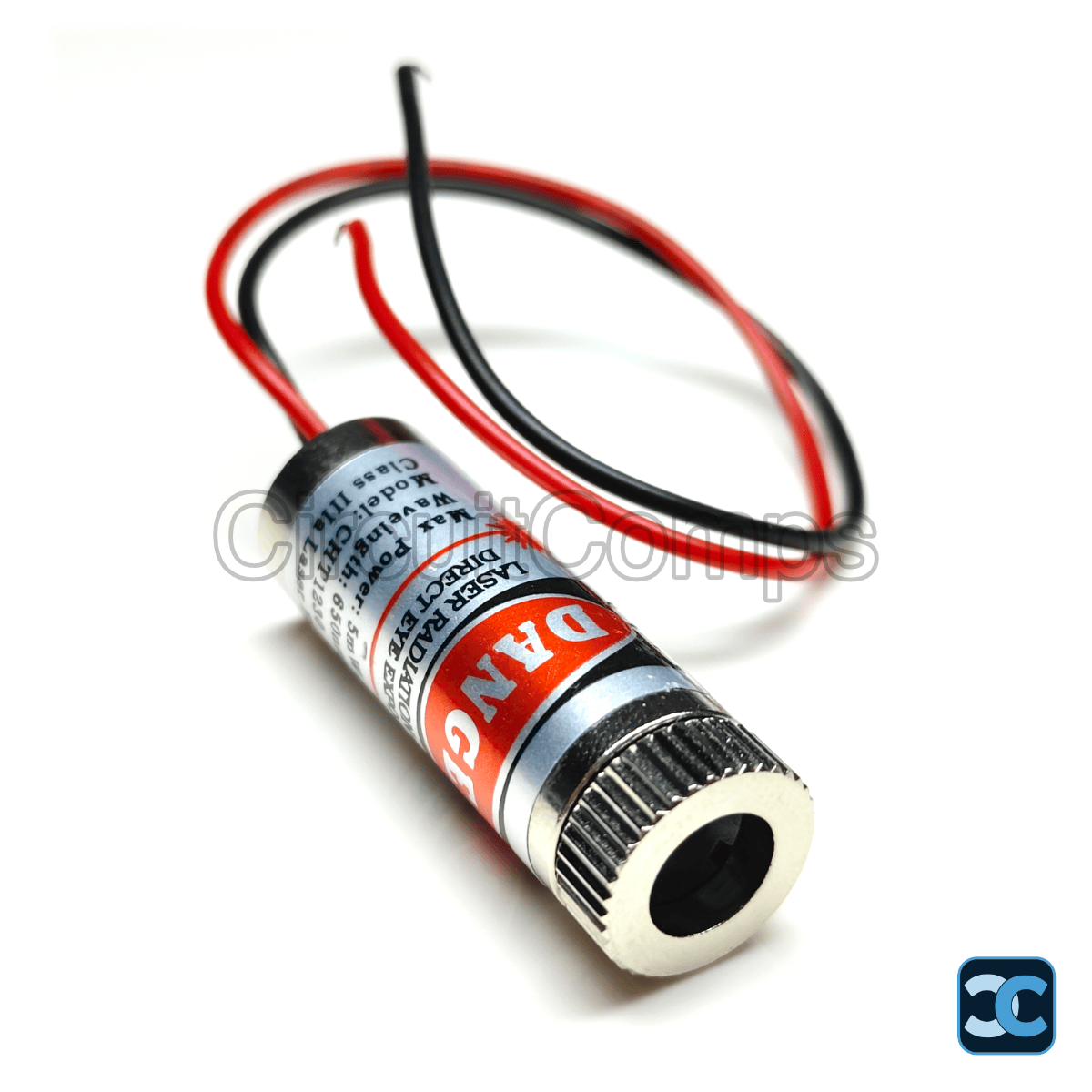

12mm 650nm 5mW Red Point Laser Module Adjustable Focus 3V-6V CHT1230

The 12mm CHT1230 Red Point Laser Module is a compact and reliable laser diode module designed for electronic projects, positioning systems, alignment applications, and DIY experiments. Operating from a 3V to 6V DC supply, it produces a bright 650nm red laser point with an output power of up to 5mW.

The module features an adjustable focus lens, allowing users to fine-tune the laser spot size and intensity according to application requirements. Its compact 12mm diameter housing and pre-attached power leads make installation simple and convenient for embedded systems, Arduino projects, robotics, laser sensors, and educational demonstrations. This module produces a red point laser only and does not generate a line or cross pattern.

Key Specifications

• Model: CHT1230
• Laser Output: Red Point
• Wavelength: 650 nm
• Operating Voltage: 3V – 6V DC
• Input Current: 40 mA
• Output Power: Min 2.5mW / Typical 3.0mW / Max 5.0mW
• Focus: Adjustable (threaded lens ring)
• Body Diameter: 12 mm
• Length: 35 mm
• Cable Length: 13 cm
• Wire Polarity: Red = Positive (Anode), Black = Negative (Cathode)
• Approximate Weight: 14 g

Safety Information

• Emits a visible 650nm red laser beam with up to 5mW output power.
• Always avoid direct eye exposure to the laser beam.
• Never point the laser at people or animals.
• Use appropriate laser safety eyewear during testing or alignment when necessary.

Package Includes

• 1 x 12mm 650nm 5mW Red Point Laser Module Adjustable Focus 3V-6V CHT1230

Note: Image is for representation purpose only.
