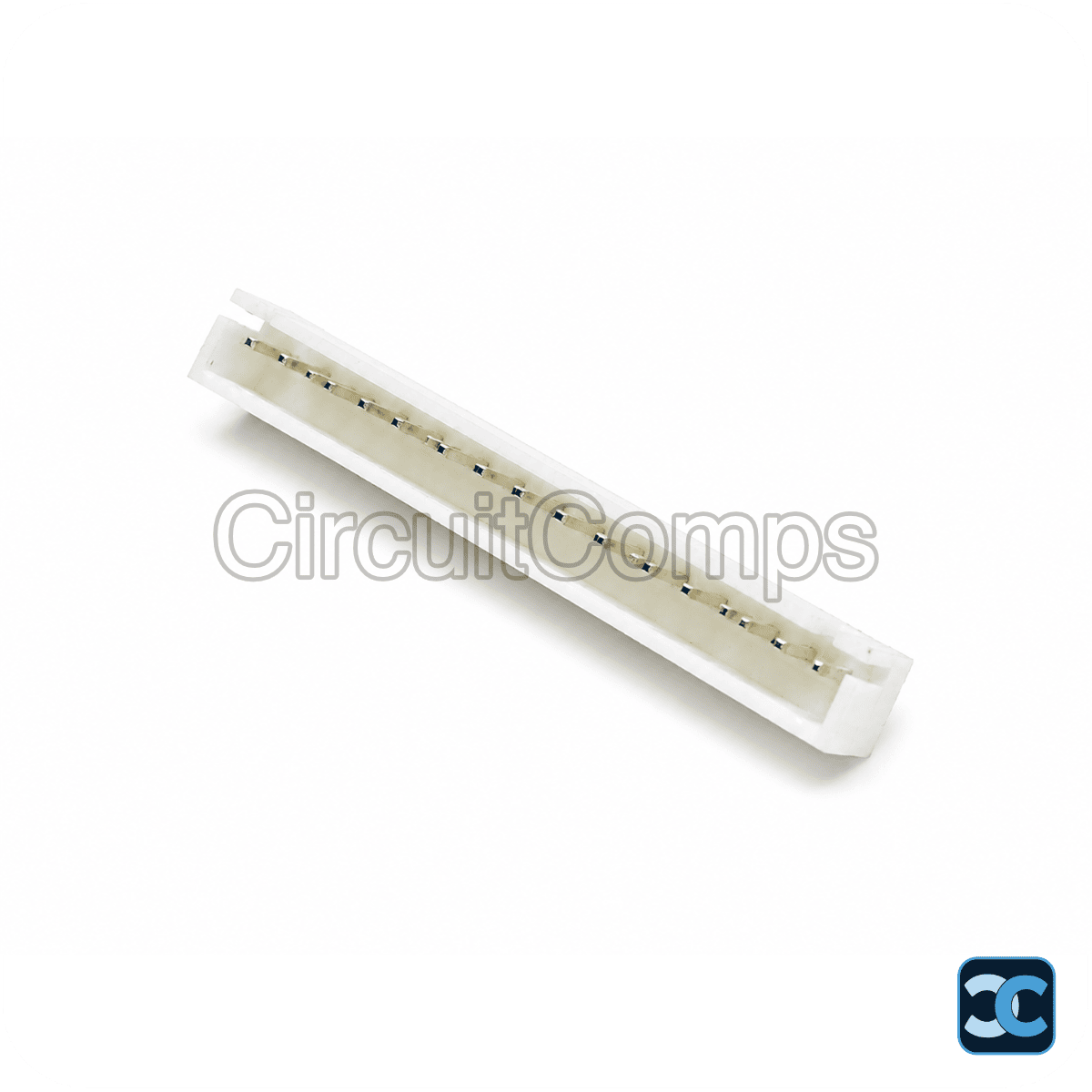

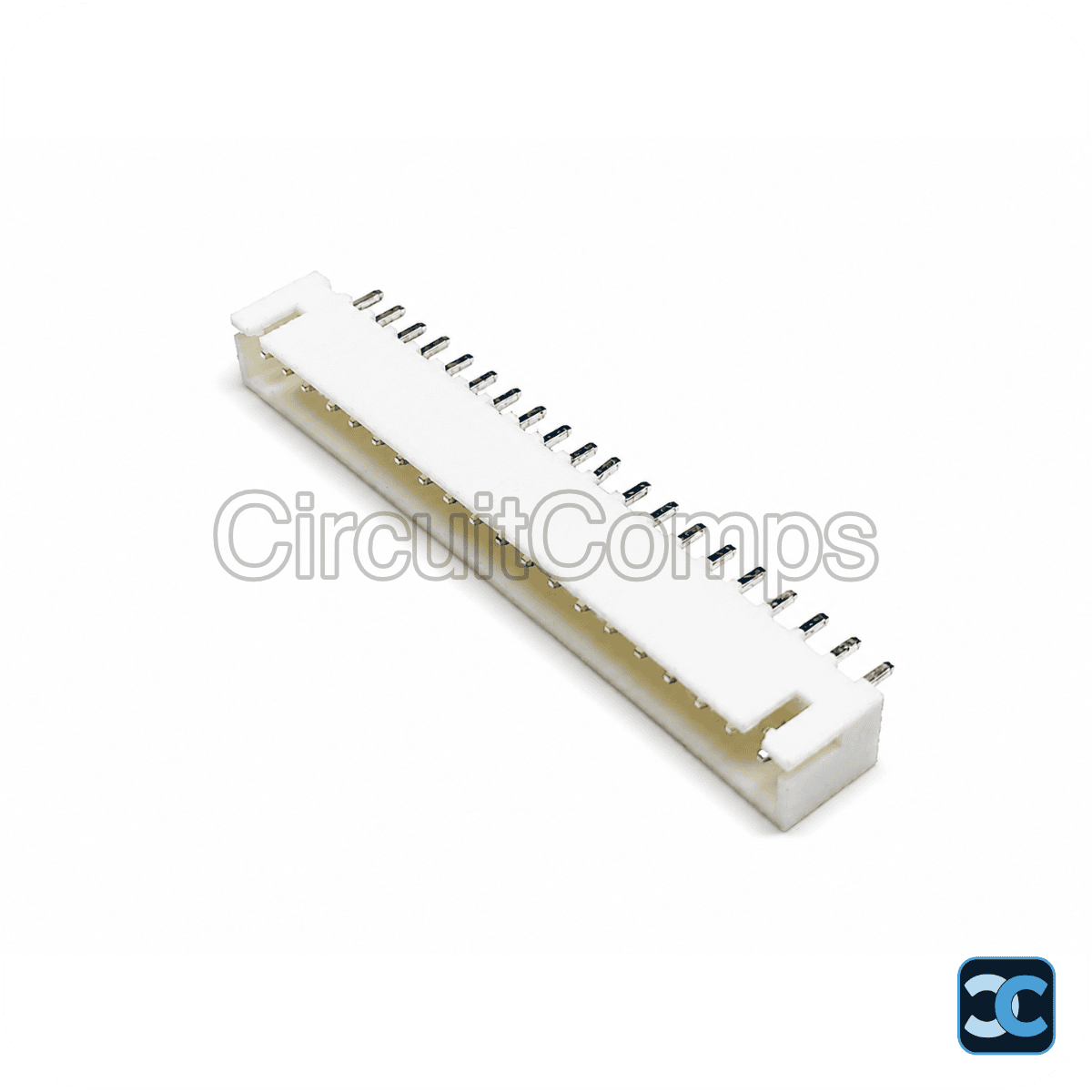

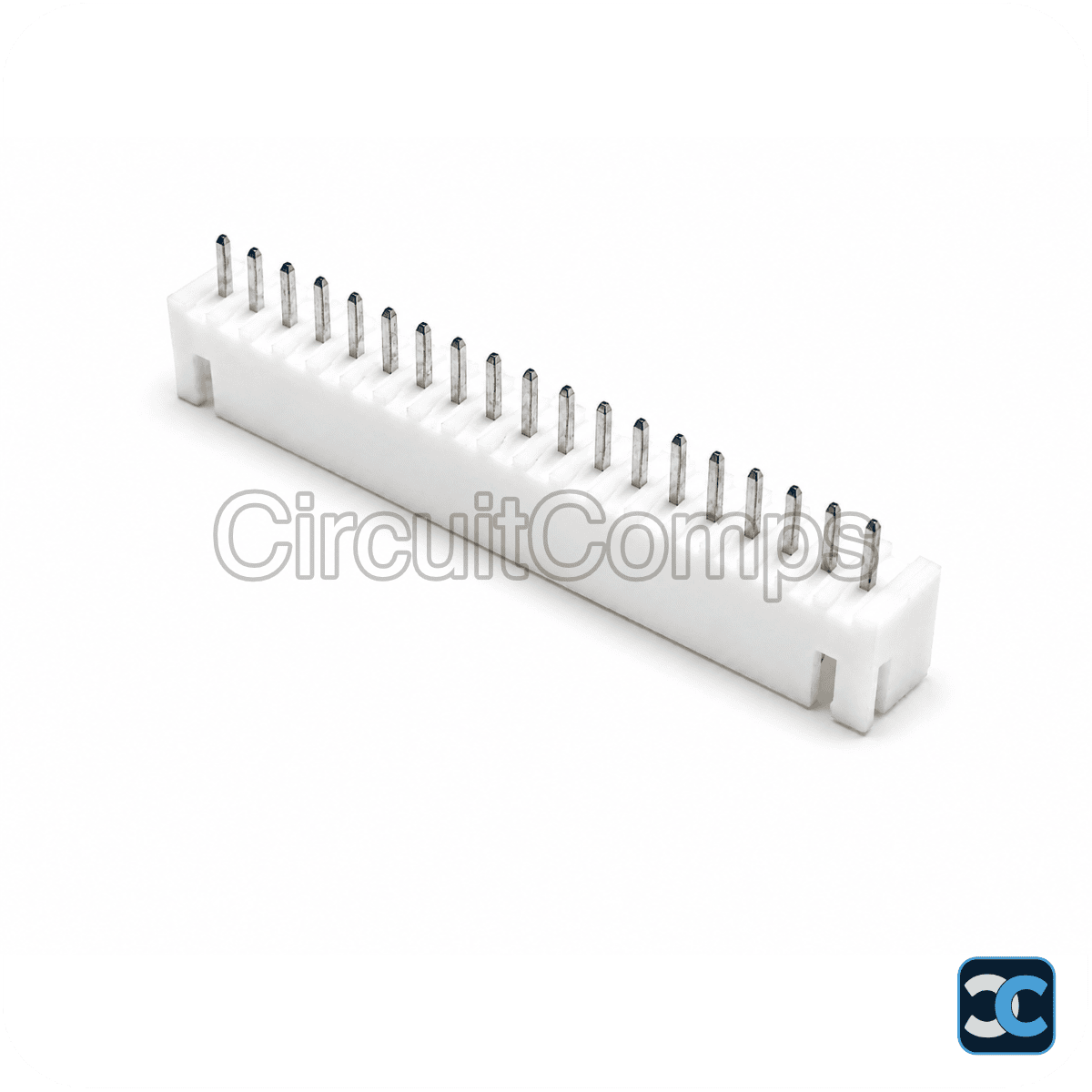

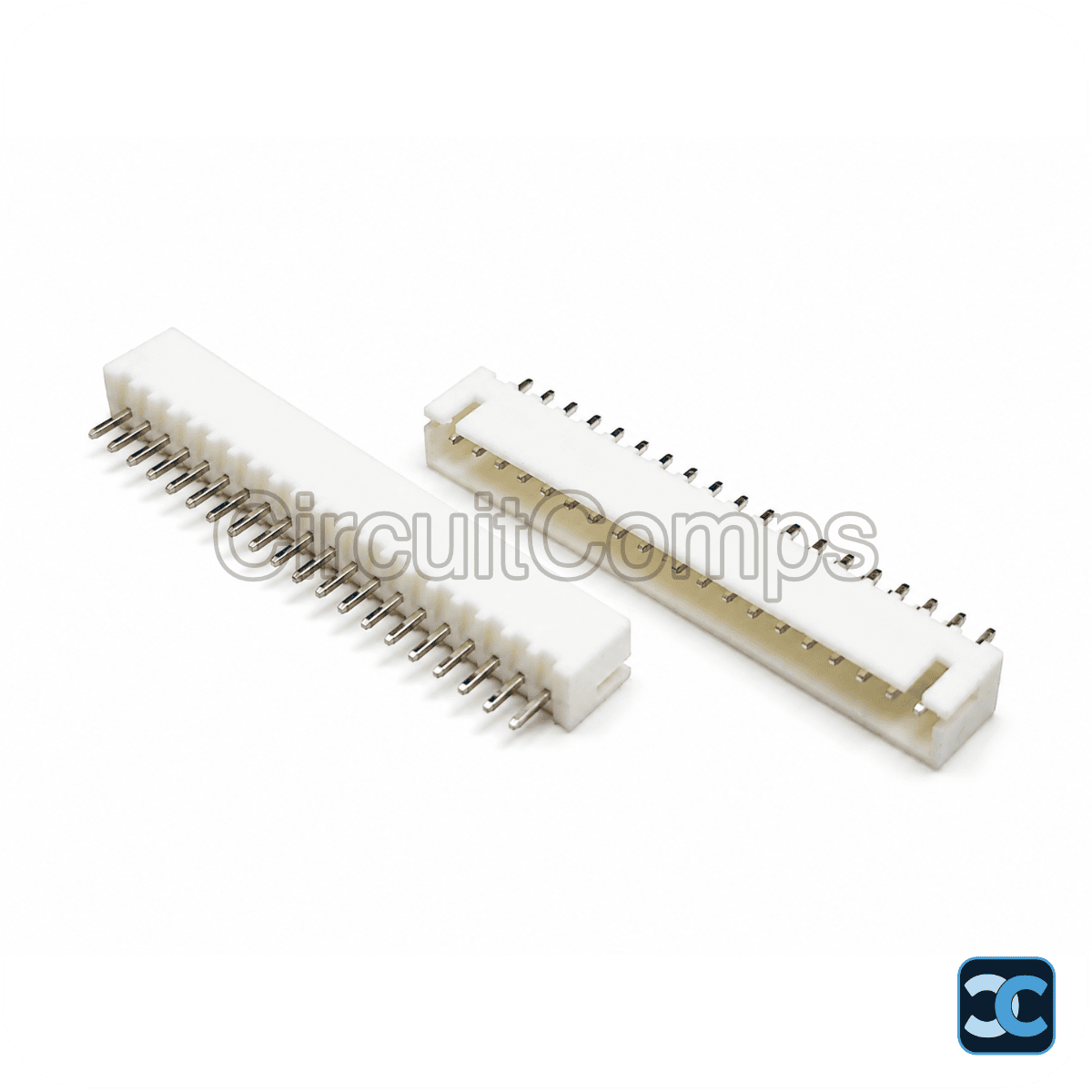

20-Pin JST XH 2.54mm Top Entry Vertical Header – PCB Mount Through-Hole

The 20-Pin JST XH 2.54mm Top Entry Vertical Header is a straight through-hole PCB connector designed to securely mate with standard 20-pin JST XH female wire housings. Featuring an integrated polarization shroud that physically prevents reverse insertion, tin-plated brass pins for excellent solderability, and robust through-hole anchoring for repeated plug-unplug cycles, it is ideal for complex multi-axis automation mainboards, high-resolution display and keypad interfaces, graphic LCDs, touch panels, and high-density CNC or industrial controller frameworks.

Key Specifications

• Connector Type: Male Header Pin Shroud
• Pin Count: 20 Positions
• Pitch (Spacing): 2.54 mm (0.1 inch)
• Mounting Angle: Straight / 180° (Top Entry / Vertical)
• Mount Type: PCB Through-Hole Solder (THT)
• Rated Current: 3 A AC/DC per pin
• Rated Voltage: 250 V AC/DC (maximum)
• Contact Material: Tin-plated brass
• Housing Insulation: Nylon (UL94V-0, Flame-Retardant)
• Operating Temperature: −25°C to +85°C
• Polarization: Integrated shroud – error-proof, reverse insertion prevention
• Compatibility: All standard 20-pin JST XH female crimp wire housings

Package Includes

• 1 x 20-Pin JST XH 2.54mm Top Entry Vertical PCB Header

Note: Image is for representation purpose only.
