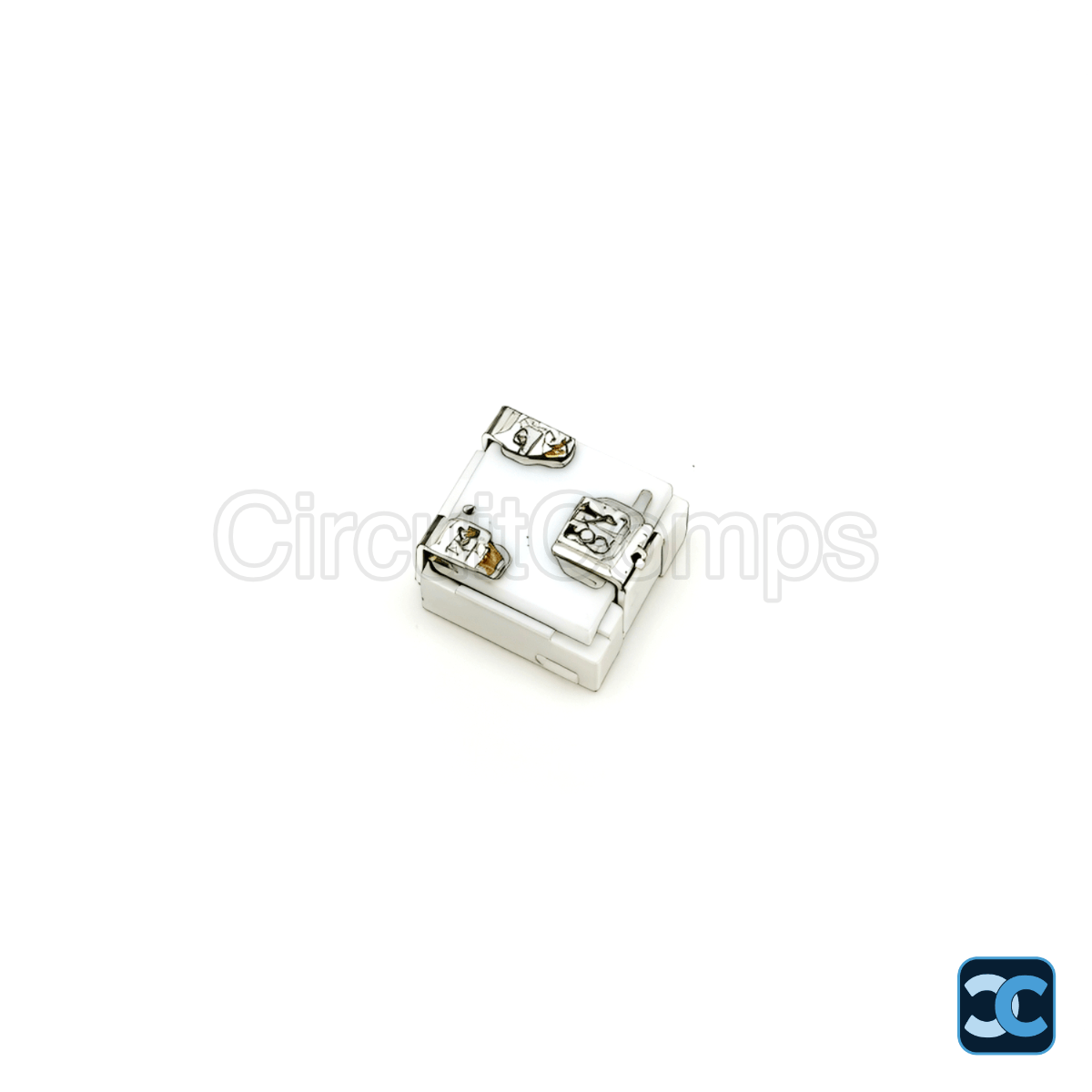

200K Ohm Single-Turn Cermet Trimmer Resistor SMD Vertical Bourns

The Bourns 3313 series 3313J-1-204E is a 200K Ohm single-turn cermet SMD trimmer resistor with vertical top-slot adjustment. With ±20% tolerance, 125mW power rating, 100 PPM/°C temperature coefficient, and a wide operating temperature range of -55°C to +125°C, it is ideal for precision circuit calibration, bias adjustment, gain setting, and fine-tuning in analog and mixed-signal electronic designs.

Key Specifications

• Manufacturer: Bourns
• Manufacturer Part No.: 3313J-1-204E
• Series: 3313
• Resistance: 200K Ohm
• Tolerance: ±20%
• Power Rating: 125 mW (1/8W)
• Number of Turns: 1 (Single Turn)
• Element Type: Cermet
• Adjustment: Top Slot (Vertical)
• Temperature Coefficient: 100 PPM/°C
• Termination Style: SMD/SMT
• Operating Temperature: -55°C to +125°C
• RoHS Compliant: Yes

Package Includes

• 1 x 200K Ohm Single-Turn Cermet Trimmer Resistor SMD Vertical Bourns

Note: Image is for representation purpose only.
