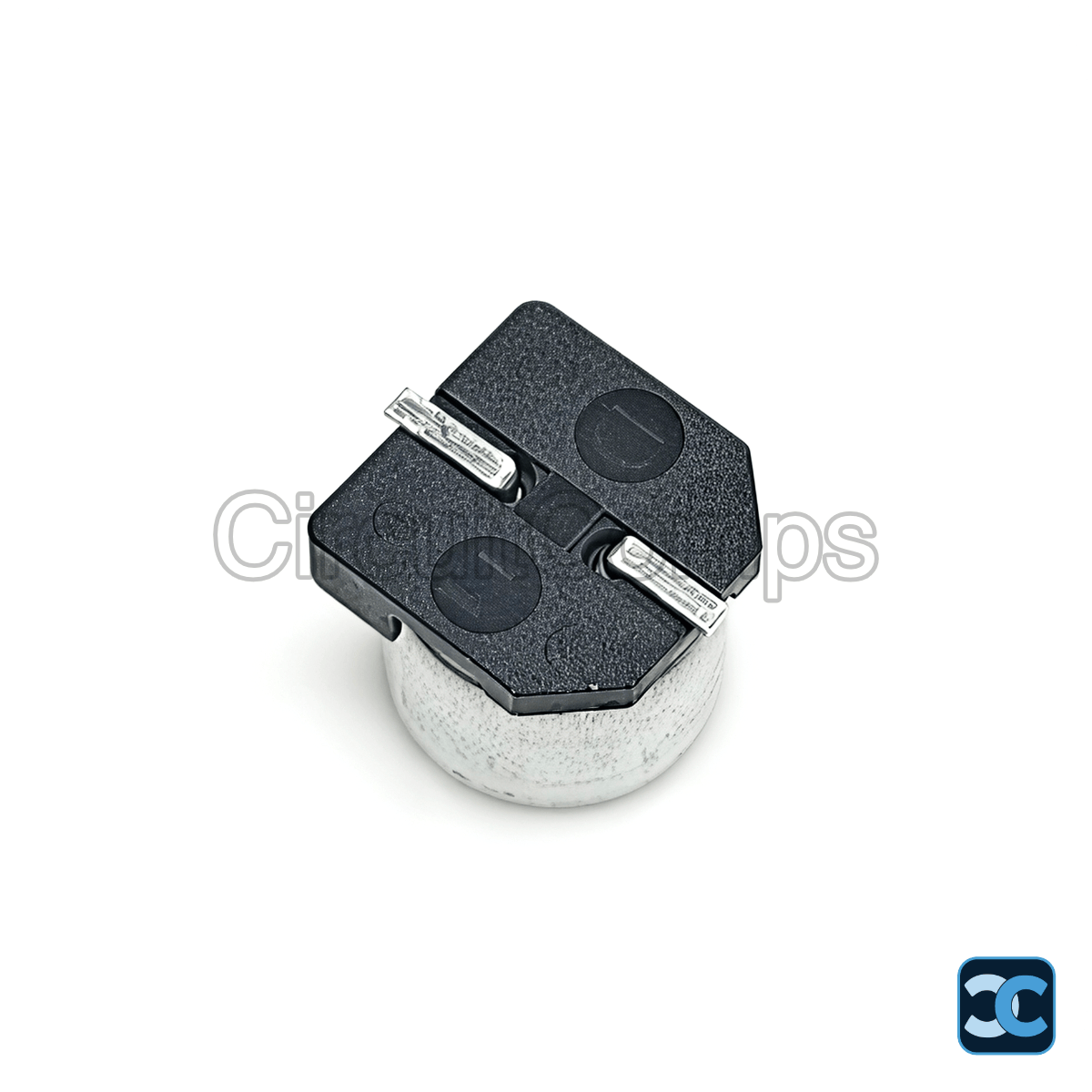

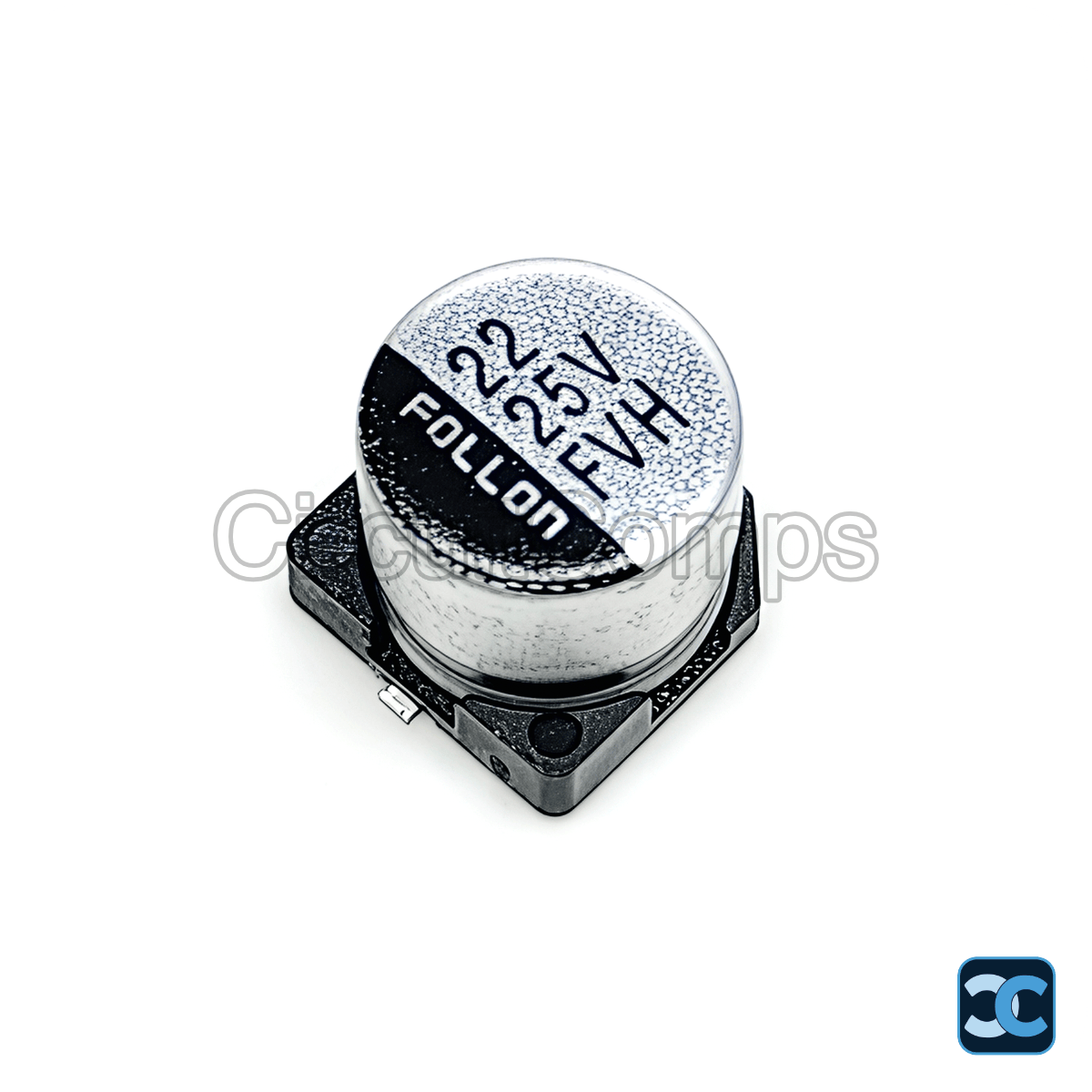

22uF 25V 20% SMD Aluminum Electrolytic Capacitor 6.3x5.4mm Follon

The Follon FVH series 22µF 25V SMD aluminum electrolytic capacitor features a compact D6.3×L5.4mm footprint and ±20% tolerance. Designed for power supply filtering, voltage smoothing, decoupling, DC-DC converter filtering, and general-purpose energy storage in consumer electronics, industrial power systems, LED drivers, and audio equipment applications.

Key Specifications

• Manufacturer: Follon
• Manufacturer Part No.: EFVH025ADA220M0654
• Series: FVH
• Capacitance: 22 µF
• Voltage Rating: 25V
• Tolerance: ±20%
• Dimensions: D6.3 × L5.4 mm
• Mounting Type: SMD (Surface Mount)
• Operating Temperature: -55°C to +105°C
• RoHS Compliant: Yes

Package Includes

• 1 x 22uF 25V 20% SMD Aluminum Electrolytic Capacitor 6.3x5.4mm Follon

Note: Image is for representation purpose only.
