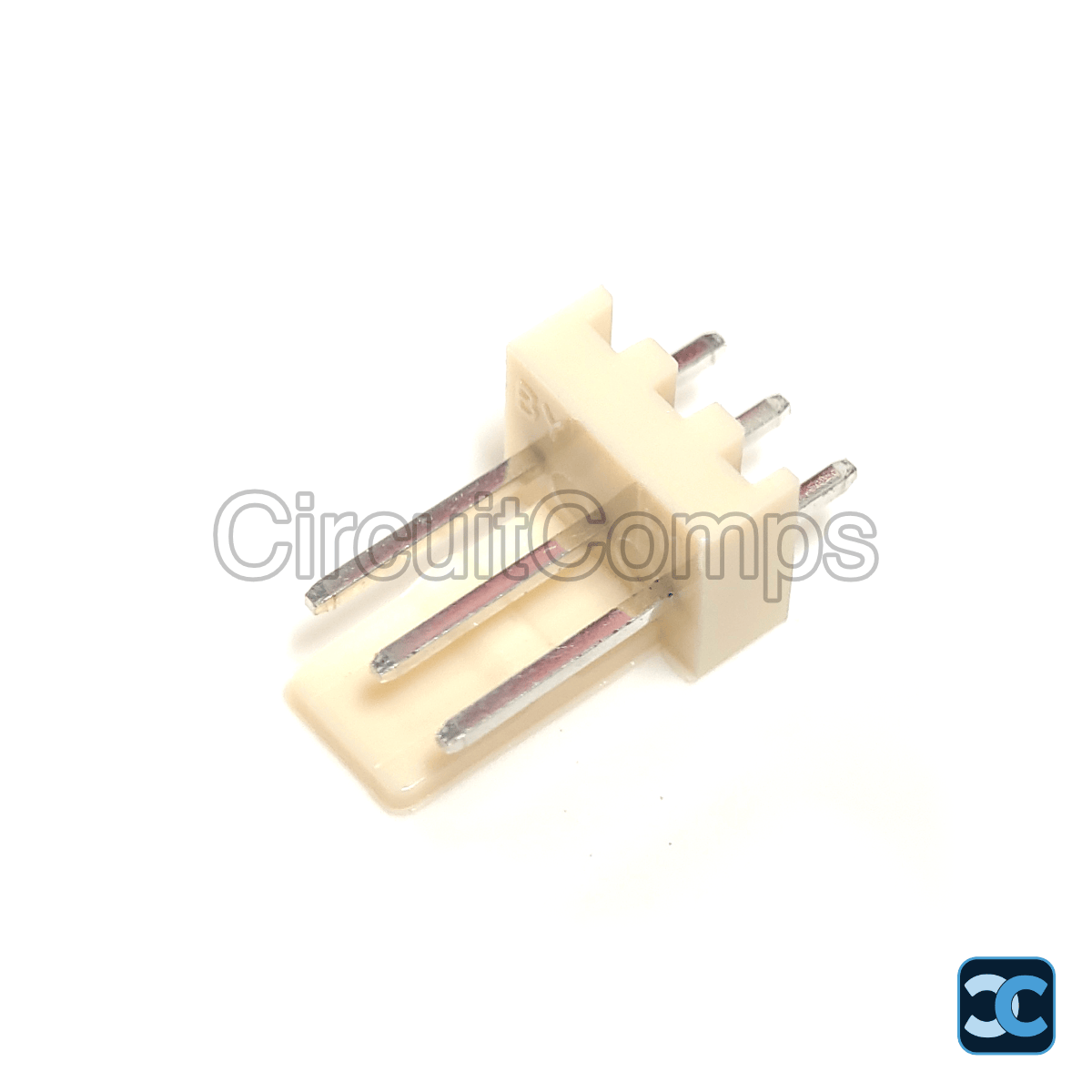

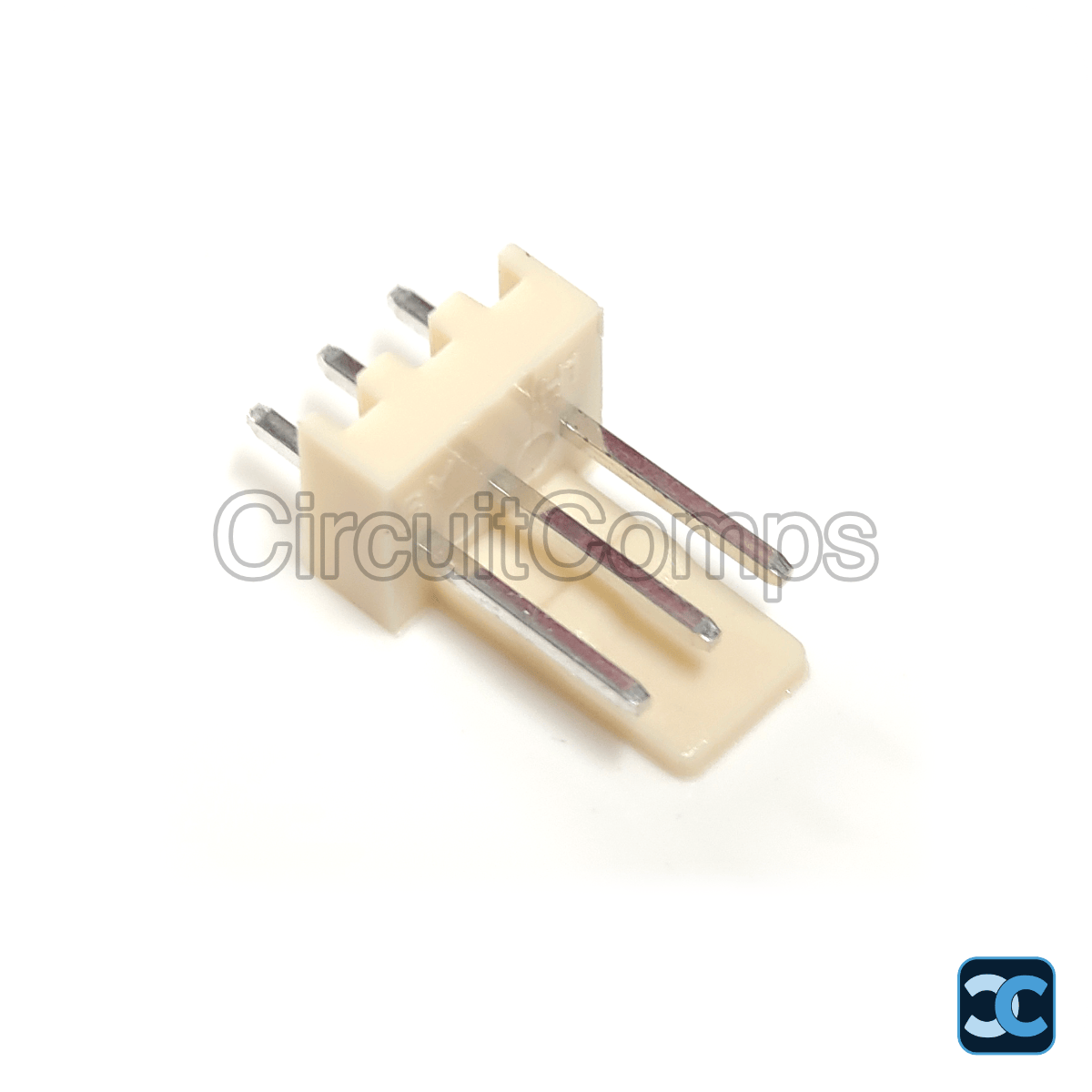

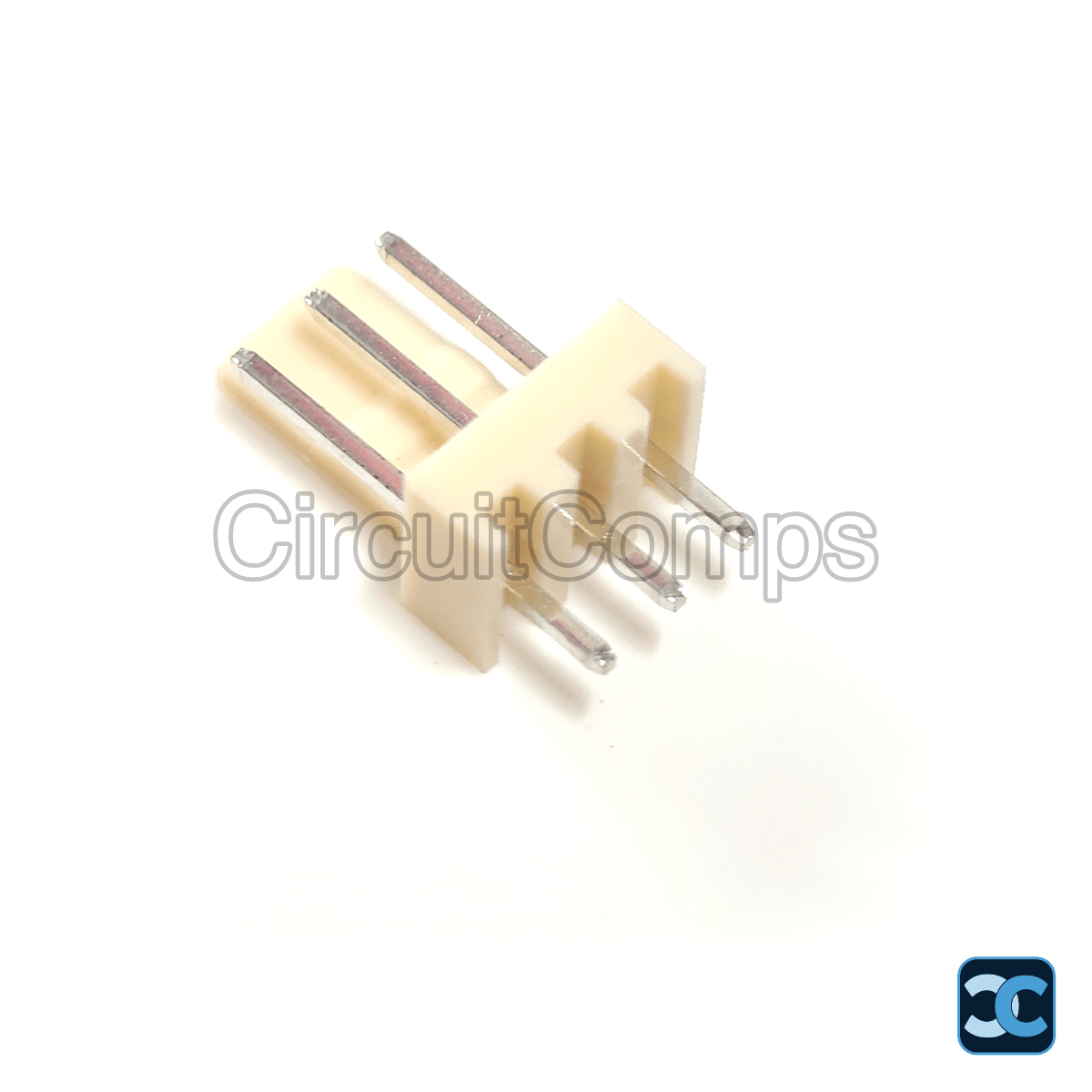

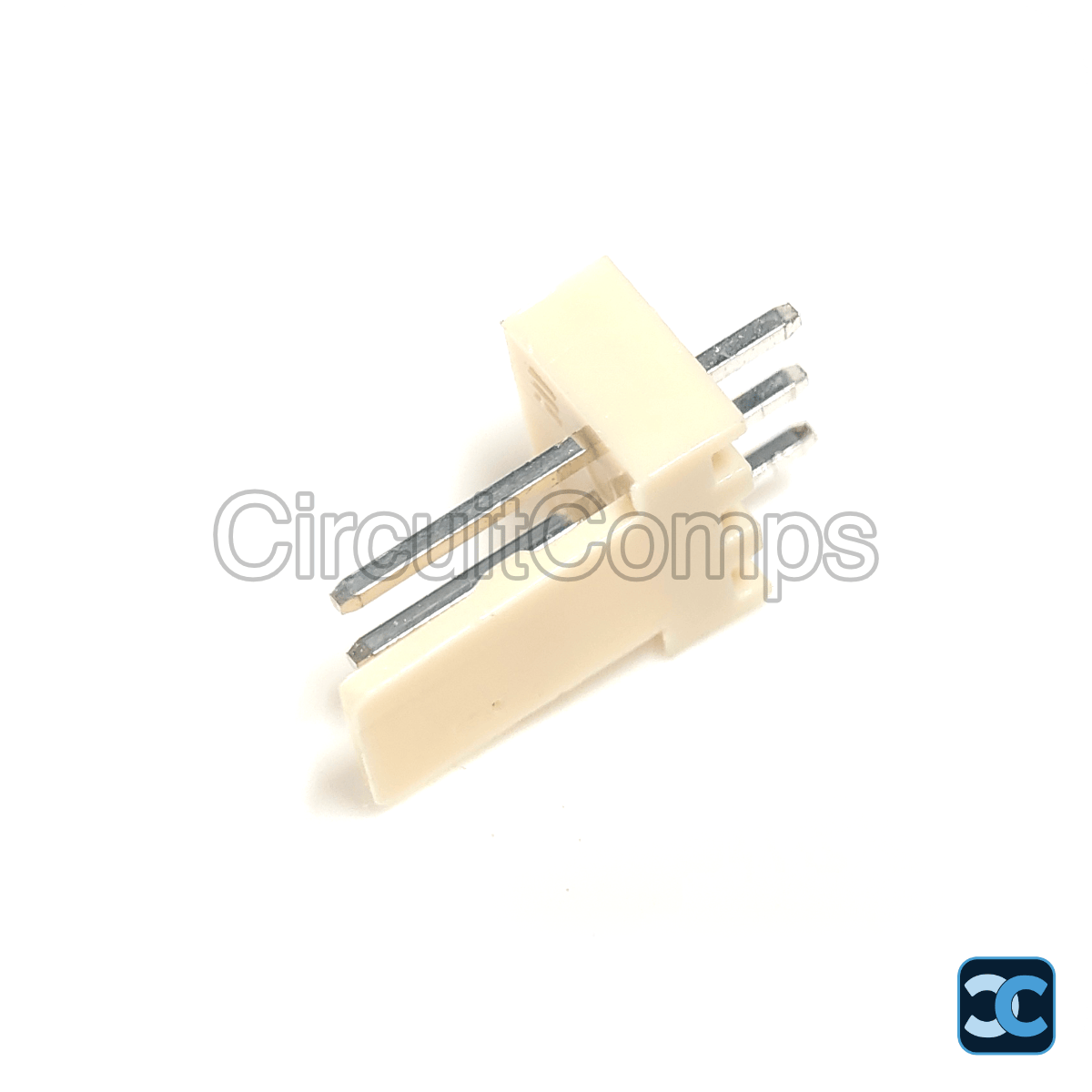

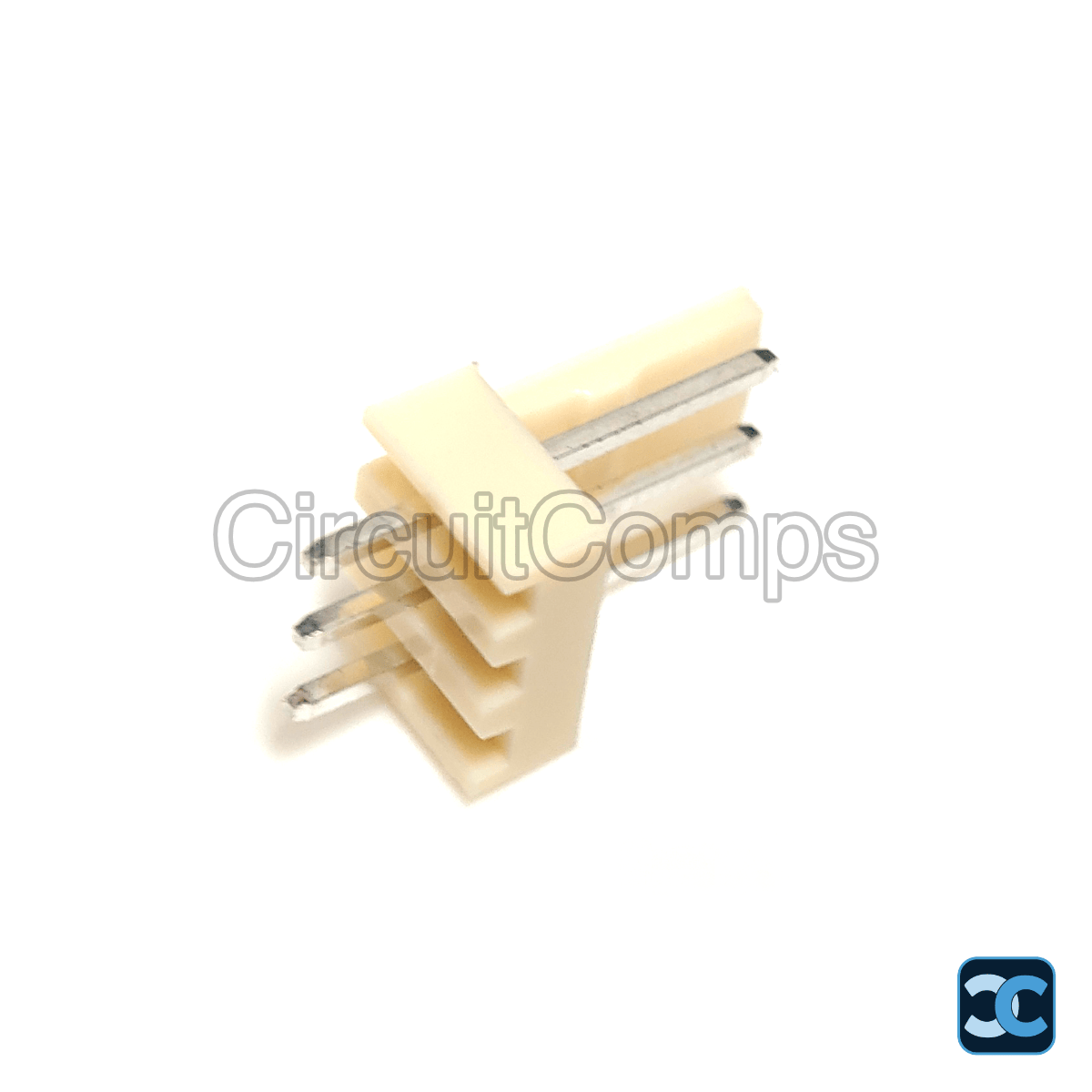

3-Pin Relimate Male Connector 2.5mm Through Hole BOYU

The BOYU 2510-A is a 3-pin Relimate male connector with a 2.5mm pitch in a through-hole straight mounting configuration. Rated at 3A and 250V AC/DC with a 20mΩ max contact resistance and AWG #28 to #22 wire compatibility, it is ideal for power distribution, signal routing, modular equipment interconnection, industrial control panels, and sensor integration applications.

Key Specifications

• Manufacturer: BOYU
• Manufacturer Part No.: 2510-A
• Number of Pins: 3
• Pitch: 2.5 mm
• Connector Type: Relimate Male (Header)
• Mounting Type: Through Hole Straight
• Current Rating: 3A (AC/DC)
• Voltage Rating: 250V (AC/DC)
• Contact Resistance: 20 mΩ max
• Wire Compatibility: AWG #28 to #22
• Operating Temperature: -20°C to +85°C
• RoHS Compliant: Yes

Package Includes

• 1 x 3-Pin Relimate Male Connector 2.5mm Through Hole BOYU

Note: Image is for representation purpose only.
