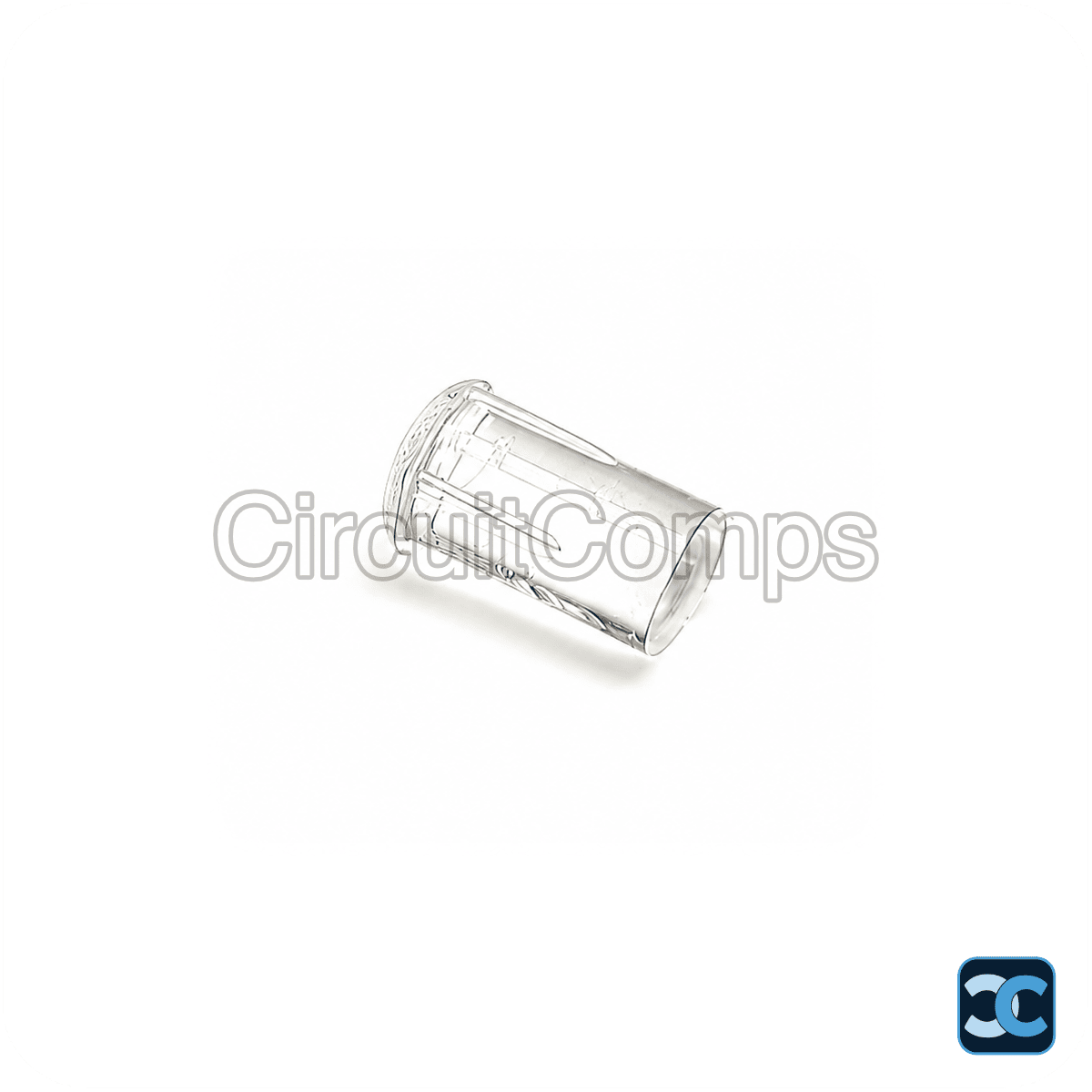

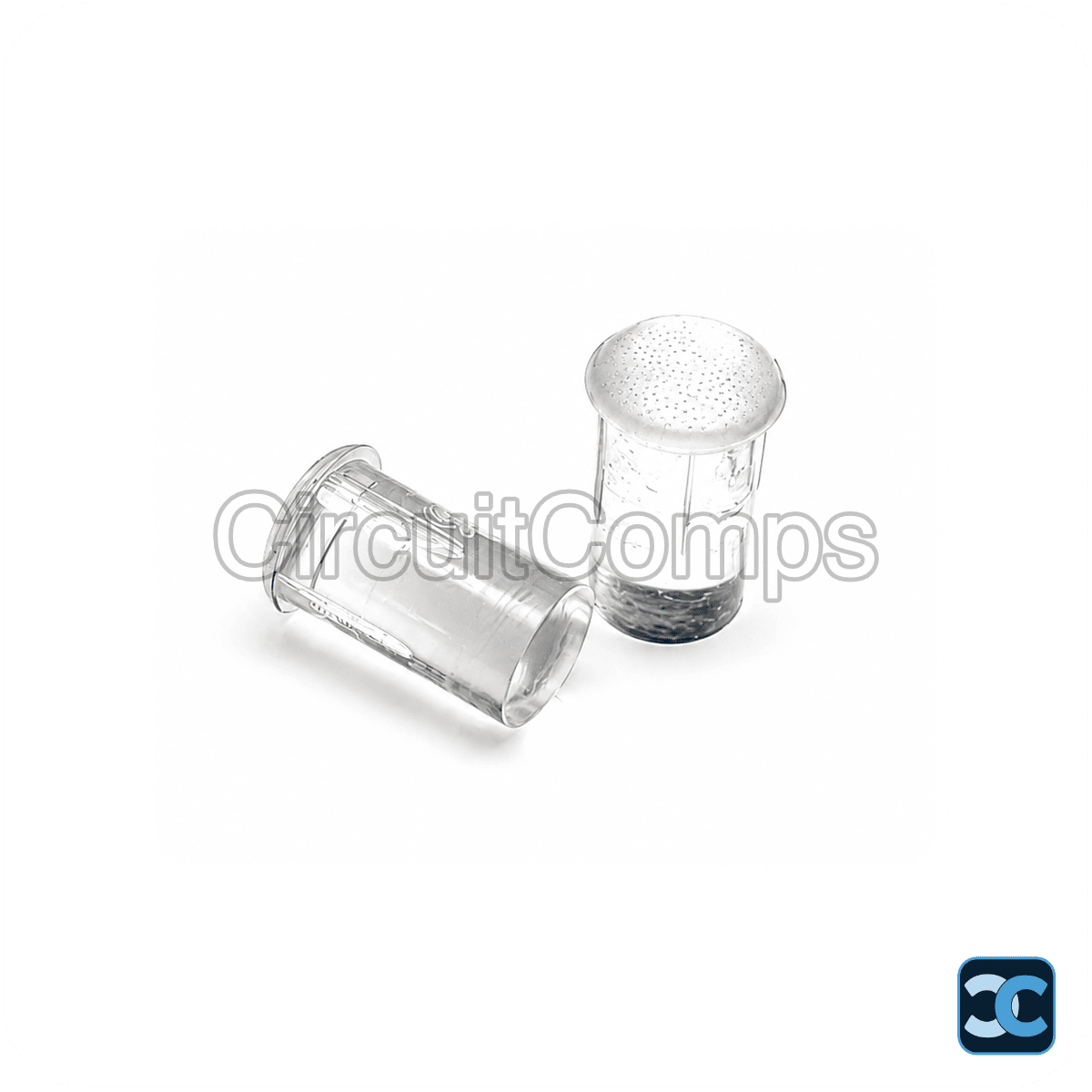

5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm
5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm
5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm
5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm
Circuitcomps

5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm

Product SKU: CC-000888
Available:
Only 10 items in stock
10 items in stock
In stock
Pre-order
Out of stock
Incoming: 0 more units expected on
₹8.40
₹9.45
Notify me When Available
You will receive an email when the product is available.

For B2B orders, contact us on sales@circuitcomps.com

Key Specifications
View full specs
  • Product Type
    Straight LED Light Guide
  • Length
    5.5mm
  • Mounting Type
    Press-Fit
  • Enclosure Hole Size
    2.8mm
  • Compatibility
    SMD LEDs
  • Light Transmission
    Direct PCB-to-Panel Light Transfer
  • Installation Method
    Tool-Free Press-Fit Installation
  • Material Type
    Optical-Grade Transparent Plastic
  • Guide Style
    Straight
  • Indicator Type
    LED Light Pipe
  • Retention Method
    Friction Fit in Enclosure Hole
  • Application
    LED Status Indicators
  • Suitable For
    PCB-Mounted SMD LEDs
  • Assembly Compatibility
    Electronic Enclosures and Control Panels
  • Design Purpose
    Light Routing from PCB to External Panel Surface
  • Features
    Compact Size, Secure Mounting, Professional Indicator Appearance
  • Applications
    Consumer Electronics, Industrial Equipment, Control Panels, Instrumentation, Embedded Systems
  • Description
  • Specifications

The 5.5mm Straight LED Light Guide is a precision-engineered solution for directing light from a surface-mount (SMD) LED on your PCB directly to the exterior of your device enclosure. Designed for a clean, professional indicator look, it efficiently bridges the gap between PCB-mounted LEDs and the enclosure surface with a simple press-fit installation — no adhesives or additional hardware required.

Key Specifications

  • Product Type: Straight Light Guide
  • Length: 5.5 mm
  • Enclosure Hole Size: 2.8 mm (Press-fit)
  • Compatibility: SMD LED
  • Installation: Press-fit into 2.8 mm drilled enclosure hole

Package Includes

  • 1 x 5.5mm Straight LED Light Guide for SMD LED

Note: Image is for representation purpose only.

Key Specifications

Everything you need to know about 5.5mm Straight LED Light Guide for SMD LED – Press-Fit 2.8mm at a glance.

  • Product Type
    Straight LED Light Guide
  • Length
    5.5mm
  • Mounting Type
    Press-Fit
  • Enclosure Hole Size
    2.8mm
  • Compatibility
    SMD LEDs
  • Light Transmission
    Direct PCB-to-Panel Light Transfer
  • Installation Method
    Tool-Free Press-Fit Installation
  • Material Type
    Optical-Grade Transparent Plastic
  • Guide Style
    Straight
  • Indicator Type
    LED Light Pipe
  • Retention Method
    Friction Fit in Enclosure Hole
  • Application
    LED Status Indicators
  • Suitable For
    PCB-Mounted SMD LEDs
  • Assembly Compatibility
    Electronic Enclosures and Control Panels
  • Design Purpose
    Light Routing from PCB to External Panel Surface
  • Features
    Compact Size, Secure Mounting, Professional Indicator Appearance
  • Applications
    Consumer Electronics, Industrial Equipment, Control Panels, Instrumentation, Embedded Systems
Brand / Vendor Circuitcomps
SKU CC-000888
Category LED Light Guide
