600 Ohm 1.3A 0603 SMD Ferrite Bead
600 Ohm 1.3A 0603 SMD Ferrite Bead
600 Ohm 1.3A 0603 SMD Ferrite Bead
600 Ohm 1.3A 0603 SMD Ferrite Bead
Sunlord

600 Ohm 1.3A 0603 SMD Ferrite Bead

Product SKU: CC-001121
Available:
Only 75 items in stock
75 items in stock
In stock
Pre-order
Out of stock
Incoming: 0 more units expected on
Sunlord UPZ1608U601-1R3TF 600 Ohm 1.3A 0603 SMD Ferrite Bead
View full specs
  • Manufacturer Part No.
    UPZ1608U601-1R3TF
  • Manufacturer
    Sunlord
  • Series
    UPZ
  • Device Type
    Multilayer Chip Ferrite Bead
  • Core Material
    Ferrite
  • Impedance
    600 Ω @ 100 MHz
  • Tolerance
    ±25%
  • Current Rating
    1.3 A
  • DC Resistance (DCR)
    150 mΩ (maximum)
  • Package Size
    0603 (1608 Metric)
  • Mounting Type
    Surface Mount (SMD)
  • Operating Temperature
    −55°C to +125°C
  • Construction
    Multilayer ferrite with internal silver printed electrodes, magnetically shielded structure
  • Operating Function
    High-frequency EMI suppression and noise filtering for power and signal lines
  • Applications
    EMI suppression, power line noise filtering, signal line filtering, consumer electronics, computers and peripherals, communication equipment, LCD TVs and displays, professional cameras, embedded systems, industrial electronics, IoT devices
  • Suitable For
    High-density PCB layouts, automated SMT assembly
  • Features
    600Ω impedance at 100MHz, low 150mΩ DCR, magnetically shielded, multilayer construction, RoHS compliant
  • Function
    Suppresses high-frequency EMI while passing DC and low-frequency signals with minimal loss
  • Electrical Characteristics
    600Ω @ 100MHz, 1.3A rated current, 150mΩ max DCR, −55°C to +125°C
Rs. 3.80
Rs. 4.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Specifications

The Sunlord UPZ1608U601-1R3TF is a high-performance multilayer chip ferrite bead designed to suppress high-frequency electromagnetic interference (EMI) in compact electronic circuits. Featuring an impedance of 600 Ohms at 100MHz, this ferrite bead effectively filters unwanted high-frequency noise while allowing DC and low-frequency signals to pass with minimal loss.

Manufactured using multilayer ferrite technology with internal silver printed electrodes and a magnetically shielded structure, the UPZ1608U601-1R3TF helps reduce crosstalk and improve signal integrity in high-density PCB layouts. With a 1.3A current rating, 150mΩ maximum DC resistance, and a compact 0603 (1608 Metric) package, it is suitable for EMI suppression in consumer electronics, communication devices, industrial equipment, computers, LCD displays, cameras, and embedded systems.

Key Specifications

  • Manufacturer: Sunlord
  • Part Number: UPZ1608U601-1R3TF
  • Series: UPZ
  • Component Type: Multilayer Chip Ferrite Bead
  • Core Material: Ferrite
  • Impedance: 600 Ω @ 100 MHz
  • Tolerance: ±25%
  • Current Rating: 1.3 A
  • DC Resistance (DCR): 150 mΩ (maximum)
  • Package Size: 0603 (1608 Metric)
  • Mounting Type: Surface Mount (SMD)
  • Operating Temperature: −55°C to +125°C

Package Includes

  • 1 x Sunlord UPZ1608U601-1R3TF 600 Ohm 1.3A 0603 SMD Ferrite Bead

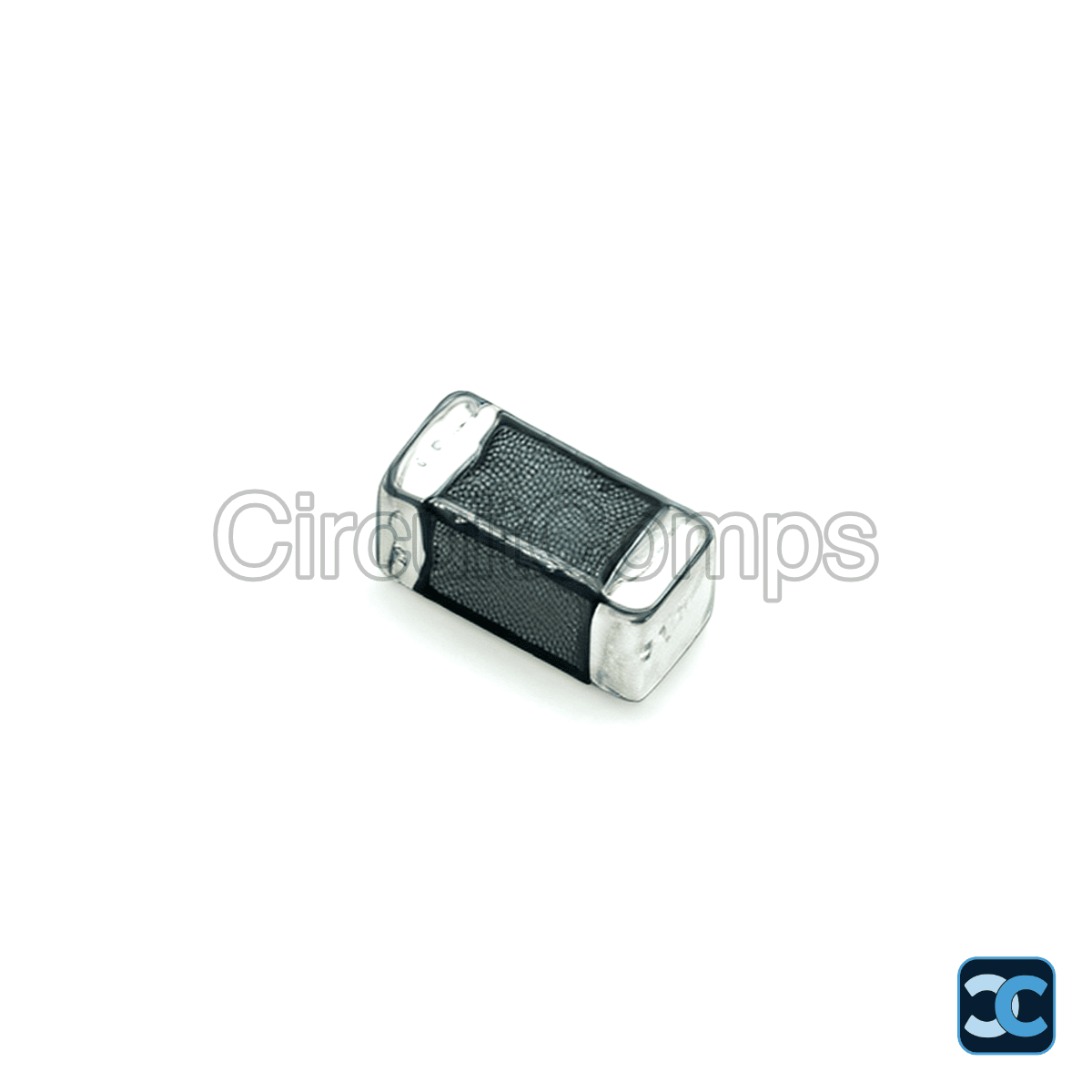

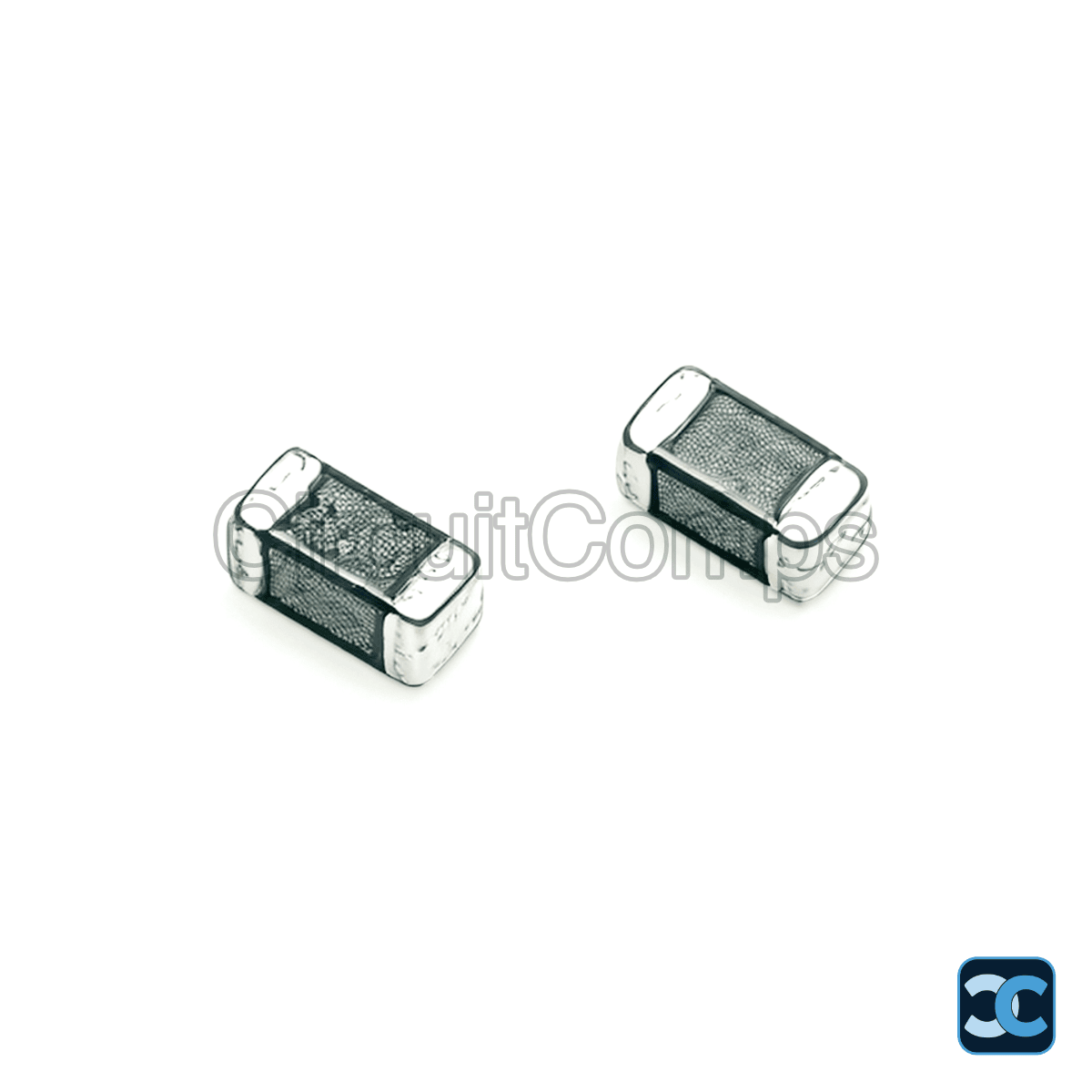

Note: Image is for representation purpose only.

Sunlord UPZ1608U601-1R3TF 600 Ohm 1.3A 0603 SMD Ferrite Bead

Everything you need to know about 600 Ohm 1.3A 0603 SMD Ferrite Bead at a glance.

  • Manufacturer Part No.
    UPZ1608U601-1R3TF
  • Manufacturer
    Sunlord
  • Series
    UPZ
  • Device Type
    Multilayer Chip Ferrite Bead
  • Core Material
    Ferrite
  • Impedance
    600 Ω @ 100 MHz
  • Tolerance
    ±25%
  • Current Rating
    1.3 A
  • DC Resistance (DCR)
    150 mΩ (maximum)
  • Package Size
    0603 (1608 Metric)
  • Mounting Type
    Surface Mount (SMD)
  • Operating Temperature
    −55°C to +125°C
  • Construction
    Multilayer ferrite with internal silver printed electrodes, magnetically shielded structure
  • Operating Function
    High-frequency EMI suppression and noise filtering for power and signal lines
  • Applications
    EMI suppression, power line noise filtering, signal line filtering, consumer electronics, computers and peripherals, communication equipment, LCD TVs and displays, professional cameras, embedded systems, industrial electronics, IoT devices
  • Suitable For
    High-density PCB layouts, automated SMT assembly
  • Features
    600Ω impedance at 100MHz, low 150mΩ DCR, magnetically shielded, multilayer construction, RoHS compliant
  • Function
    Suppresses high-frequency EMI while passing DC and low-frequency signals with minimal loss
  • Electrical Characteristics
    600Ω @ 100MHz, 1.3A rated current, 150mΩ max DCR, −55°C to +125°C
Brand / Vendor Sunlord
SKU CC-001121
Category Ferrite Bead
