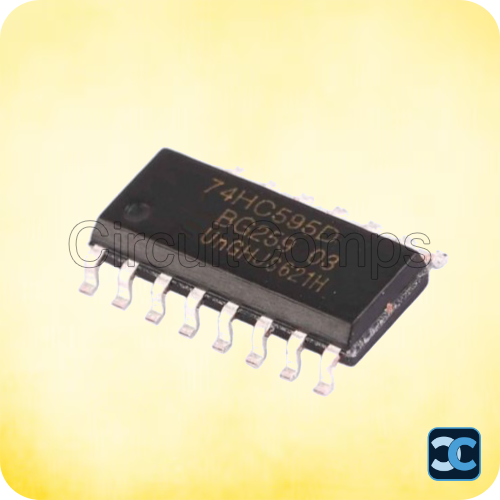

74HC595 8-Bit Shift Register IC | SOIC-16 Serial-to-Parallel – NXP

The 74HC595 from NXP is a high-speed, low-power 8-bit serial-in, serial/parallel-out shift register with a storage register and 3-state outputs. Built using advanced CMOS technology and fully JEDEC-compliant, this device is ideal for applications requiring efficient I/O expansion such as LED displays, keypads, digital drivers, and microcontroller interfaces.

The IC features separate shift and storage register clocks, allowing precise control of data movement. Data shifts on the positive edge of SHCP, and simultaneously, data is latched to outputs using STCP. When both clocks are tied together, the output register updates one cycle behind the shift register, ensuring synchronized operation. With a typical 100MHz shift frequency, it enables fast serial-to-parallel conversion.

The 74HC595 includes an active-LOW asynchronous reset, 8 parallel outputs, and a serial output for cascading multiple ICs, making it suitable for systems requiring expanded output capability.

Features / Specifications

• Manufacturer: NXP

• MPN: 74HC595D

• Package: SOIC-16 (SMD)

• Supply Voltage: 5V

• Supply Current: 70mA

• Total Power Dissipation: 500mW

• Shift Register: 8-bit (serial input, serial/parallel output)

• Shift Frequency: 100MHz typical

• Asynchronous Reset (active LOW)

• 3-State Outputs

• Cascadable using Q7S output

• Operating Temp: –40°C to +125°C

• Applications:

  • LED matrix drivers

  • Display controllers

  • I/O expansion for MCUs (Arduino, PIC, AVR, STM32)

  • Digital automation systems

  • Shift-register based counters & multiplexing

Package Includes:
1 × 74HC595 8-Bit Shift Register – SOIC-16 – NXP

Note: Product images are shown for representation purposes only and may differ from the actual product.
