- BNC Female Jack Right Angle PCB Mount 50 Ohm Connector BNC Female Jack Right Angle PCB Mount 50 Ohm Connector

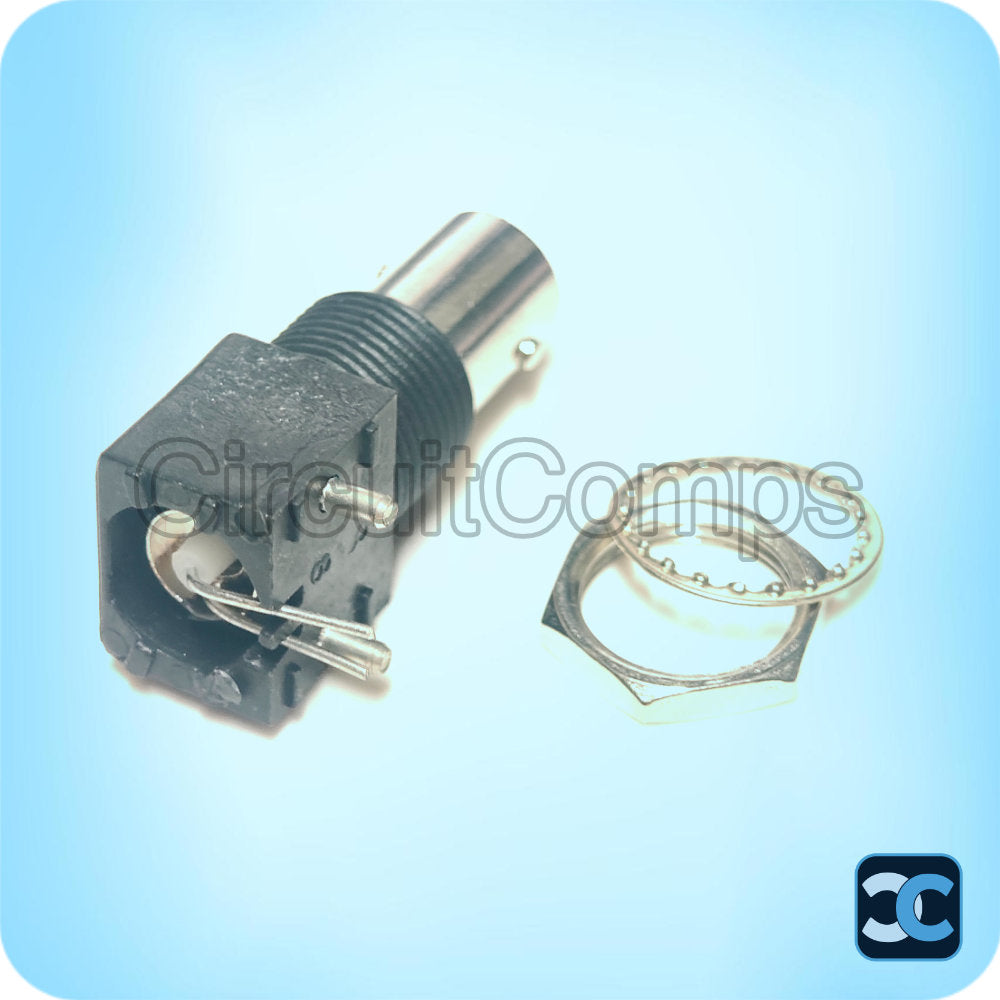

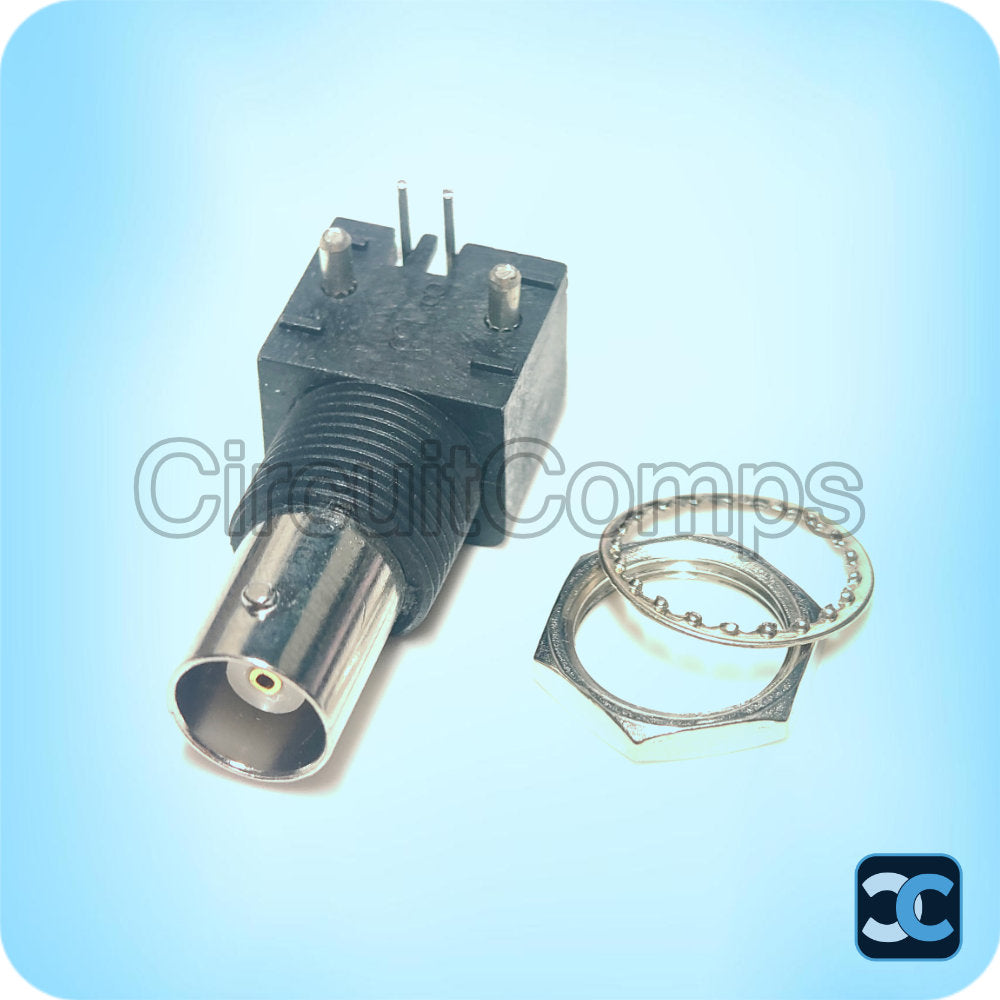

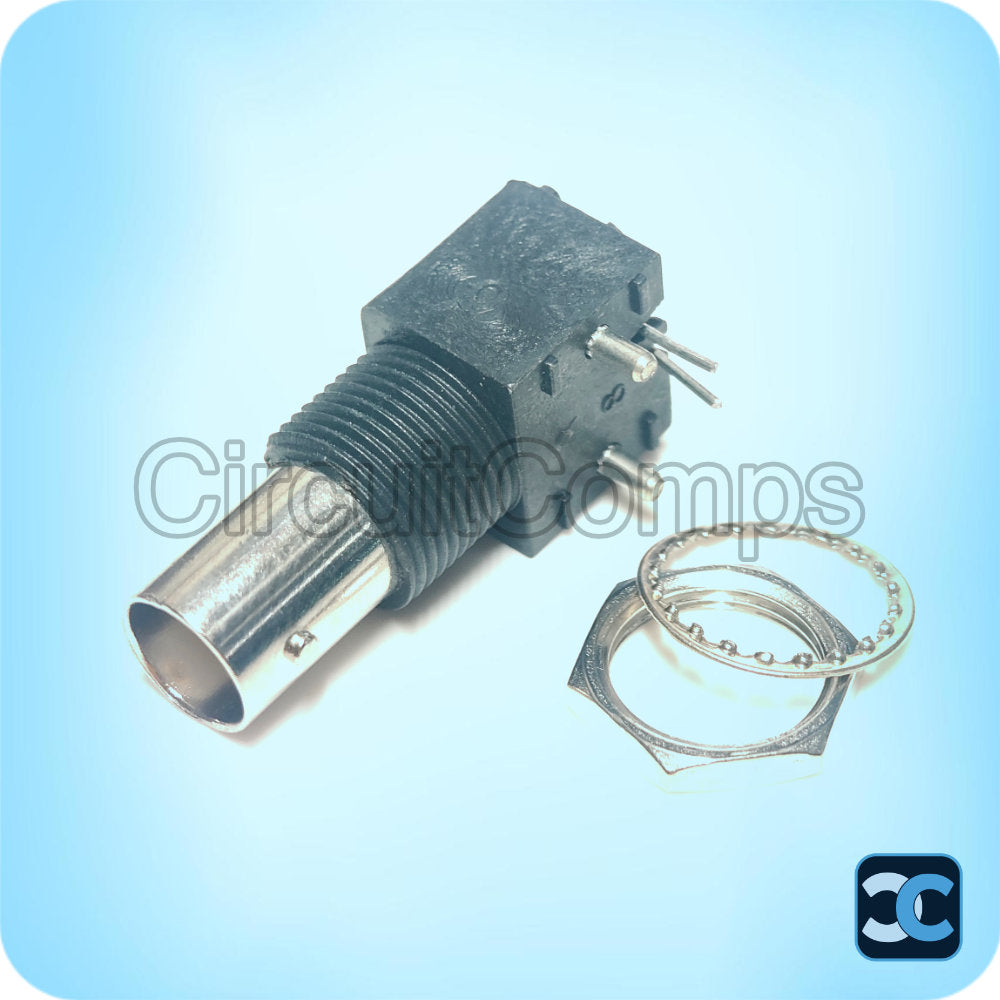

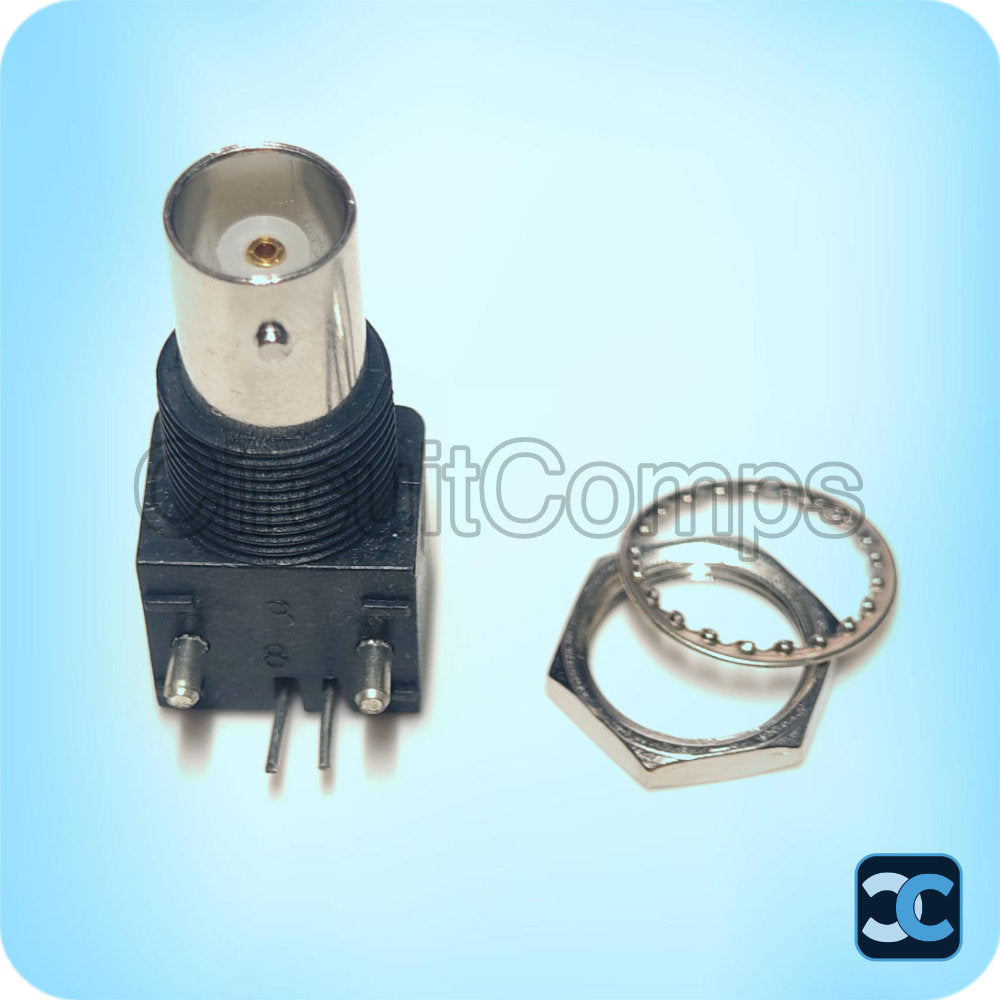

BNC Female Jack Right Angle PCB Mount 50 Ohm Connector
- Description
- Reviews
This right-angle BNC female jack is a PCB mount RF connector designed for reliable signal transmission in high-frequency applications. With a 50-ohm impedance and frequency range up to 4GHz, it is suitable for RF, video, and communication systems.
Featuring a compact 90° design, it saves PCB space while ensuring secure connections through its bayonet coupling mechanism. The connector offers low contact resistance, high insulation resistance, and excellent durability with over 500 mating cycles, making it ideal for professional and industrial use.
Constructed with high-quality materials and designed to withstand harsh environments, it supports applications such as CCTV, broadcast systems, antennas, instrumentation, telecom, and medical equipment.
Package Includes:
1 x BNC Female Jack Right Angle PCB Mount 50 Ohm Connector
Note: Image is for representation purpose only.
