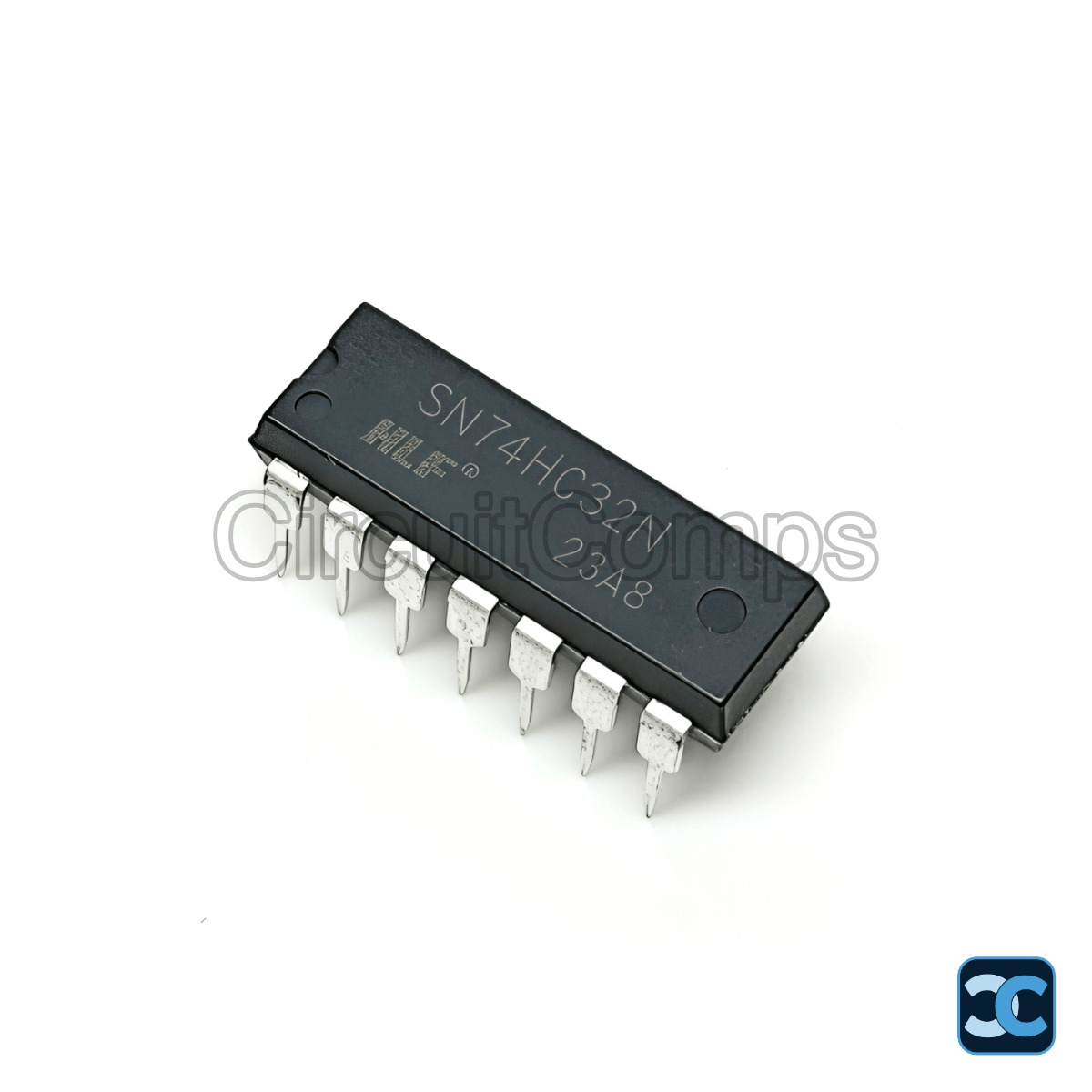

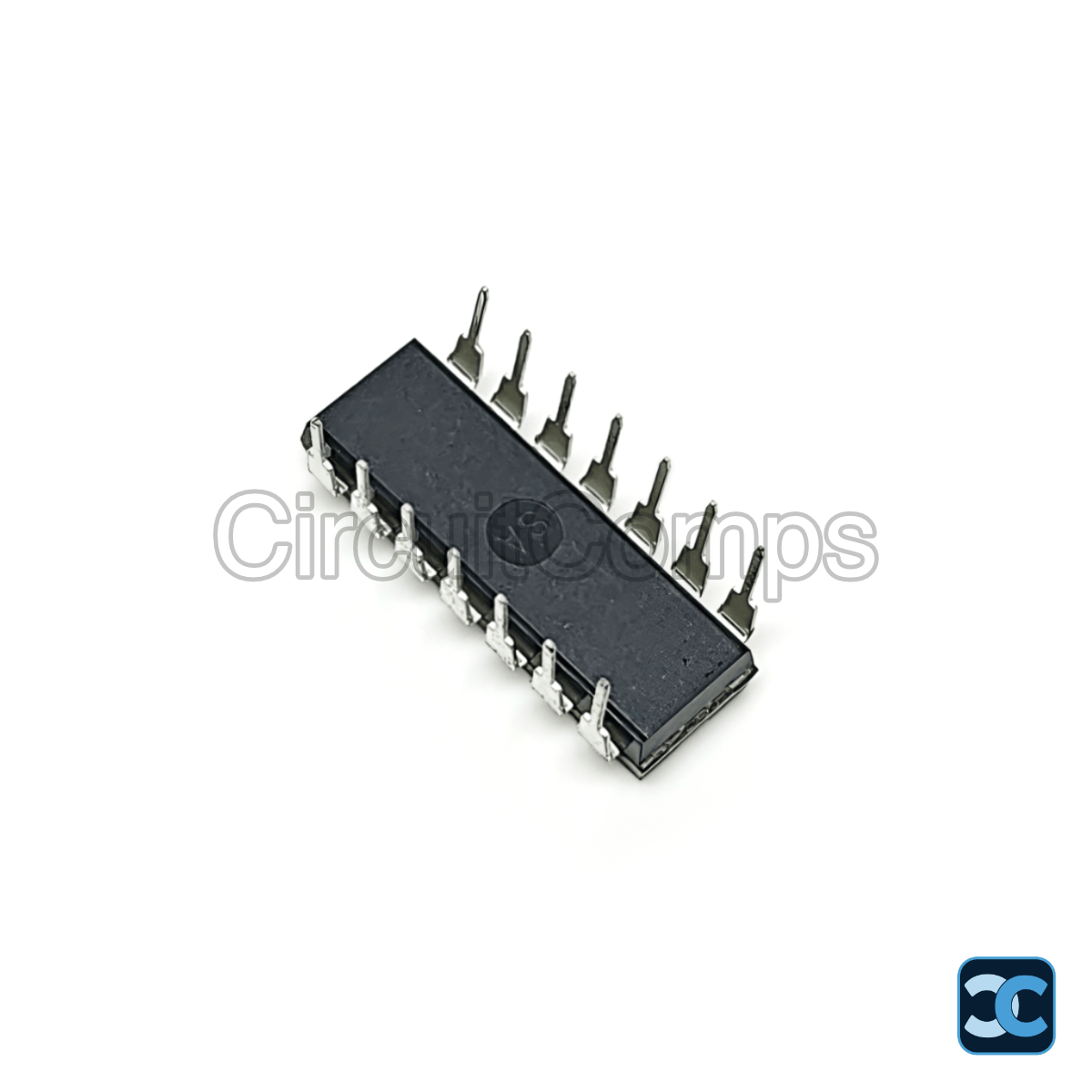

SN74HC32N Quad 2-Input OR Gate 74HC CMOS 14-Pin PDIP

The SN74HC32N Quad 2-Input OR Gate is a cornerstone of digital logic design. As part of the 74HC high-speed CMOS family, it combines the low power consumption of CMOS technology with the high-speed performance required for modern computing and control systems. Featuring four independent OR gates in a single 14-pin PDIP package, it evaluates two binary inputs and produces a High output if either or both inputs are High — making it indispensable for signal combining, boolean logic, and safety interlock circuits.

Key Specifications

• Logic Function: Y = A + B (Quad 2-Input OR Gate)
• Number of Gates: 4 (Independent)
• Package: 14-Pin PDIP (Dual In-Line Package)
• Logic Family: 74HC High-Speed CMOS
• Operating Voltage: 2V to 6V
• Propagation Delay: ~7ns at 6V (typical)
• Operating Temperature: -40°C to +85°C
• Quiescent Current: 20µA maximum
• Mounting Type: Through Hole
• Applications: Signal Combining, Logic Level Shifting, Industrial Automation, Arduino/Raspberry Pi Projects

Package Includes

• 1 x SN74HC32N Quad 2-Input OR Gate 74HC CMOS 14-Pin PDIP

Note: Image is for representation purpose only.
