DB107 1A 1000V Bridge Rectifier – DIP4 Full-Wave Diode Bridge

Product Description:

The DB107 Bridge Rectifier is a compact 1A full-wave diode bridge designed for reliable AC-to-DC conversion in low-power electronic circuits. With a 1000V peak reverse voltage rating, this bridge offers stable performance and protection in a wide range of consumer, hobby, and industrial applications.

Housed in a standard DIP-4 through-hole package, the DB107 integrates four rectifier diodes into a single unit, simplifying PCB design and reducing component count. Its dependable performance, small footprint, and high dielectric strength make it suitable for adapters, small power supplies, chargers, LED drivers, and embedded control systems.

Key Specifications:

• Model: DB107

• Type: Full-Wave Bridge Rectifier

• Package: DIP-4 (Through-Hole)

• Forward Current (IF): 1A

• Peak Reverse Voltage (VRRM): 1000V

• Surge Current Capability: Good for small power loads

• Forward Voltage Drop: Low and efficient

• Configuration: Integrated 4-diode bridge

• Mounting Type: Through-hole

Features:

• Compact and reliable 1A diode bridge

• High 1000V reverse voltage rating

• Simplifies AC–DC conversion circuitry

• Excellent dielectric and thermal stability

• Easy integration with DIP-4 mounting

• Ideal for low-power and embedded applications

Applications:

• AC–DC power conversion

• Adapters and small chargers

• LED drivers and control circuits

• Embedded electronics

• Hobby and DIY power modules

• Consumer and low-power industrial electronics

Package Includes:

1 × DB107 1A 1000V DIP-4 Bridge Rectifier

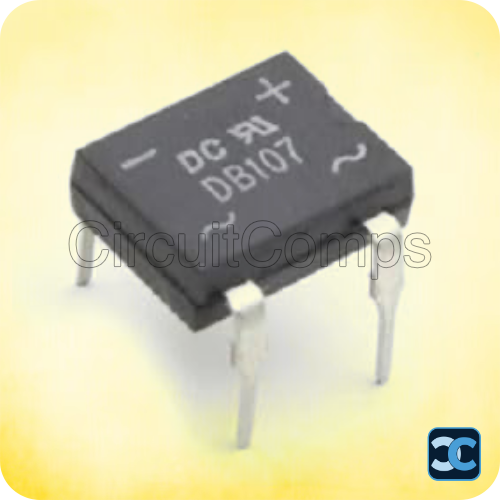

Note: Image is for representation purpose only.
