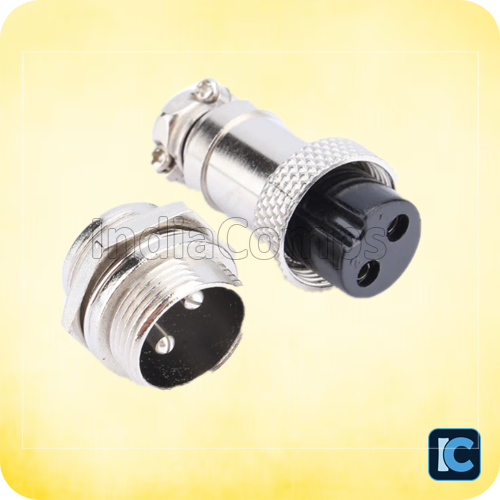

High Quality - 2-Pin Male Female Aviation Connector – 4A, Metal Shell (GX16 Panel Mount/Solder)

This 2-Pin Male Female Aviation Connector (GX16) features a durable metal shell and is ideal for secure electrical connections in various industrial and DIY applications. The male connector is panel mountable, while the female connector is cable mountable, offering flexible integration in your projects.

Specifications:

• Type: GX16 2-Pin Male & Female Aviation Connector

• Rated Current & Voltage: 4A – 125V

• Operating Limit Voltage (AC Vrms): 200V

• Temperature Rating: -60°C to +200°C

• Insulation Resistance (at DC 500V): 2000 MΩ

• Contact Resistance (at DC 1A): 3 MΩ

• Solder Pin Diameter: 1.15 mm

• Shell Material: Stainless steel


Perfect for automation systems, robotics, audio equipment, and power supply interfaces.

Note: Image shown is for representation only.
