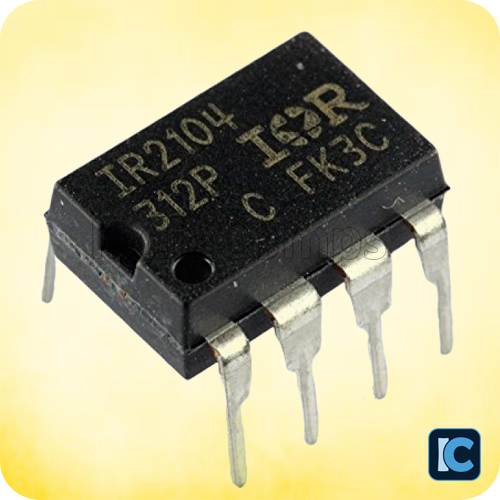

⚡ IR2104 Half Bridge Driver IC – DIP-8 – 600V High-Speed Gate Driver
The IR2104 is a high-voltage, high-speed half-bridge driver IC designed to drive power MOSFETs or IGBTs in high-side and low-side configurations. Housed in a standard DIP-8 package, this IC is ideal for a wide range of power control applications including motor drivers, inverters, switch-mode power supplies (SMPS), and more.
With a floating channel designed for bootstrap operation, the IR2104 enables high-side gate driving up to 600V. It supports a gate drive voltage of 10V to 20V, includes undervoltage lockout (UVLO) for both high and low sides, and is compatible with 3.3V, 5V, and 15V logic inputs—making it extremely versatile for various microcontroller platforms.
✅ Key Features:
-
Floating channel supports high-side operation up to 600V
-
Gate drive supply voltage: 10V to 20V
-
UVLO protection for both high and low side channels
-
Logic level input compatible with 3.3V, 5V, and 15V
-
Cross-conduction prevention logic for safe operation
-
Internally set deadtime for optimized switching
-
Bootstrap operation supported
⚙️ Technical Specifications:
Parameter | Value |
---|---|
Driver Type | Half-Bridge Gate Driver |
Voltage Support | Up to 600V (High-Side) |
Gate Drive Voltage | 10V to 20V |
Logic Compatibility | 3.3V / 5V / 15V |
Package Type | DIP-8 (Through-Hole) |
UVLO Protection | Yes |
Deadtime | Internally set |
Manufacturer | International Rectifier (Infineon) |
Mounting Type | Through-Hole |
🛠️ Applications:
-
Motor control drivers
-
DC-DC and AC-DC converters
-
Class D audio amplifiers
-
Uninterruptible Power Supplies (UPS)
-
Inverters and power inverters
-
SMPS and high-voltage power systems
🖼️ Note: Product images are for reference only and may differ from the actual item.
📦 Package Includes:
1 × IR2104 Half Bridge Driver IC – DIP-8 Package
