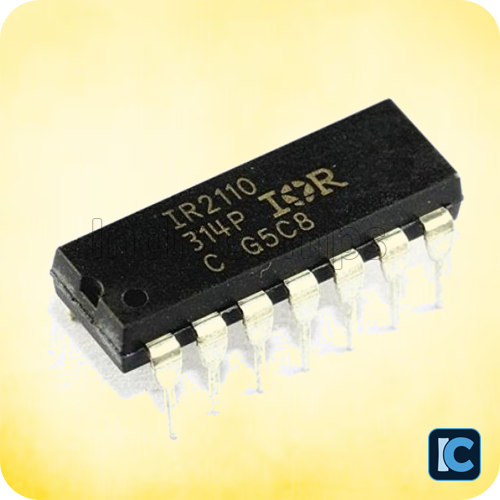

IR2110 High and Low Side Driver IC – DIP-14 Package

⚡ IR2110 High and Low Side Driver IC – DIP-14 Package

The IR2110 is a high-voltage, high-speed power MOSFET and IGBT driver with independent high-side and low-side output channels, designed for half-bridge and full-bridge applications. It supports a floating channel that can drive N-channel power MOSFETs or IGBTs in high-side configurations operating up to 500V or 600V, depending on the model.

Engineered with proprietary HVIC and latch-immune CMOS technologies, the IR2110 ensures rugged operation, fast switching, and protection against cross-conduction and transients. With 3.3V logic compatibility, matched propagation delays, and built-in undervoltage lockout (UVLO), it is ideal for motor control, SMPS, inverters, and other demanding applications.

✅ Features:

• Floating channel designed for bootstrap operation (up to +500V or +600V)

• Gate drive supply range from 10V to 20V

• Undervoltage lockout (UVLO) for both channels

• Separate logic supply voltage from 3.3V to 20V

• Logic input compatible with CMOS and LSTTL (down to 3.3V)

• ±5V offset between logic and power grounds

• Matched propagation delays for high-frequency applications

• High pulse current buffer output stage

• Cycle-by-cycle edge-triggered shutdown

• In-phase outputs with Schmitt-triggered CMOS inputs

📊 Specifications:

🛠️ Applications:

• Inverter circuits

• Motor drives (BLDC, stepper, etc.)

• Switch-mode power supplies (SMPS)

• Uninterruptible power supplies (UPS)

• High-side/low-side MOSFET and IGBT control

• DC-DC converters

🖼️ Note:

Product images are shown for illustrative purposes only and may differ from the actual product.

Refer to the IR2110 IC Datasheet in the downloads section for detailed technical specifications.

📦 Package Includes:

1 × IR2110 High and Low Side Driver IC – DIP-14 Package
