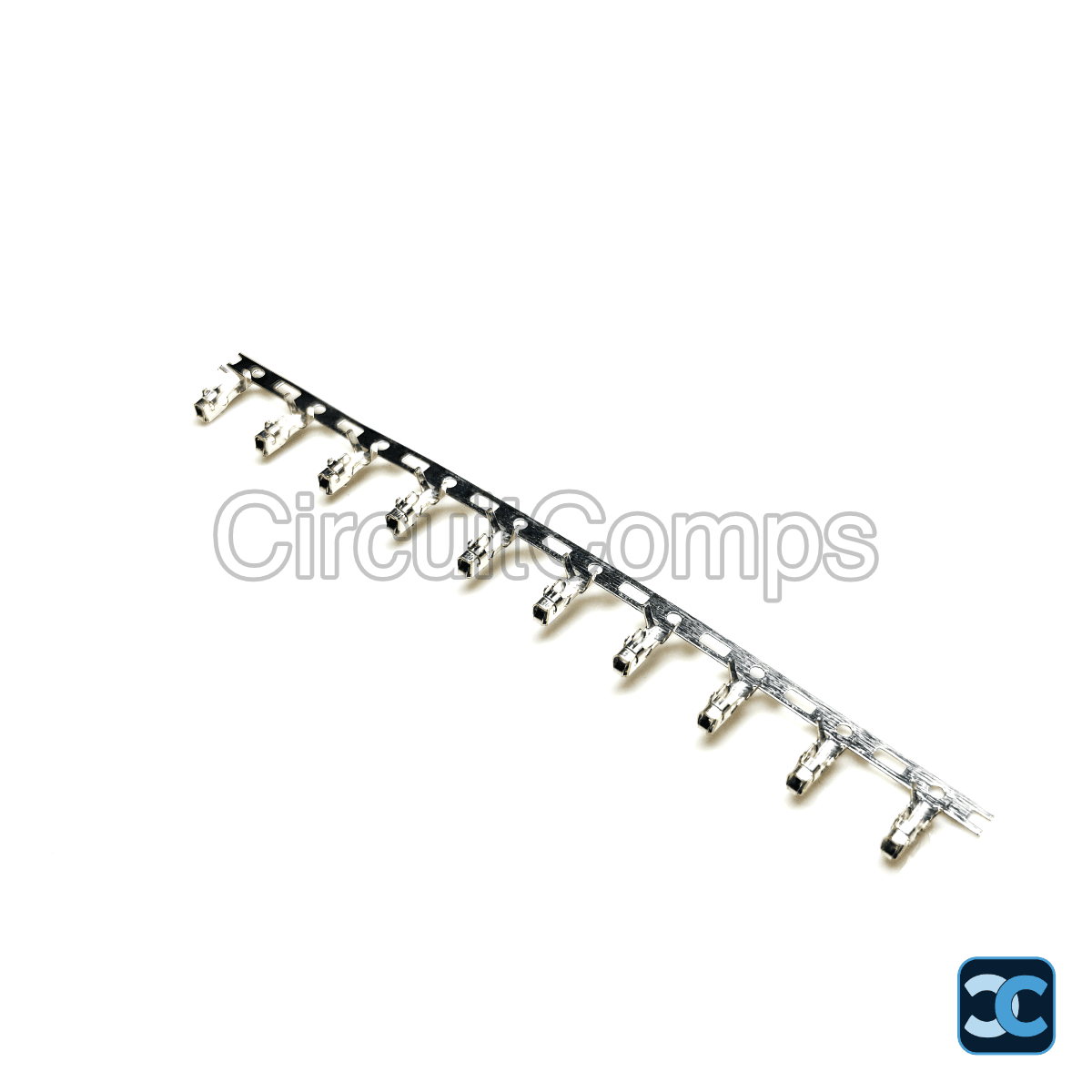

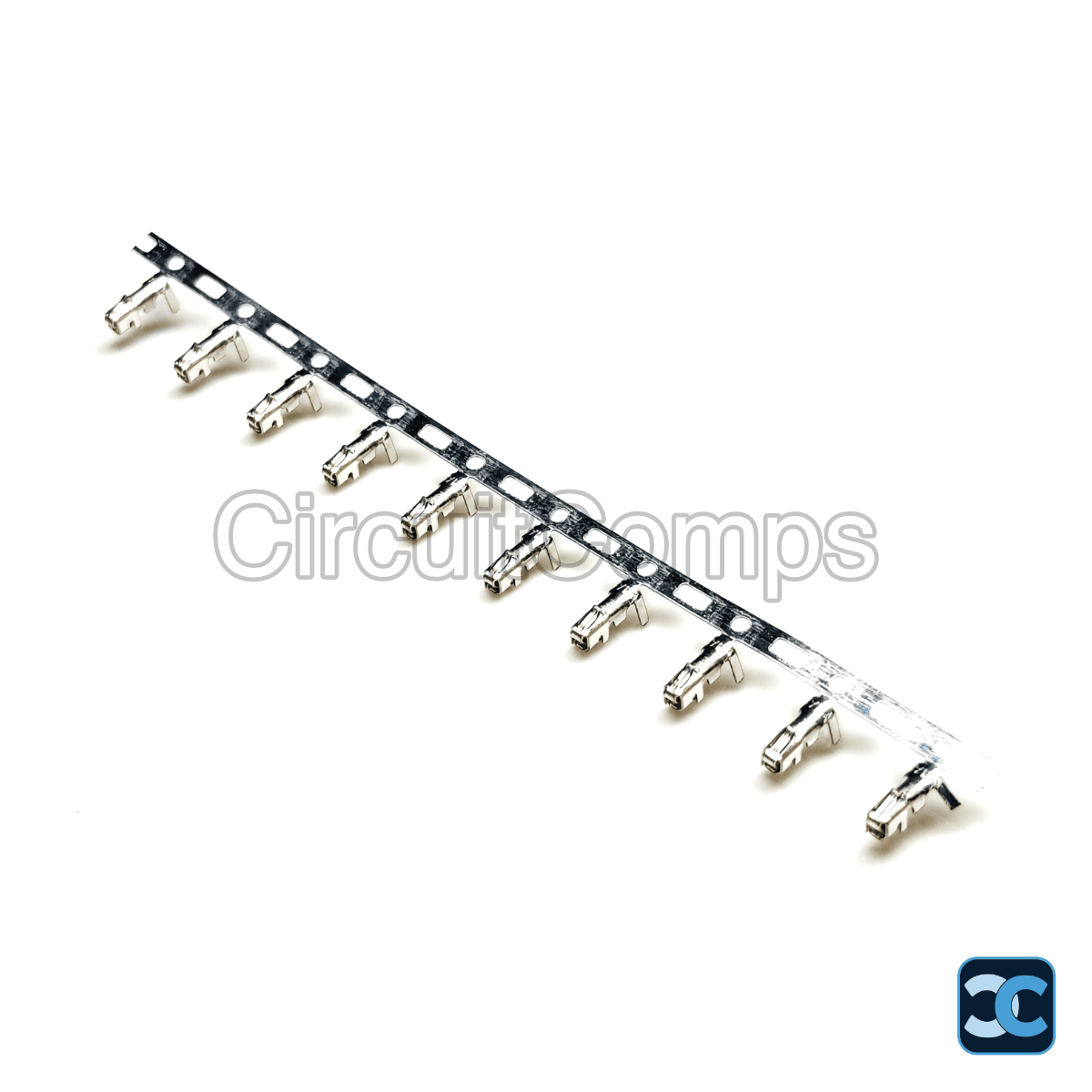

JST-XH Female Crimp Terminal Contact – 22 to 28 AWG Wire

The JST-XH Series (2515) Female Crimp Terminal Contact is a precision-made receptacle contact designed for use with JST XH series connector housings. Manufactured from phosphor bronze with tin plating, it delivers excellent conductivity, low contact resistance, and a strong, reliable crimp connection for 22–28 AWG wire. Compatible with 2.54 mm pitch JST XH and Molex connector housings, it is ideal for wire harness assembly across a wide range of electronics applications.

Key Specifications

• Series: JST XH (2515)
• Connector Type: Female Crimp Terminal Contact
• Contact Gender: Female (Receptacle)
• Termination Method: Crimp
• Contact Material: Phosphor bronze
• Contact Plating: Tin
• Wire Size Range: 22 AWG – 28 AWG
• Current Rating: 3 A
• Voltage Rating: 250 V
• Maximum Contact Resistance: 20 mΩ
• Operating Temperature: −25°C to +85°C
• Length: 6 mm
• Approximate Weight: 1 g
• Compatible With: JST XH 2515 connector housings, 2.54 mm pitch JST or Molex connectors

Package Includes

• 1 x JST-XH Female Crimp Terminal Contact (22–28 AWG)

Note: Image is for representation purpose only.
