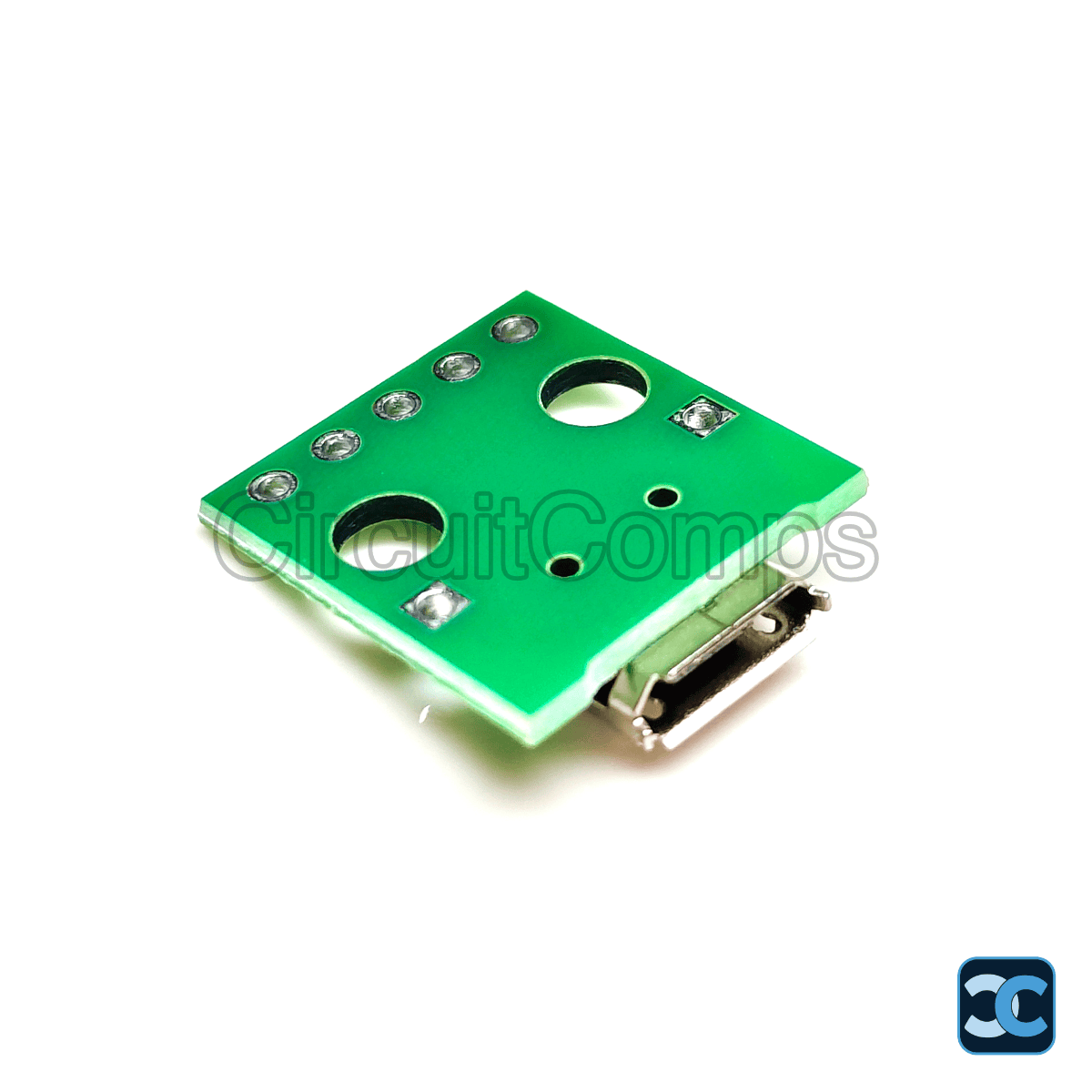

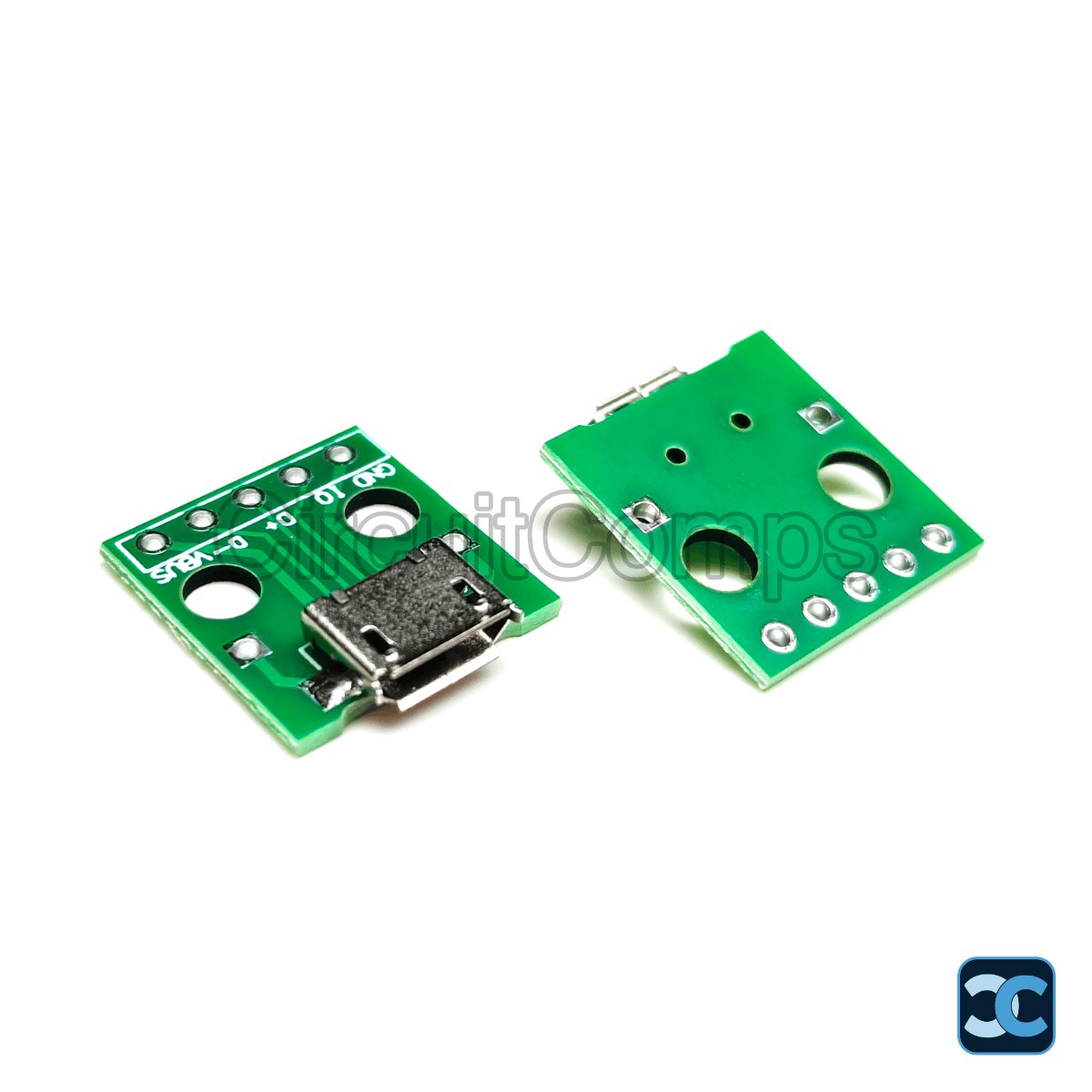

MCU Micro USB Female 5-Pin Breakout Board 5V Power Supply Module for Breadboard

The MCU Micro USB Female 5-Pin Breakout Board is a compact USB interface module that simplifies connecting USB power and data lines to breadboards and custom electronic projects. Featuring a Micro USB Female connector with USB OTG support, this breakout board exposes all five USB pins — VCC, D+, D−, ID, and GND — through standard 2.54mm spaced header pads.

Its compact 15 × 13mm PCB size makes it ideal for embedded systems, Arduino projects, DIY electronics, prototyping, and PCB development. The onboard mounting holes allow secure installation, while the clearly labeled pinout ensures quick and reliable connections. Whether you need a 5V USB power source for prototype circuits or access to USB communication signals, this breakout board provides a simple and reliable solution.

Key Specifications

• Connector Type: Micro USB Female
• Interface: USB OTG
• USB Pins: VCC, D−, D+, ID, GND
• Output Voltage: 5V (USB Supply)
• Pin Spacing: 2.54 mm (0.1 inch)
• PCB Dimensions: 15 × 13 mm
• Mounting Hole Size: M3
• PCB Color: Blue
• Mounting Type: Through-Hole Breakout Board
• Applications: Breadboards, Arduino, DIY Electronics, USB Power Distribution, Embedded Systems, Prototype Development

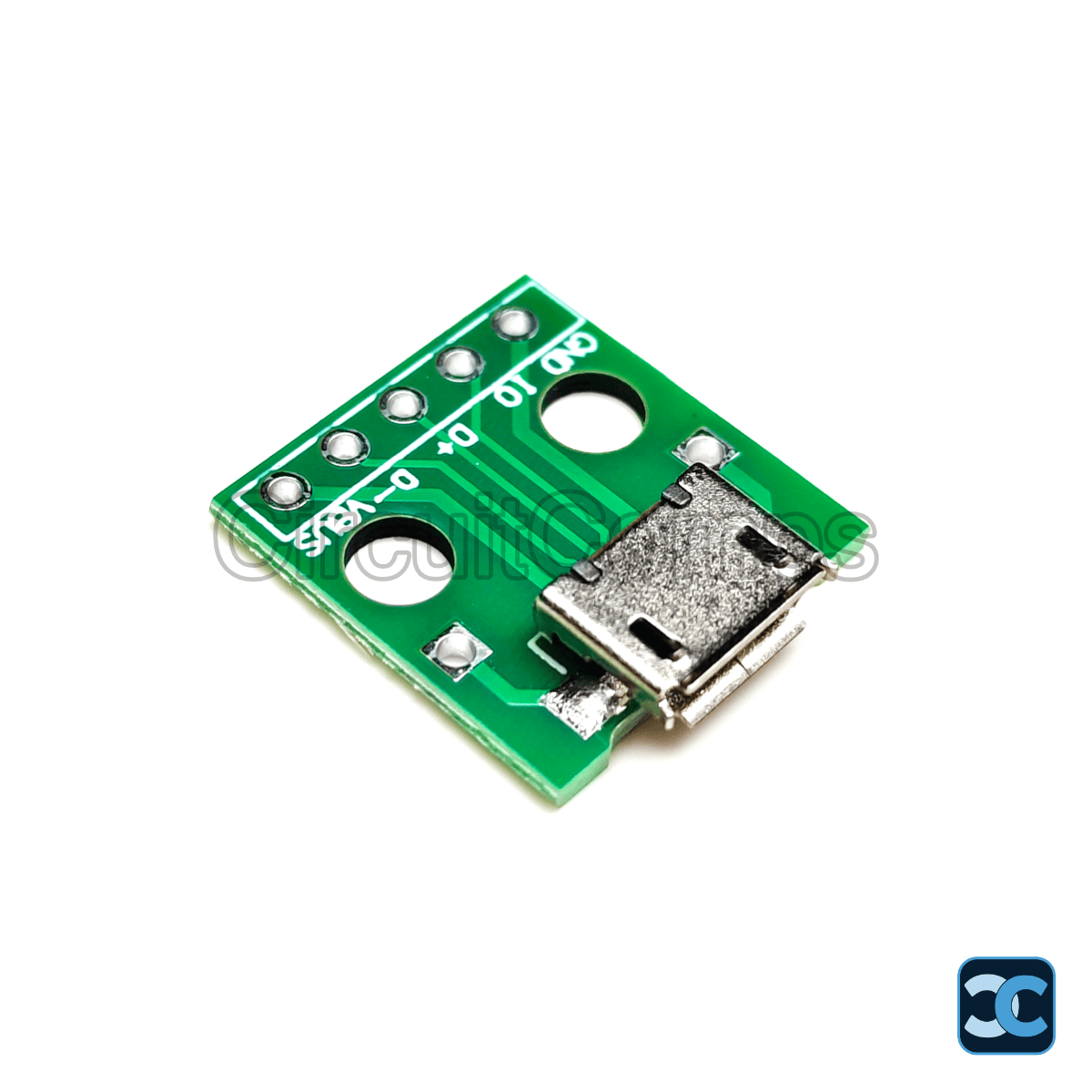

Pin Configuration

• VCC – 5V USB Power
• D− – USB Data Negative
• D+ – USB Data Positive
• ID – USB OTG Identification Pin
• GND – Ground

Package Includes

• 1 x MCU Micro USB Female 5-Pin Breakout Board 5V Power Supply Module

Note: Image is for representation purpose only.
