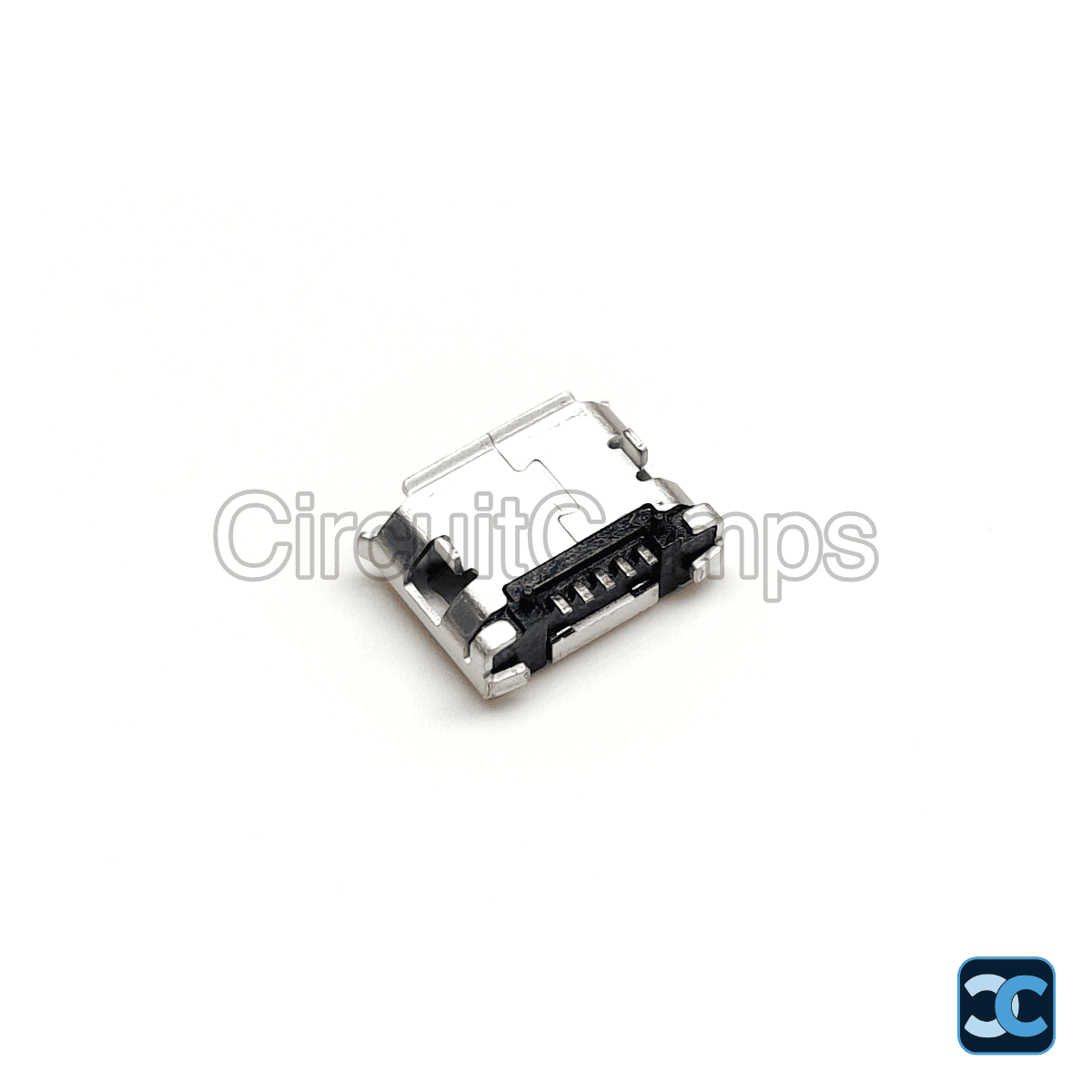

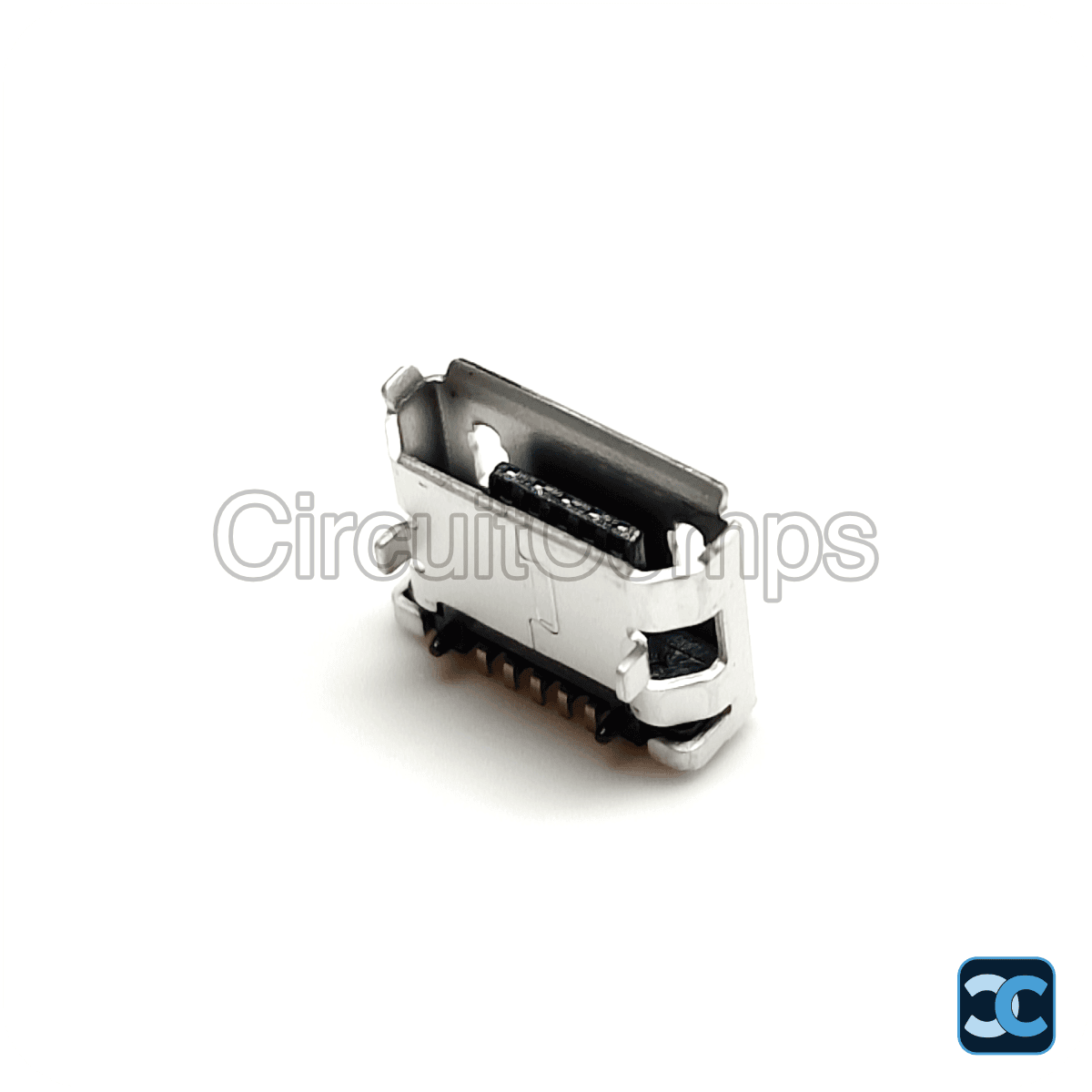

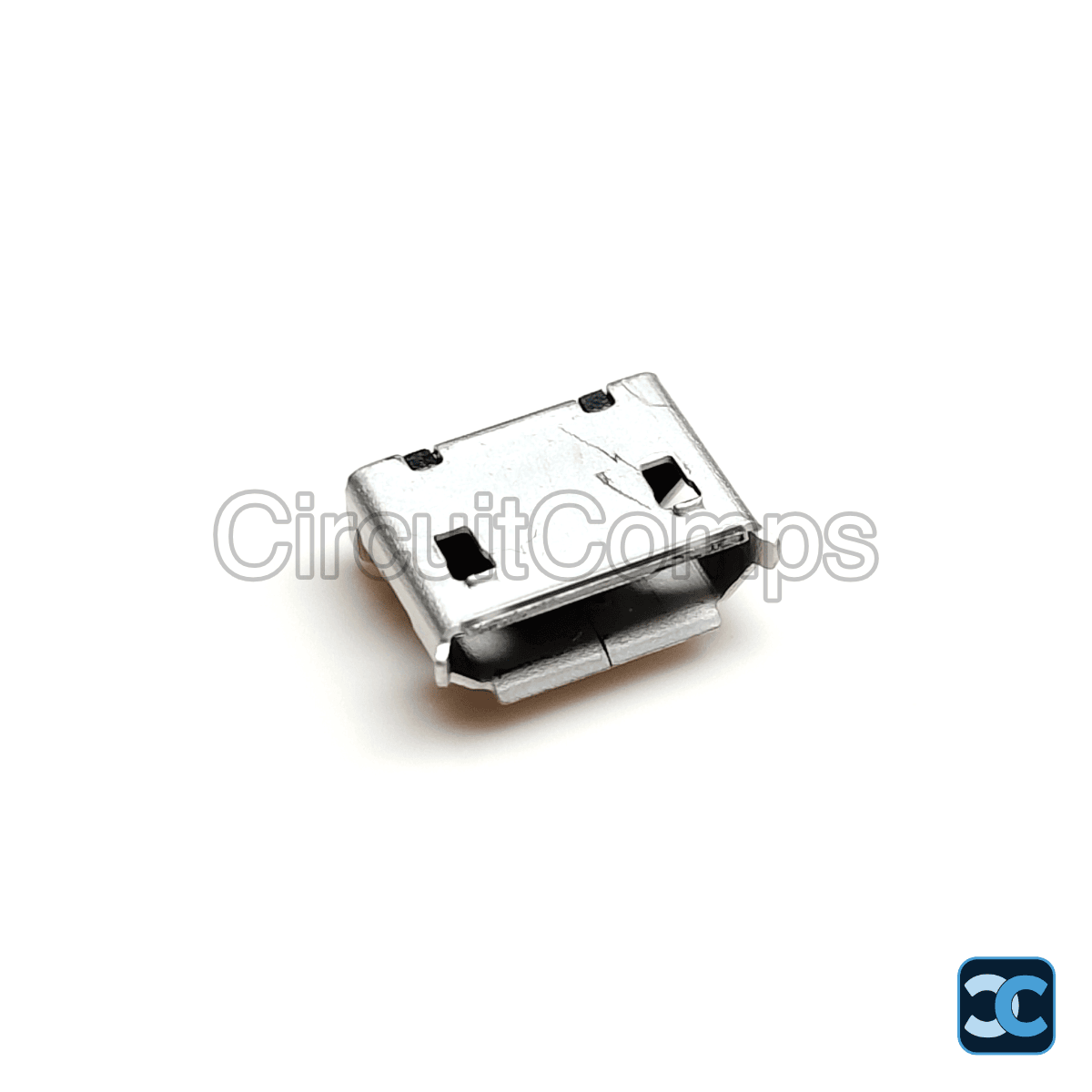

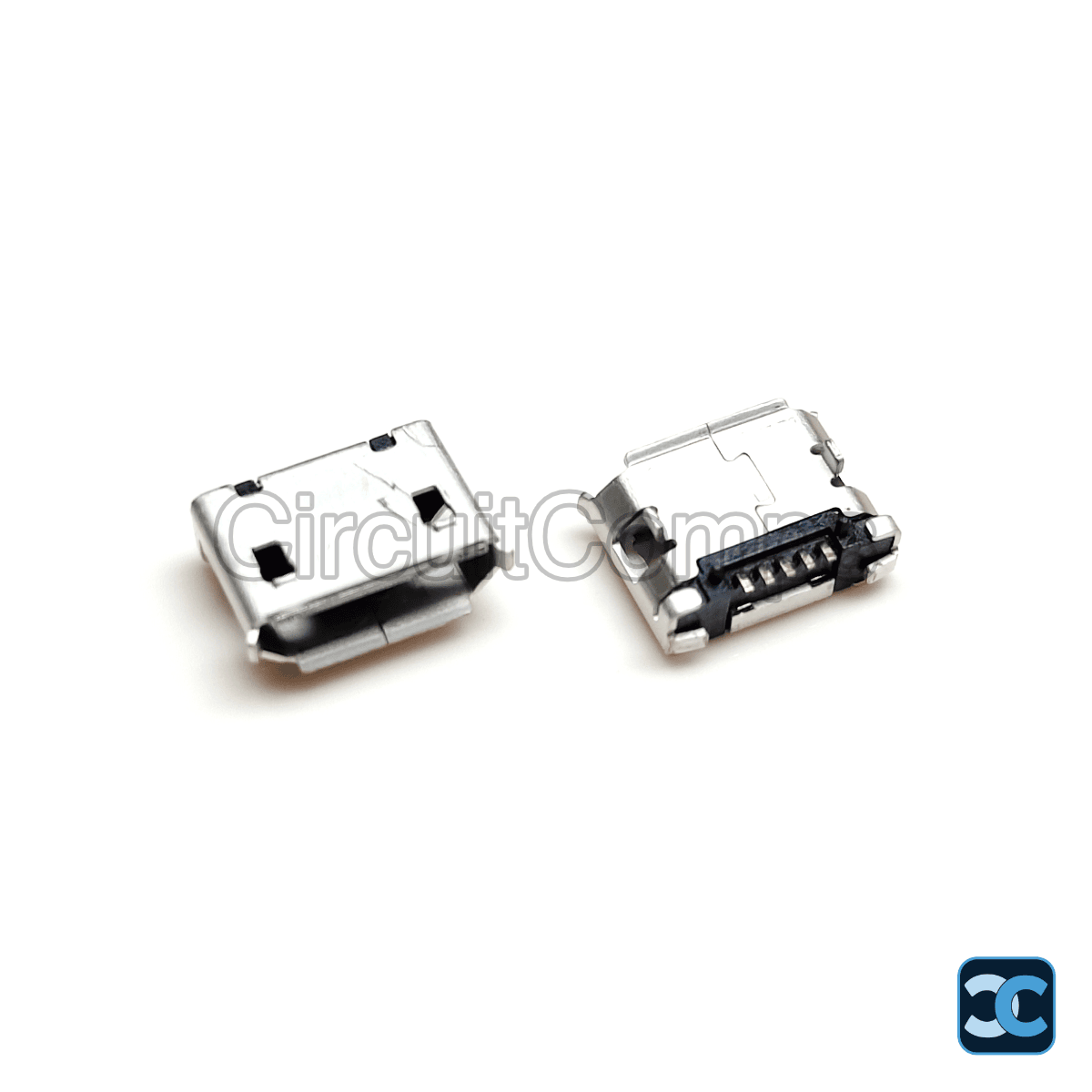

Micro USB Type B Female SMD Connector with Through Hole Support Legs 5 Pin

The Micro USB Type B Female SMD Connector with Through Hole Support Legs is a compact and robust PCB-mount connector designed for reliable USB power and data connections. It combines surface-mount electrical contacts with reinforced through-hole support legs, ensuring excellent soldering strength and enhanced durability against repeated cable insertions.

Designed for modern electronic devices, this 5-pin Micro USB connector supports charging and USB data communication while maintaining a compact footprint suitable for high-density PCB layouts. With a mating life exceeding 5,000 insertion cycles, low contact resistance, and excellent insulation performance, it is ideal for consumer electronics, embedded systems, development boards, and repair applications.

Key Specifications

• Connector Type: Micro USB Type B Female
• Number of Pins: 5
• Mounting Style: SMD with Through-Hole Support Legs
• Rated Withstand Voltage: AC 500V (50Hz) for 1 minute
• Contact Resistance: 30 mΩ to 50 mΩ
• Insulation Resistance: 100 MΩ
• Operating Temperature: −20°C to +85°C
• Durability: >5,000 insertion/removal cycles
• Approximate Weight: 1 g

Package Includes

• 1 x Micro USB Type B Female SMD Connector with Through Hole Support Legs 5 Pin

Note: Image is for representation purpose only.
