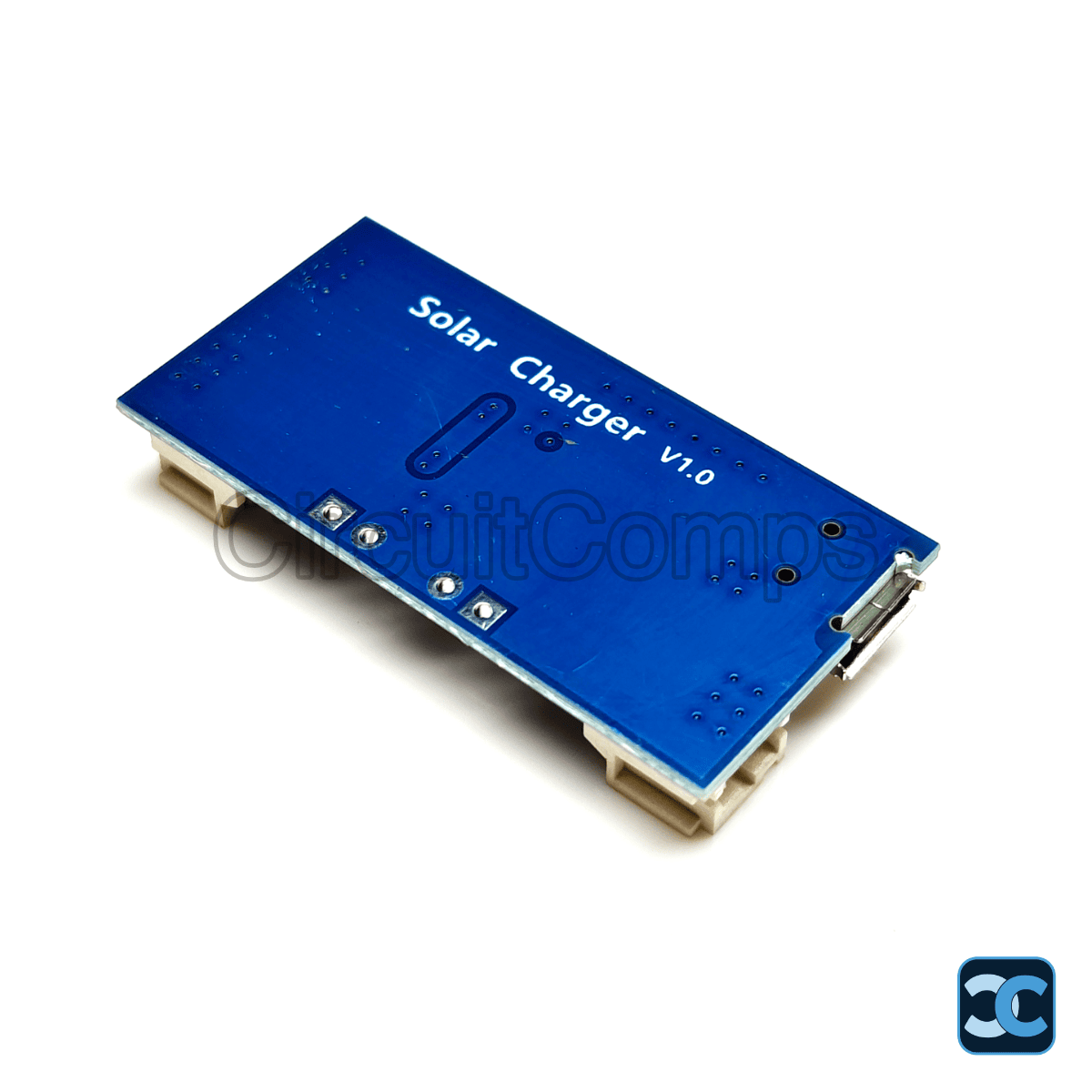

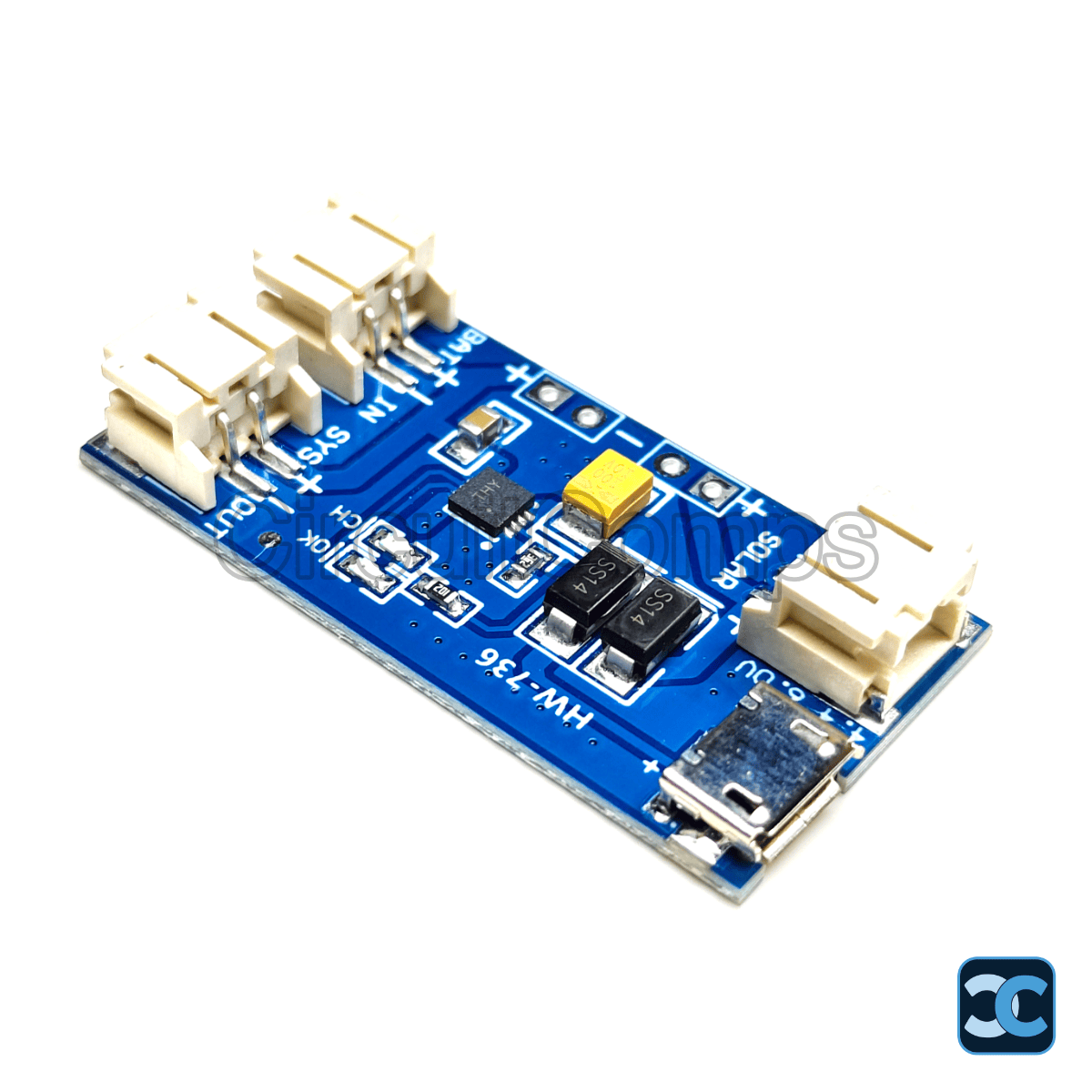

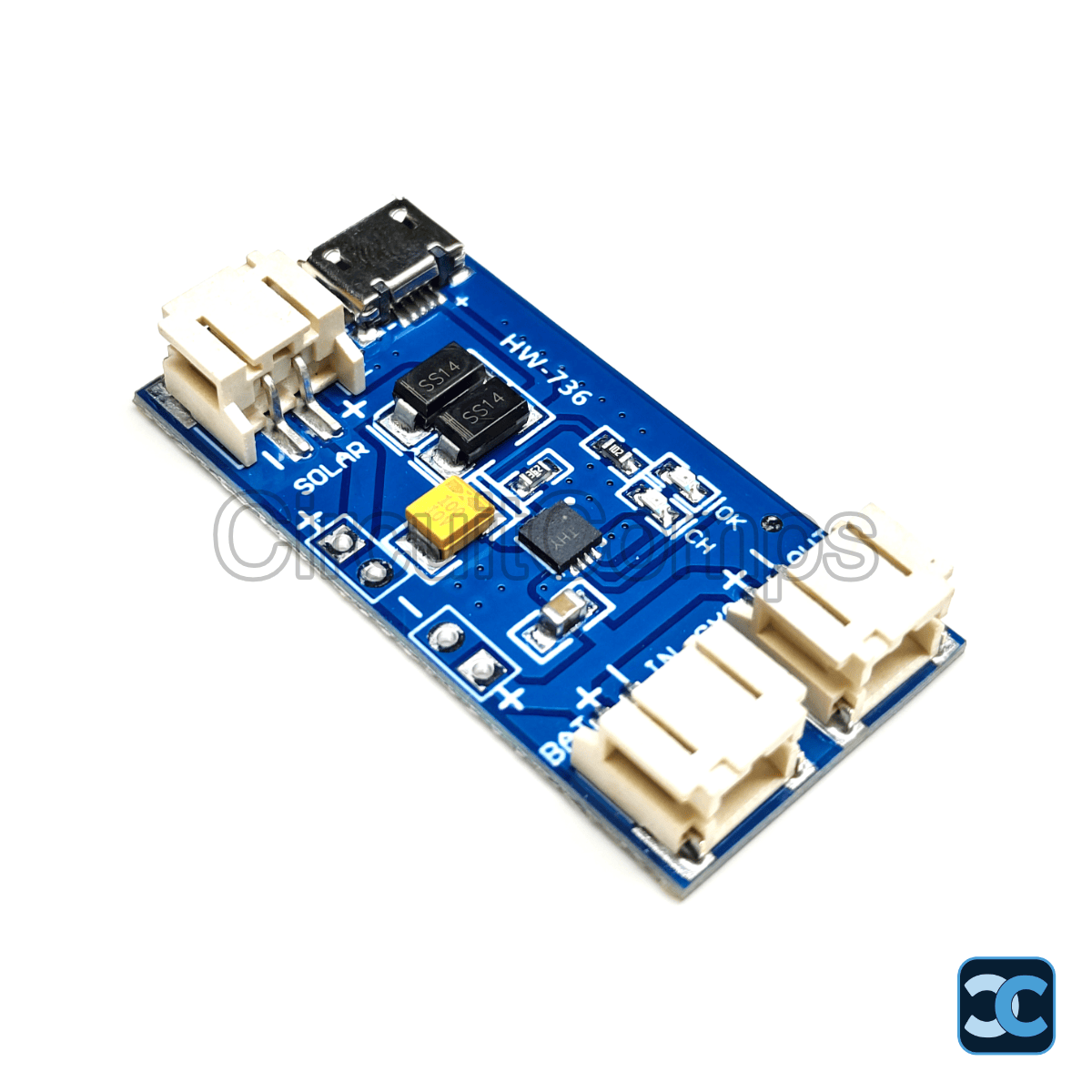

Mini Solar LiPo Charger Board CN3065 500mA with Micro USB and JST Connector

Circuitcomps

Mini Solar LiPo Charger Board CN3065 500mA with Micro USB and JST Connector

Name: Mini Solar LiPo Charger Board CN3065 500mA with Micro USB and JST Connector
Brand: Circuitcomps
SKU: CC-001137
Price: 83.0 INR
Availability: InStock

Product SKU: CC-001137

Available:

Only 5 items in stock

5 items in stock

In stock

Pre-order

Out of stock

Manufacturer Part No.

CC-001137
Charging IC

CN3065
Device Type

Solar LiPo Battery Charger Module
Battery Type

Single-cell Lithium-ion / LiPo (3.7V)
Solar Input Voltage

4.4V – 6V
USB Input

Micro USB
Maximum Charging Current

500 mA
Output Voltage

4.2V
Maximum Output Current

1 A
Battery Connector

2-Pin JST (PH2.0 compatible)
Charging Indicator

Red LED = Charging, Green LED = Fully Charged
Protection

Short-circuit protection
Dimensions

39 × 19 mm
Approximate Weight

5 g
Operating Function

Charges single-cell 3.7V Li-ion/LiPo batteries from solar panel or Micro USB input
Applications

Solar-powered projects, LiPo battery charging, IoT devices, portable electronics, DIY electronics, Arduino, ESP32 battery-powered systems, remote sensor nodes, battery backup systems, educational electronics
Suitable For

Photovoltaic solar panels (4.4–6V), single-cell LiPo/Li-ion batteries, portable and off-grid applications
Features

CN3065 IC, dual input (solar + Micro USB), 500mA charging, JST connector, LED status indicators, short-circuit protection, compact form factor
Function

Provides safe and efficient charging of single-cell LiPo batteries from solar or USB power sources
Electrical Characteristics

4.4–6V solar input, 500mA max charge current, 4.2V output, 1A max output current

Rs. 83.00

~~Rs. 90.00~~

Description
Specifications
Reviews

The Mini Solar LiPo Charger Board is a compact and efficient battery charging module based on the CN3065 lithium battery charge management IC. It is designed to safely charge a single-cell 3.7V Lithium-ion or Lithium Polymer (LiPo) battery from either a solar panel or a Micro USB power source.

Supporting a solar input voltage of 4.4V to 6V, the board maximizes energy transfer from photovoltaic panels while delivering a charging current of up to 500mA. It features a convenient 2-pin JST battery connector, onboard LED charging status indicators, and built-in short-circuit protection — making it ideal for solar-powered electronics, IoT devices, portable equipment, and DIY battery-powered projects.

Key Specifications

Charging IC: CN3065
Battery Type: Single-cell Li-ion / LiPo (3.7V)
Solar Input Voltage: 4.4V – 6V
USB Input: Micro USB
Maximum Charging Current: 500 mA
Output Voltage: 4.2V
Maximum Output Current: 1 A
Battery Connector: 2-Pin JST (PH2.0 compatible)
Charging Indicator: Red LED = Charging, Green LED = Fully Charged
Protection: Short-circuit protection
Dimensions: 39 × 19 mm
Approximate Weight: 5 g

Package Includes

1 x Mini Solar LiPo Charger Board CN3065 with Micro USB and JST Connector

Note: Image is for representation purpose only.
