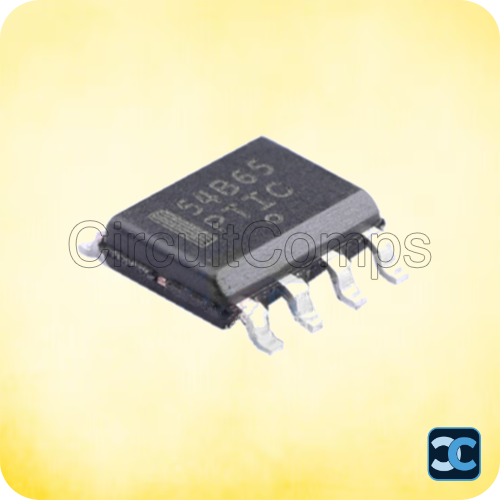

NCP1654BD65R2G Power Factor Controller IC – CCM PFC – OnSemi – SOIC-8

The NCP1654BD65R2G from ON Semiconductor is a high-performance Continuous Conduction Mode (CCM) Power Factor Controller IC designed for PFC step-up pre-converter applications. Operating in fixed-frequency PWM mode with real-time current control, this controller enhances power quality and meets international IEC61000-3-2 standards for harmonic performance.

Housed in a compact SOIC-8 package, the NCP1654BD65R2G simplifies the design of efficient PFC circuits, reducing the number of external components required. The IC features strong ±1.5A gate-drive capability, enabling fast and reliable switching of high-power MOSFETs or IGBTs. With its low startup and shutdown currents, integrated oscillator options, and multiple protection mechanisms, the NCP1654 provides a robust and energy-efficient solution for modern power supply designs.

Ideal for power adapters, industrial power supplies, LED drivers, consumer electronics, and any system requiring high-efficiency front-end PFC.

Features / Specs

• Supply Voltage (VCC): −0.3V to +20V continuous, 25V transient

• Drive Capability: ±1.5A source/sink (totem-pole driver)

• Startup Current: < 75µA

• Shutdown Current: < 400µA

• Operating Temperature: −40°C to +125°C

• Max Junction Temperature: 150°C

• Package: SOIC-8

• Fixed-frequency PWM operation (65/133/200kHz oscillator options)

• Average-current CCM PFC control

• Fast dynamic response

• Internally trimmed reference for accuracy

• Soft-start function for smooth startup

• Undervoltage lockout with hysteresis

• Latching PWM control for cycle-by-cycle current limiting

Integrated Protection Features

• Overvoltage protection

• Undervoltage detection

• Brown-out detection

• Inrush current detection

• Overcurrent limitation

• Overpower protection

Package Includes

1 × NCP1654BD65R2G Power Factor Controller IC – SOIC-8

Note: Product images are for representation purposes only and may differ from the actual product.
